Microscope Objective HC PL APO 10x/0,40 CS2

Objective HC PL APO 10x/0,40 CS2 has a magnification of 10X and a numerical aperture of 0.4mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 2.56mm and a FN of 25.

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL APO 10x/0,40 CS2
HC PL APO 10x/0,40 CS2
HC PL APO 10x/0,40 CS2
HC PL APO 10x/0,40 CS2
HC PL APO 10x/0,40 CS2
HC PL APO 10x/0,40 CS2

Technical Specs

Article Number 11506424
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism A
Field Number (FN) 25
Free Working Distance (WD in mm) 2.56
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DIC, TL-DF, FLUO
Numerical Aperture 0.4
Objective Thread M25
Objective Type PLAN APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2

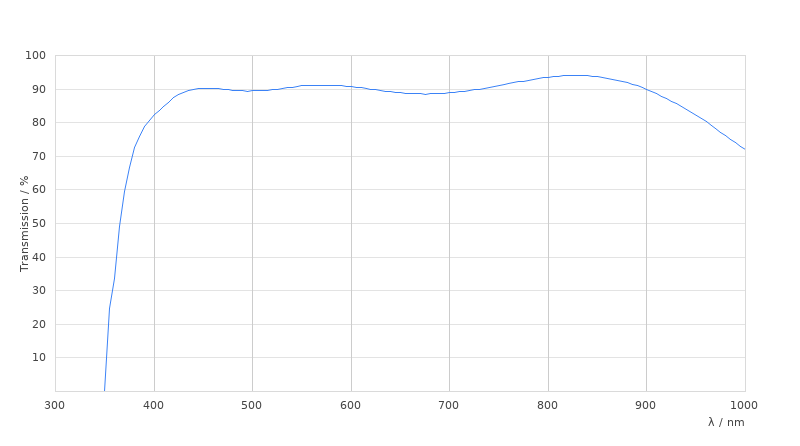

Transmission UV (365nm)
