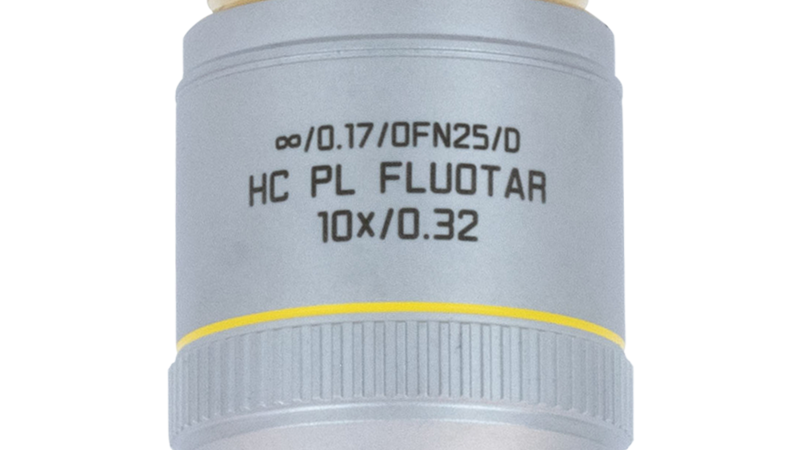

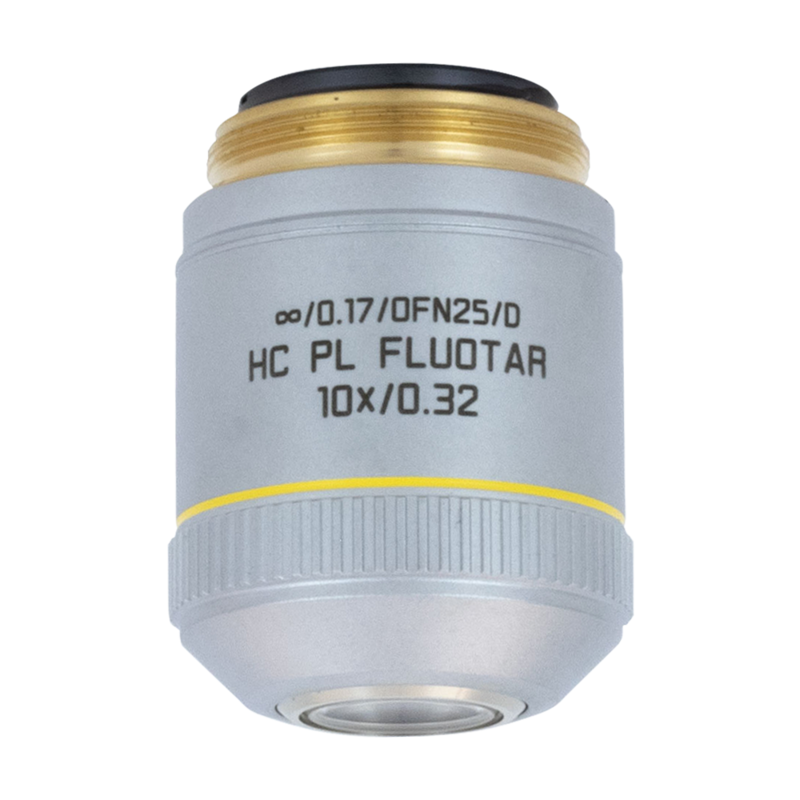

Microscope Objective HC PL FLUOTAR 10x/0,32
Objective HC PL FLUOTAR 10x/0,32 has a magnification of 10X and a numerical aperture of 0.32mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 11.2mm and a FN of 25.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Article Number | 11506431 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | D |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 11.2 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 10⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO |
| Numerical Aperture | 0.32 |
| Objective Thread | M25 |
| Objective Type | PL FLUOTAR |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | AFC suitable |
| Techniques | |
| Transmission | UV (340nm) |
