Microscope Objective HC PL IRAPO 40x/1,10 W motCORR
<p>Objective HC PL IRAPO 40x/1,10 W motCORR has a magnification of 40X and a numerical aperture of 1.1mm. For use in water immersion material environment and attached with an objective thread of M25 having a free working distance of 0.63mm and a FN of 25.</p>
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Article Number | 11506433 |
|---|---|
| Correction Ring (CORR) | motCORR |
| Coverglass | With |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 0.63 |
| Immersion | Water |
| Iris Diaphragm | Without |
| Magnification | 40⨉ |
| Contrasting Methodes | TL-BF, FLUO |
| Numerical Aperture | 1.1 |
| Objective Thread | M25 |
| Objective Type | PLAN APO |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | MotCorr, MP, Waterdispenser |

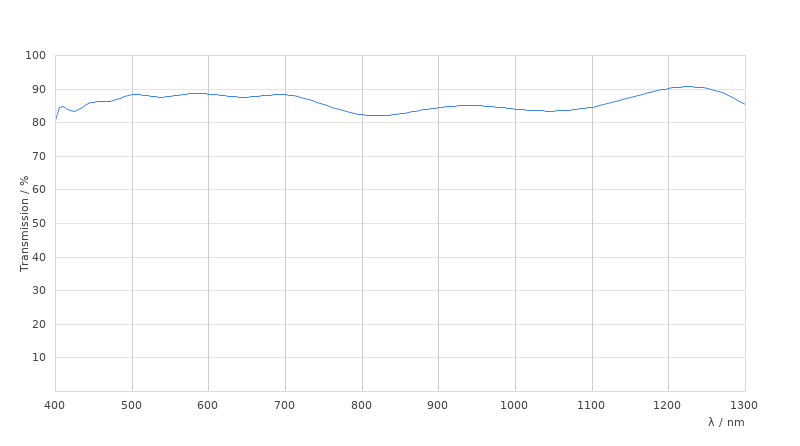

| Transmission | IR (up to 1300nm) |
