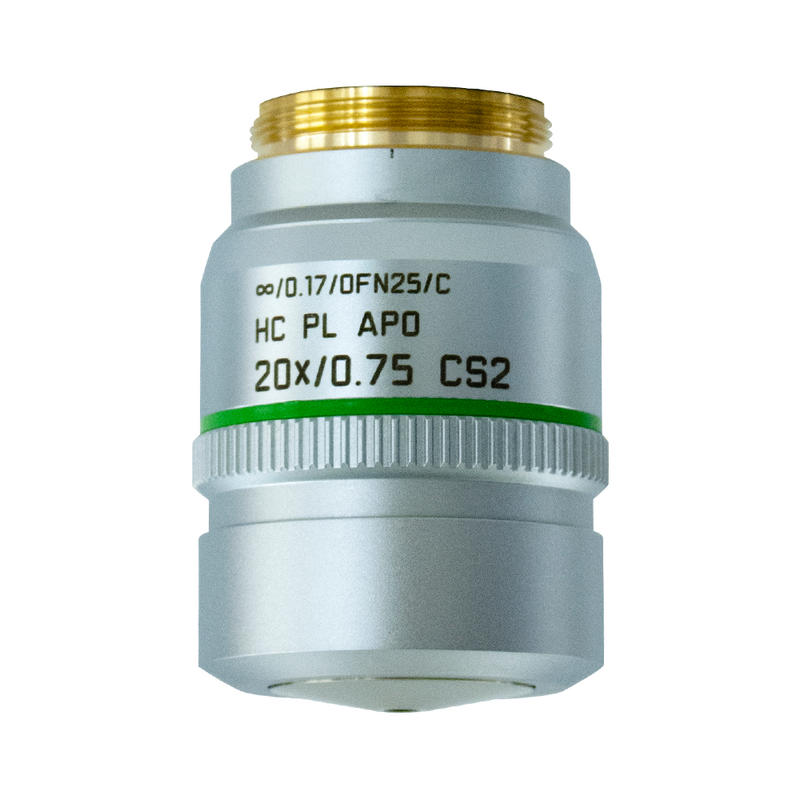

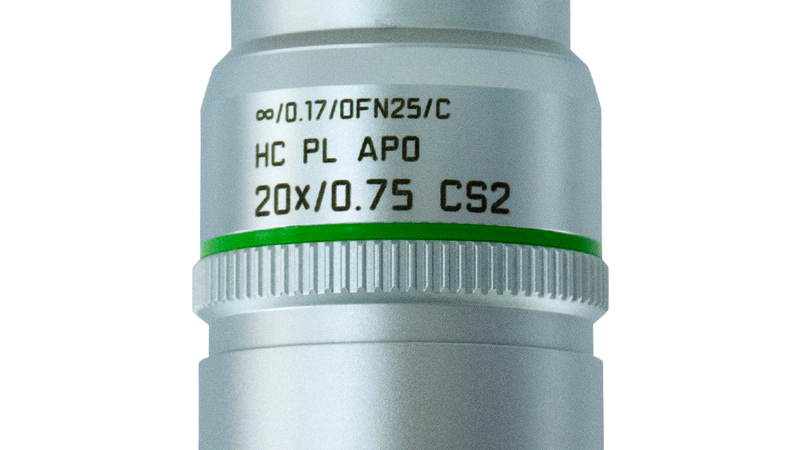

HC PL APO 20x/0,75 CS2

HC PL APO 20x/0,75 CS2
Numerical Aperture 0.75
Suitable for AFC (Adaptive Focus Control) YES
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism C
Field of View (FOV in mm) 25
Immersion DRY
Iris Diaphragm 0
Spring Loaded NO

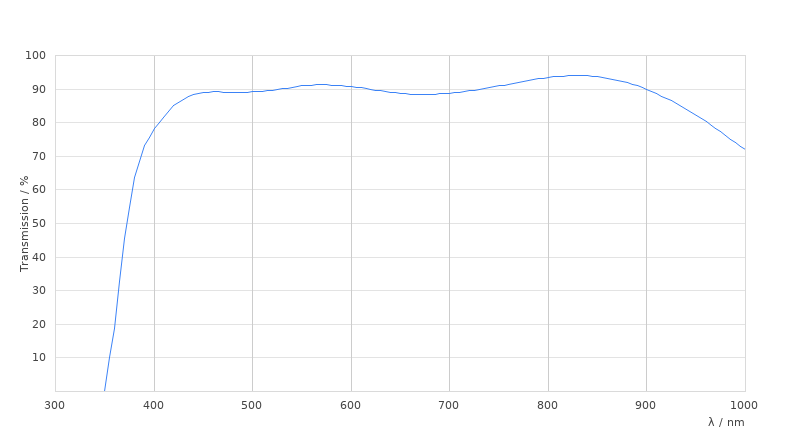

Transmission UV (365nm)
Magnification 20
Objective Thread M25
Free Working Distance (WD in mm)0.62
Objective Type PLAN APO
Article Number 11506517
