HC PL APO 50x/0,90 CRYO CLEM

Article Number 11506520
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.28
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.9
Objective Thread M25
Objective Type PLAN APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission UV (340nm)

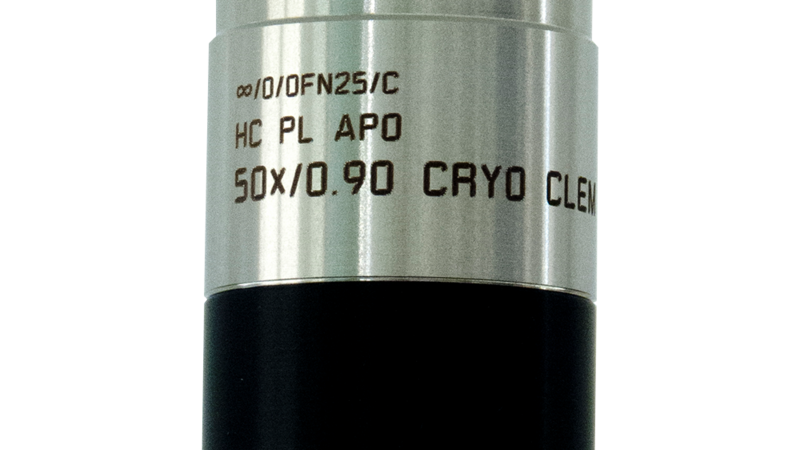

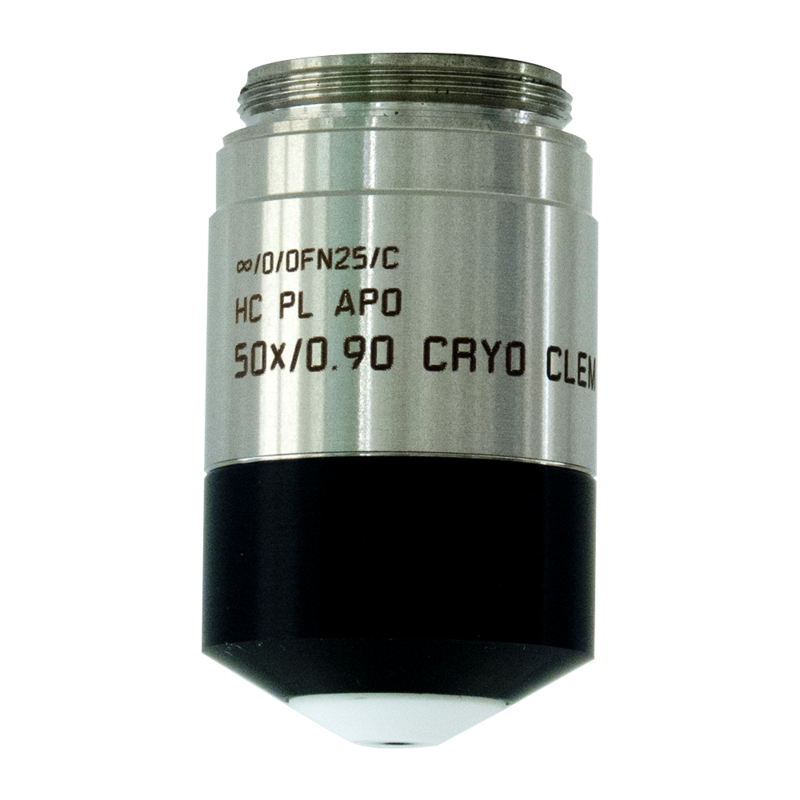

Figure

HC PL APO 50x/0,90 CRYO CLEM

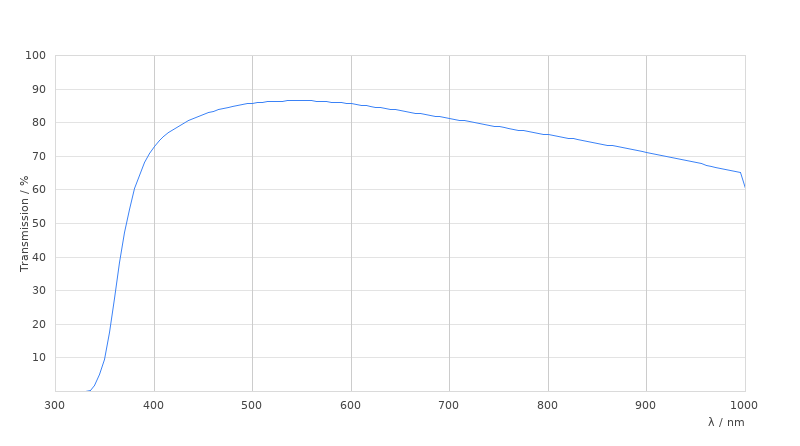

Transmission Curve

HC PL APO 50x/0,90 CRYO CLEM

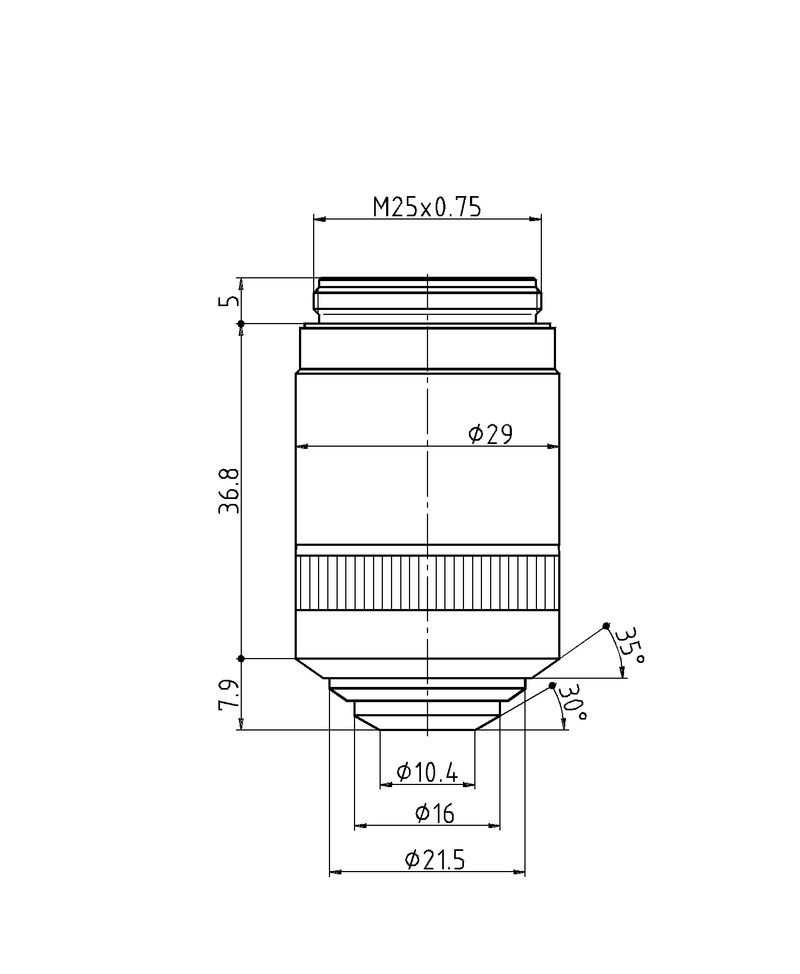

Dimension Sheet

HC PL APO 50x/0,90 CRYO CLEM
