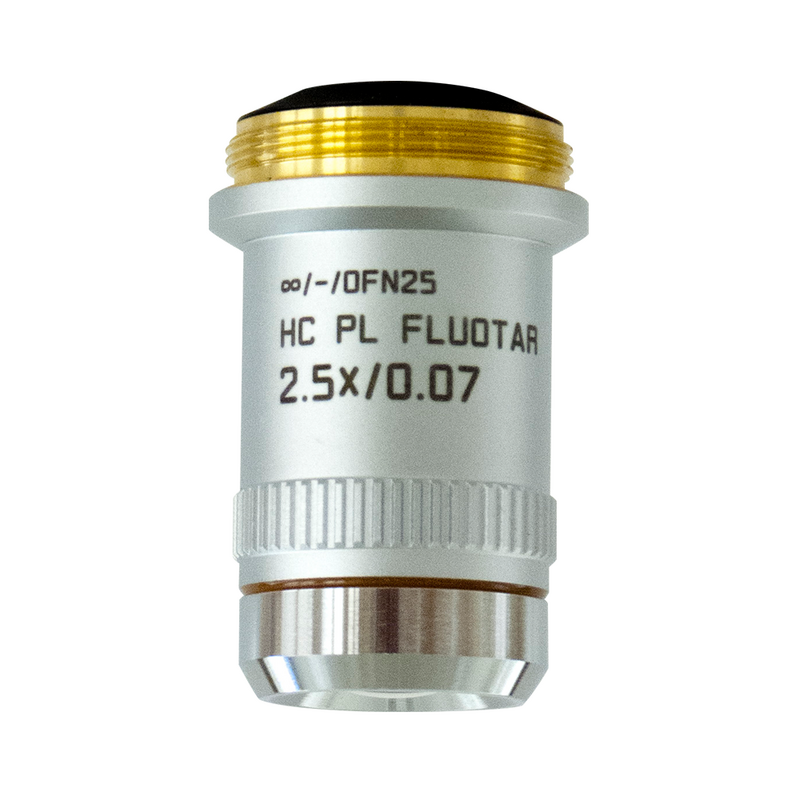

HC PL FLUOTAR 2,5x/0,07

Article Number 11506523
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 9.2
Immersion Dry
Iris Diaphragm Without
Magnification 2.5⨉
Contrasting Methodes TL-BF, TL-P, FLUO
Numerical Aperture 0.07
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques LightSheetIllumination
Transmission -

Figure

HC PL FLUOTAR 2,5x/0,07

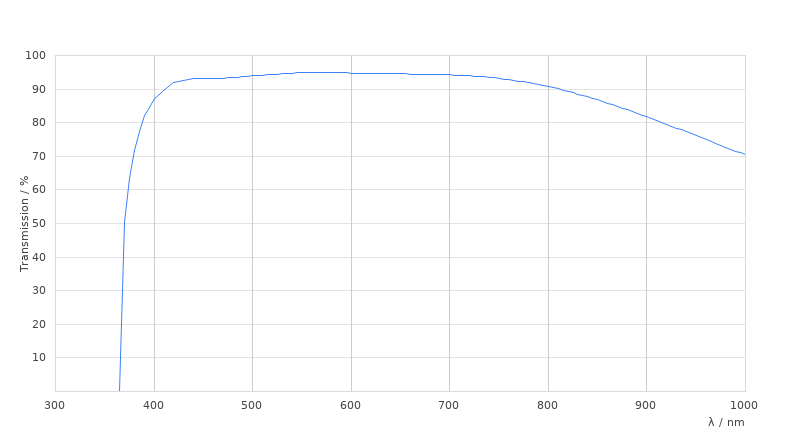

Transmission Curve

HC PL FLUOTAR 2,5x/0,07

Dimension Sheet

HC PL FLUOTAR 2,5x/0,07
