HC APO L 20x/0.95 IMM

Article Number 11507702
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism H
Field Number (FN) 20
Free Working Distance (WD in mm) 1.95
Immersion IMM incl BABB
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 0.95
Objective Thread M32
Objective Type APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques MP
Transmission UV (365nm)

Figure

HC APO L 20x/0.95 IMM

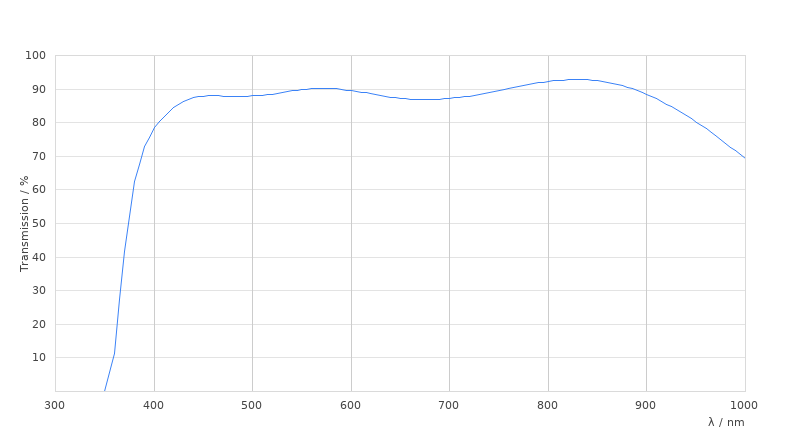

Transmission Curve

HC APO L 20x/0.95 IMM

Dimension Sheet

HC APO L 20x/0.95 IMM
