| Article Number | 11507703 |
|---|---|
| Correction Ring (CORR) | motCORR |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 20 |
| Free Working Distance (WD in mm) | 6 |
| Immersion | IMM |
| Iris Diaphragm | Without |
| Magnification | 25⨉ |
| Contrasting Methodes | TL-BF, FLUO |
| Numerical Aperture | 1 |
| Objective Thread | M32 |
| Objective Type | HC FLUOTAR L VISIR |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | MotCorr, MP |
| Transmission | IR (up to 1300nm) |

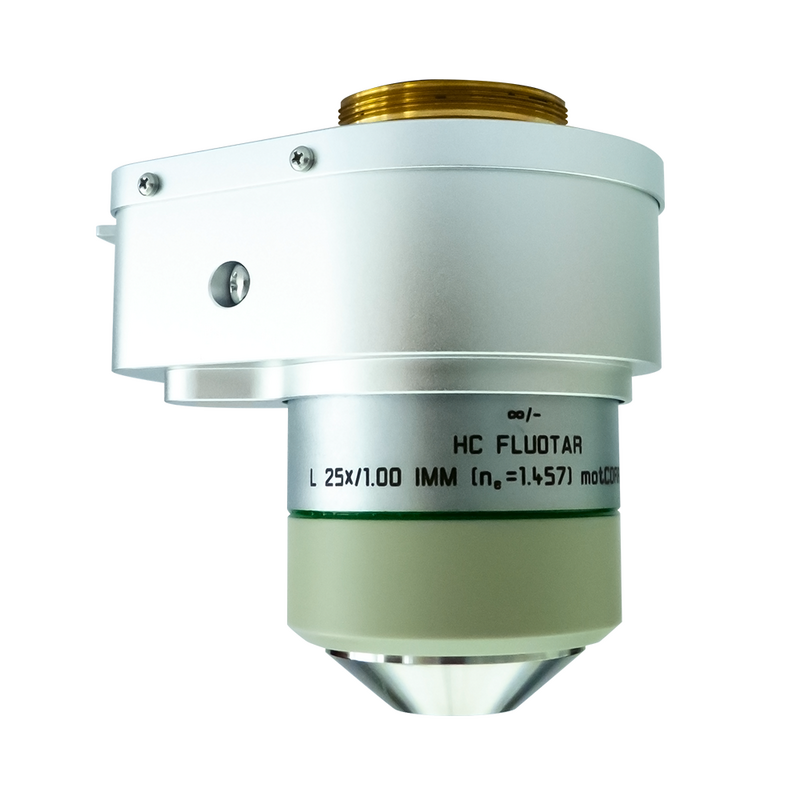

Figure

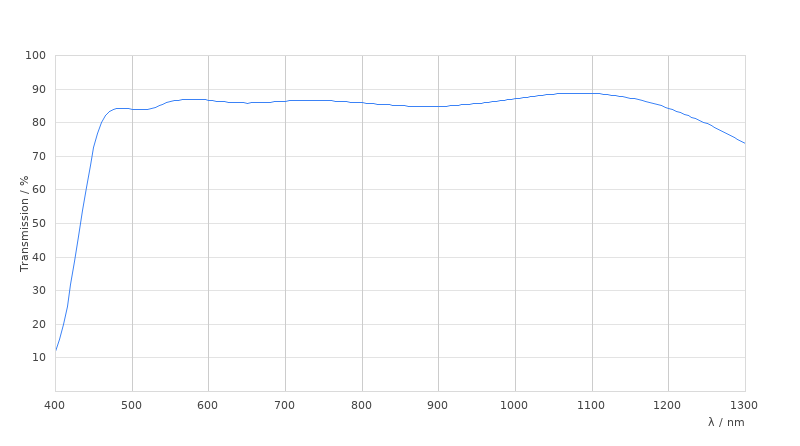

Transmission Curve

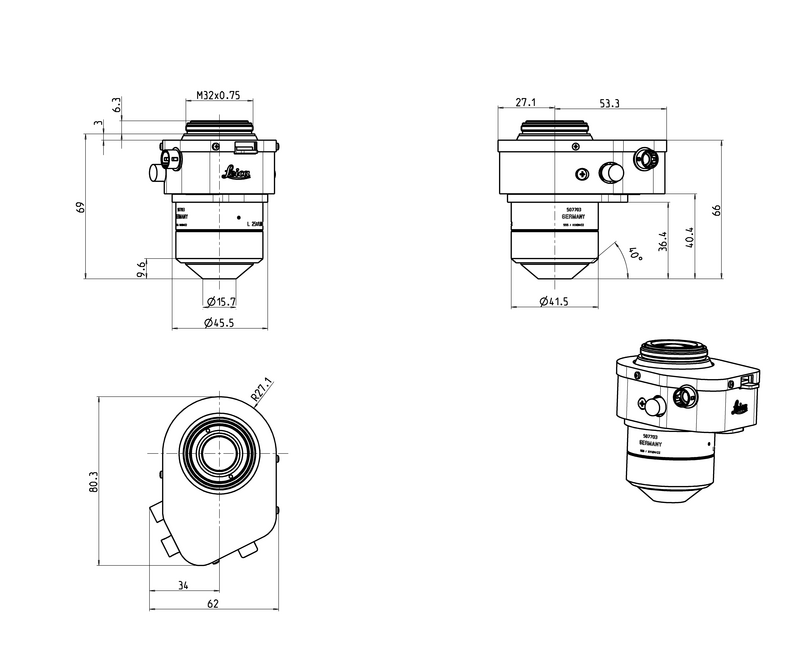

Dimension Sheet
