Microscope Objective HC PL FLUOTAR 5x/0,15 POL

<p>Objective HC PL FLUOTAR 5x/0,15 POL has a magnification of 5X and a numerical aperture of 0.15mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 13.7mm and a FN of 25.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL FLUOTAR 5x/0,15 POL
HC PL FLUOTAR 5x/0,15 POL
HC PL FLUOTAR 5x/0,15 POL
HC PL FLUOTAR 5x/0,15 POL
HC PL FLUOTAR 5x/0,15 POL
HC PL FLUOTAR 5x/0,15 POL

Technical Specs

Article Number 11556058
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 13.7
Immersion Dry
Iris Diaphragm Without
Magnification 5⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-POL, TL-DF, TL-IMC, IL-BF, IL-DIC, IL-P, IL-POL, FLUO
Numerical Aperture 0.15
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, POL

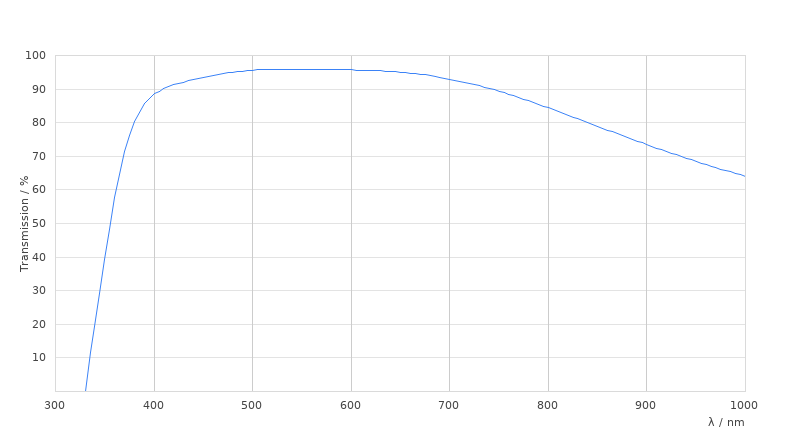

Transmission -
