HI PLAN 63x/0,75 POL

Article Number 11556066
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 0.31
Immersion Dry
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-POL, TL-DF, FLUO
Numerical Aperture 0.75
Objective Thread M25
Objective Type HI PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques POL
Transmission -

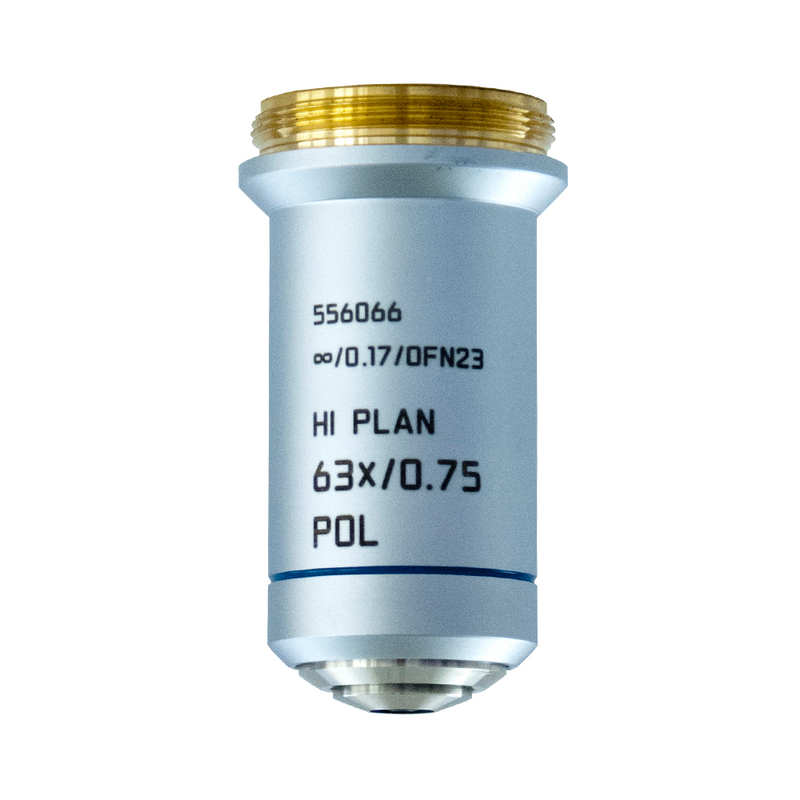

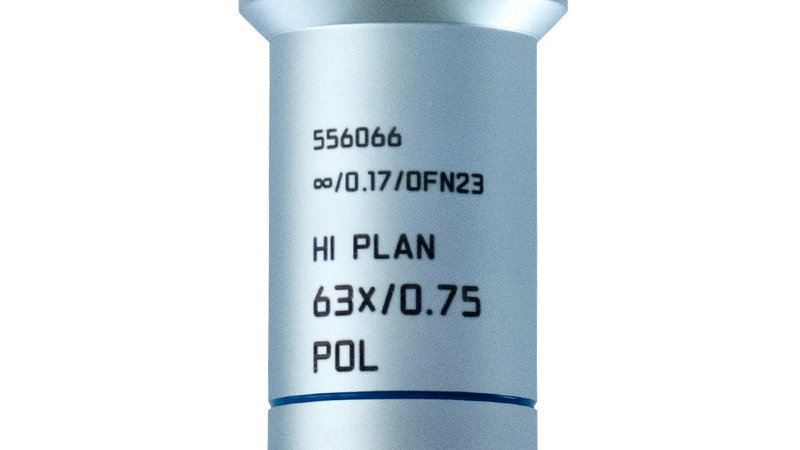

Figure

HI PLAN 63x/0,75 POL

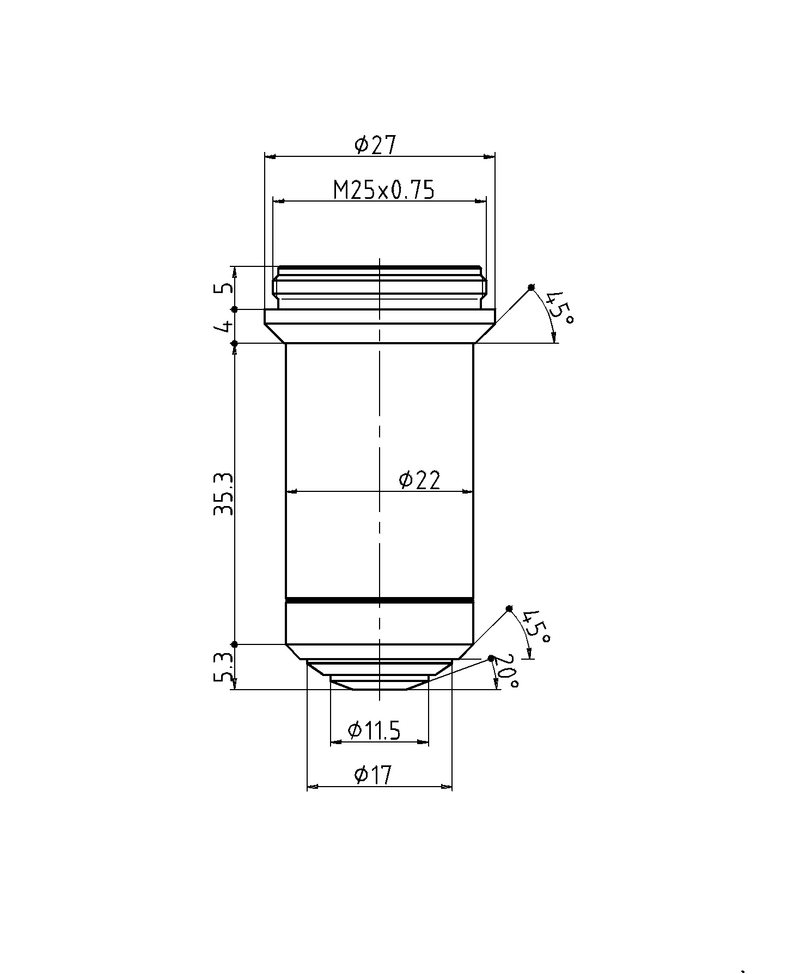

Dimension Sheet

HI PLAN 63x/0,75 POL
