Microscope Objective EPI 50x/0.85 OIL POL XLR

<p>Objective EPI 50x/0.85 OIL POL XLR has a magnification of 50X and a numerical aperture of 0.85mm. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.27mm and a FN of 16.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
EPI 50x/0.85 OIL POL XLR
EPI 50x/0.85 OIL POL XLR
EPI 50x/0.85 OIL POL XLR
EPI 50x/0.85 OIL POL XLR
EPI 50x/0.85 OIL POL XLR
EPI 50x/0.85 OIL POL XLR

Technical Specs

Article Number 11556090
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 16
Free Working Distance (WD in mm) 0.27
Immersion Oil
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-POL, IL-BF, IL-POL, FLUO
Numerical Aperture 0.85
Objective Thread M25
Objective Type N
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, POL

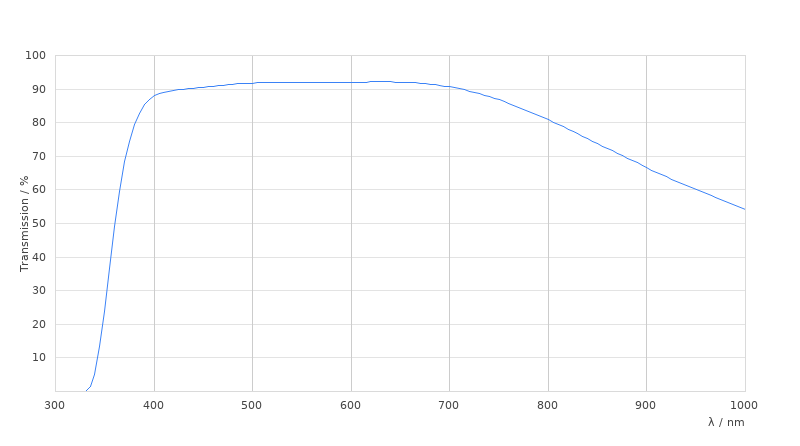

Transmission UV (365nm)
