Microscope Objective HC PL FLUOTAR 20x/0,50 POL

<p>Objective HC PL FLUOTAR 20x/0,50 POL has a magnification of 20X and a numerical aperture of 0.5mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 1.15mm and a FN of 25.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL FLUOTAR 20x/0,50 POL
HC PL FLUOTAR 20x/0,50 POL
HC PL FLUOTAR 20x/0,50 POL
HC PL FLUOTAR 20x/0,50 POL
HC PL FLUOTAR 20x/0,50 POL
HC PL FLUOTAR 20x/0,50 POL

Technical Specs

Article Number 11556501
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 1.15
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-POL, TL-DF, FLUO
Numerical Aperture 0.5
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques POL

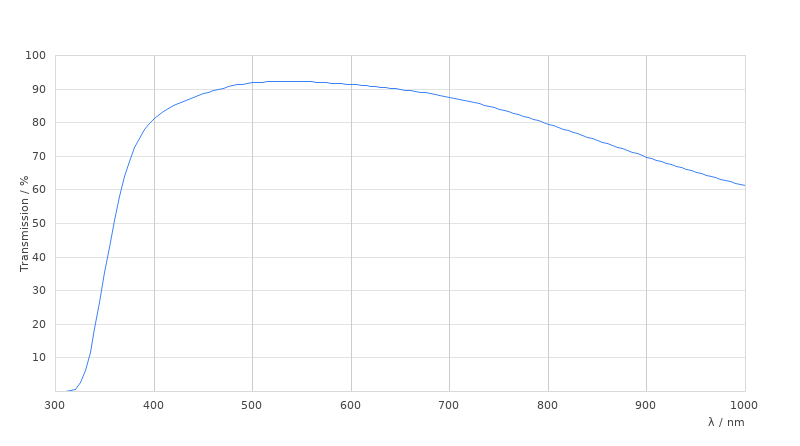

Transmission UV (340nm)
