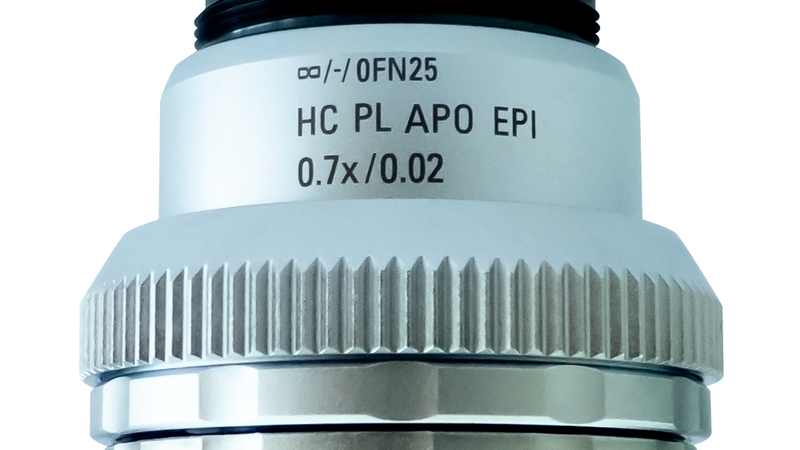

Microscope Objective HC PL APO EPI 0,7x/0,02
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Article Number | 11565056 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With & without |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 7.2 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 0.7⨉ |
| Contrasting Methodes | IL-BF |
| Numerical Aperture | 0.02 |
| Objective Thread | M32 |
| Objective Type | PLAN APO |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | IL |
| Transmission | - |
