N PLAN L 50x/0,50 BD

Article Number 11566038
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 22
Free Working Distance (WD in mm) 8.1
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.5
Objective Thread M32
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL
Transmission UV (365nm)

Figure

N PLAN L 50x/0,50 BD

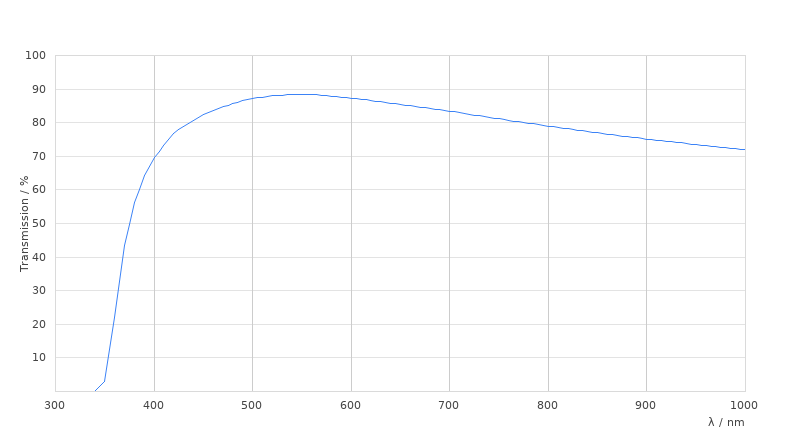

Transmission Curve

N PLAN L 50x/0,50 BD

Dimension Sheet

N PLAN L 50x/0,50 BD
