Microscope Objective N PLAN H 50x/0,50
Product No. 11566040
Objective N PLAN H 50x/0,50 has a magnification of 50X and a numerical aperture of 0.5mm. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 7.1mm and a FN of 22.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11566040 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | 1.8 Quartz |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 7.1 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 50⨉ |
| Contrasting Methodes | TL-BF, TL-P, TL-DF, FLUO |
| Numerical Aperture | 0.5 |
| Objective Thread | M25 |
| Objective Type | N PLAN |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | |

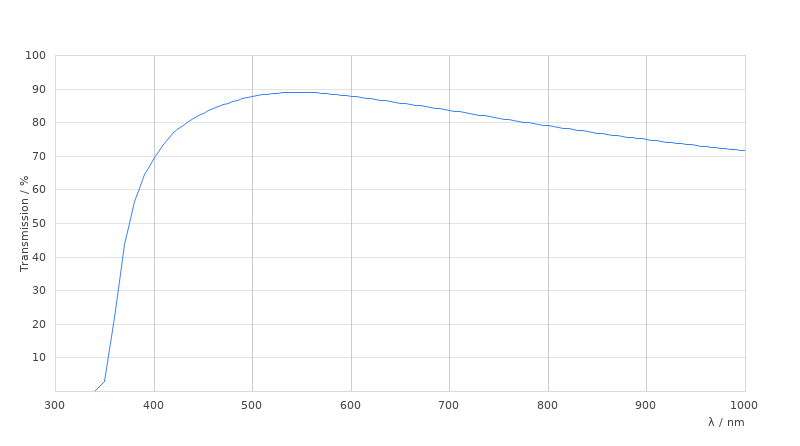

| Transmission | UV (365nm) |
