Microscope Objective N PLAN L 20x/0,40 BD

<p>Objective N PLAN L 20x/0,40 BD has a magnification of 20X and a numerical aperture of 0.4mm. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 10.8mm and a FN of 22.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
N PLAN L 20x/0,40 BD
N PLAN L 20x/0,40 BD
N PLAN L 20x/0,40 BD
N PLAN L 20x/0,40 BD
N PLAN L 20x/0,40 BD
N PLAN L 20x/0,40 BD

Technical Specs

Article Number 11566051
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 22
Free Working Distance (WD in mm) 10.8
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.4
Objective Thread M32
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL

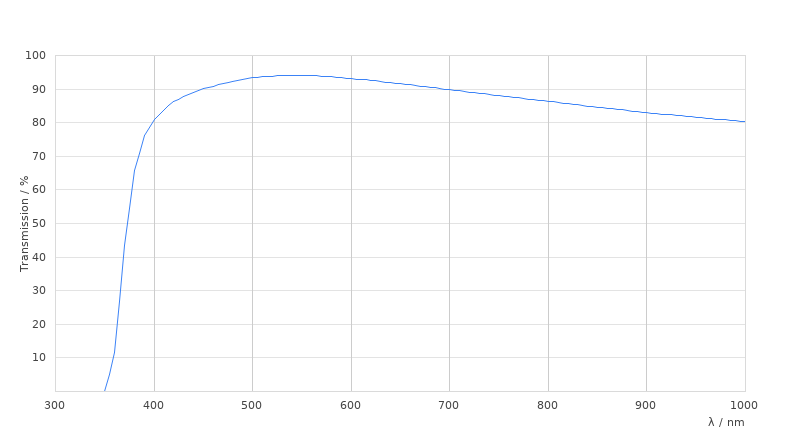

Transmission UV (365nm)
