N PLAN H 20x/0,40

N PLAN H 20x/0,40
Numerical Aperture 0.4
Suitable for AFC (Adaptive Focus Control) NO
Correction Ring (CORR) -
Coverglass 1.8 Quartz
Exit Pupil Position/DIC prism C
Field of View (FOV in mm) 22
Immersion DRY
Iris Diaphragm 0
Spring Loaded NO

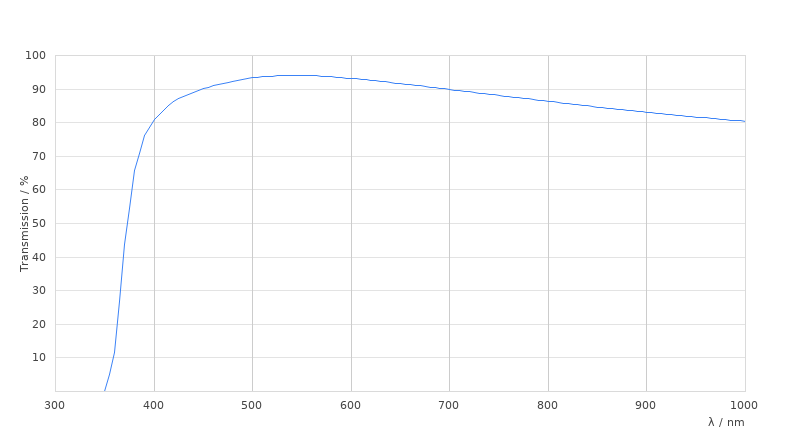

Transmission UV (365nm)
Magnification 20
Objective Thread M25
Free Working Distance (WD in mm)10.6
Objective Type N PLAN
Article Number 11566056
