N PLAN EPI 50x/0,75 BD

N PLAN EPI 50x/0,75 BD
Numerical Aperture 0.75
Suitable for AFC (Adaptive Focus Control) NO
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field of View (FOV in mm) 22
Immersion DRY
Iris Diaphragm 0
Spring Loaded NO

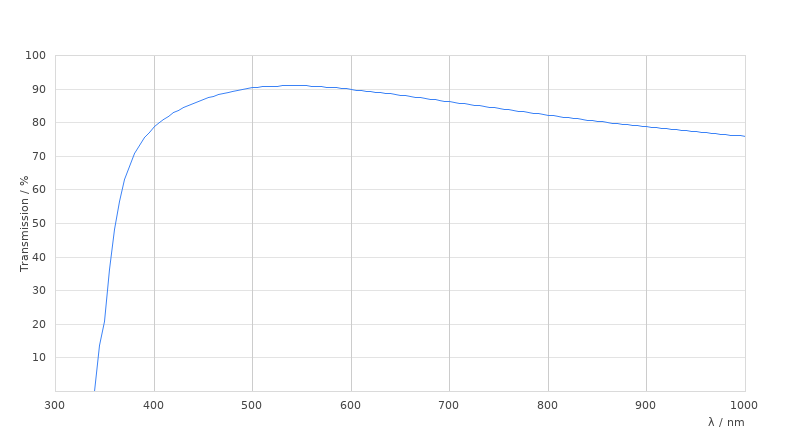

Transmission UV (365nm)
Magnification 50
Objective Thread M32
Free Working Distance (WD in mm)0.5
Objective Type N PLAN
Article Number 11566074
