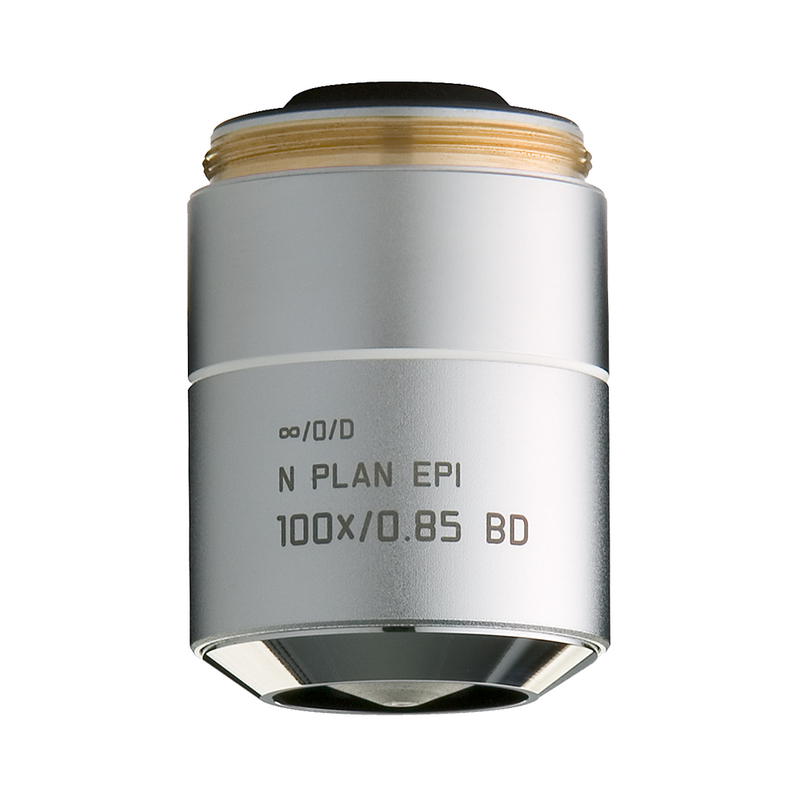

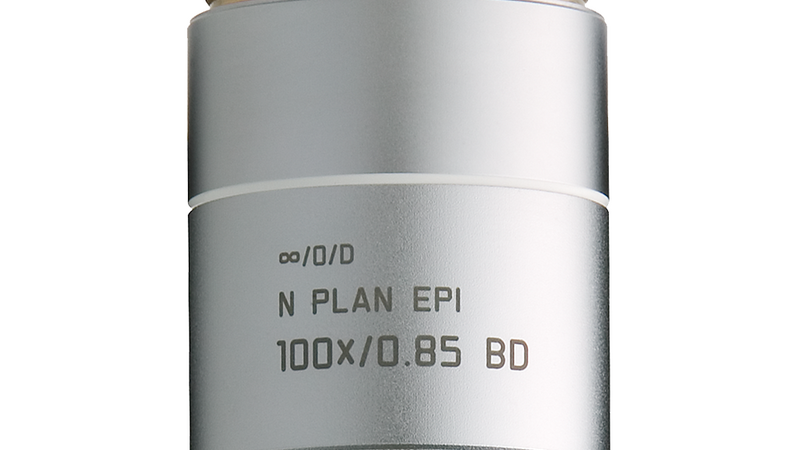

Microscope Objective N PLAN EPI 100x/0,85 BD

<p>Objective N PLAN EPI 100x/0,85 BD has a magnification of 100X and a numerical aperture of 0.85mm. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 0.33mm and a FN of 22.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
N PLAN EPI 100x/0,85 BD
N PLAN EPI 100x/0,85 BD
N PLAN EPI 100x/0,85 BD
N PLAN EPI 100x/0,85 BD
N PLAN EPI 100x/0,85 BD
N PLAN EPI 100x/0,85 BD

Technical Specs

Article Number 11566075
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 0.33
Immersion Dry
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-P, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.85
Objective Thread M32
Objective Type N PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL

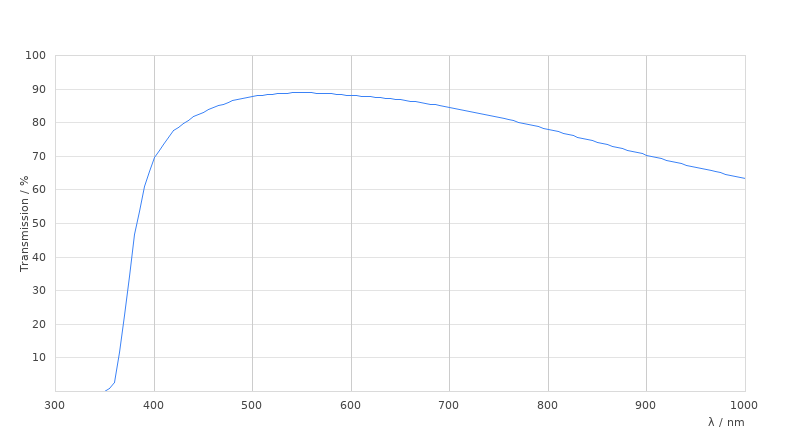

Transmission -
