N PLAN EPI 50x/0,75 XLF

Article Number 11566081
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 1.50
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, FLUO
Numerical Aperture 0.75
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL
Transmission UV (365nm)

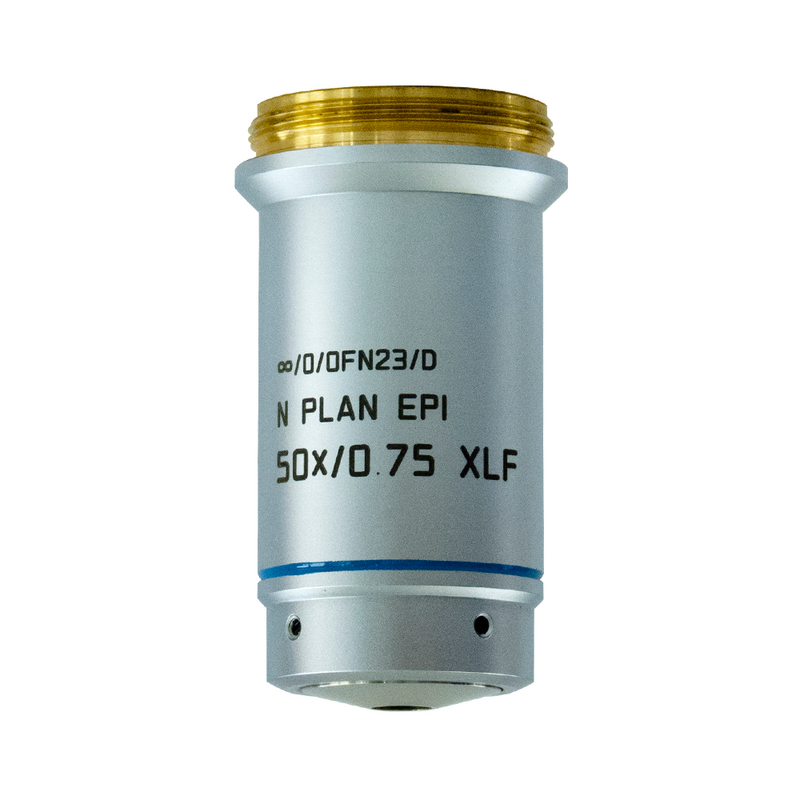

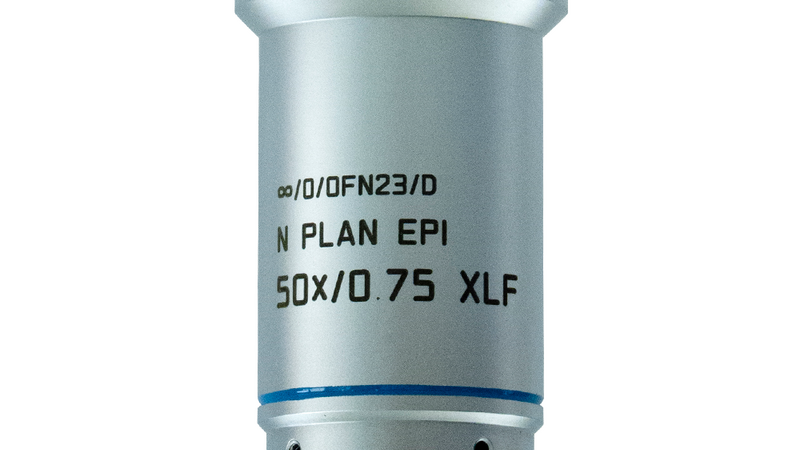

Figure

N PLAN EPI 50x/0,75 XLF

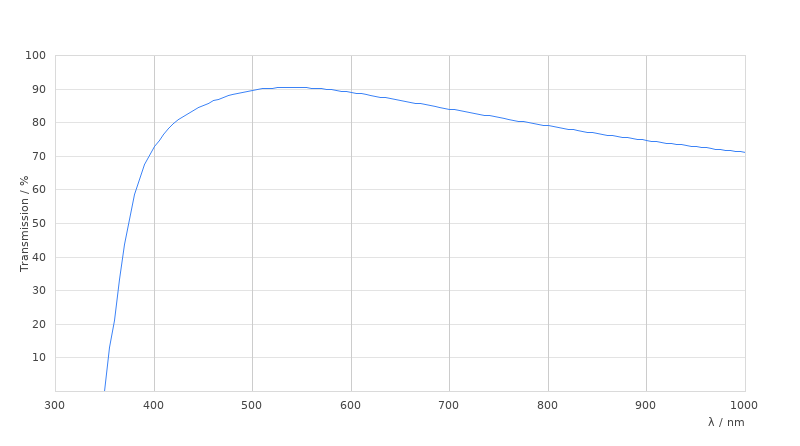

Transmission Curve

N PLAN EPI 50x/0,75 XLF
