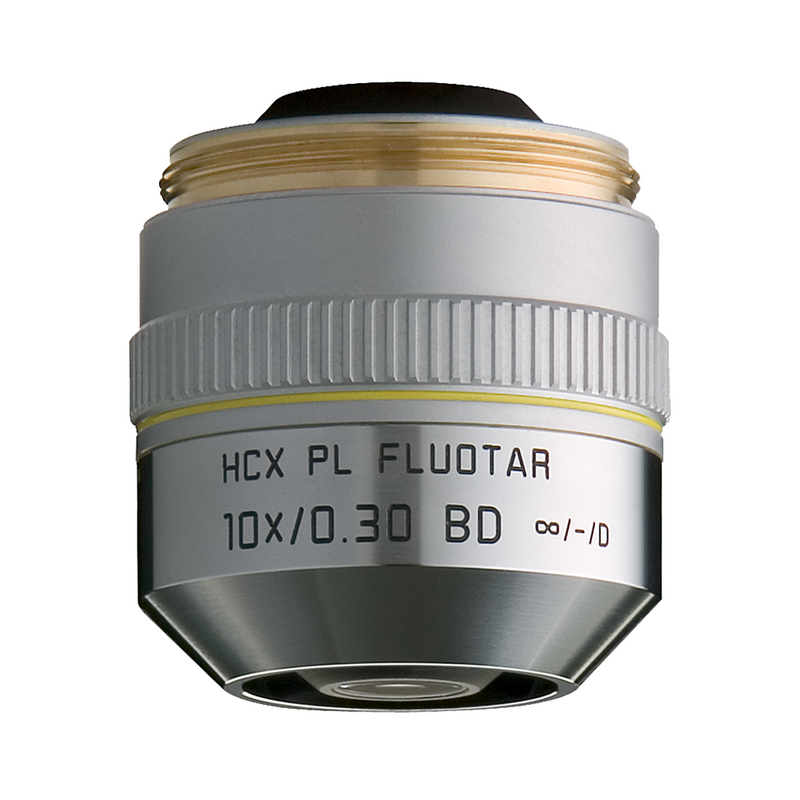

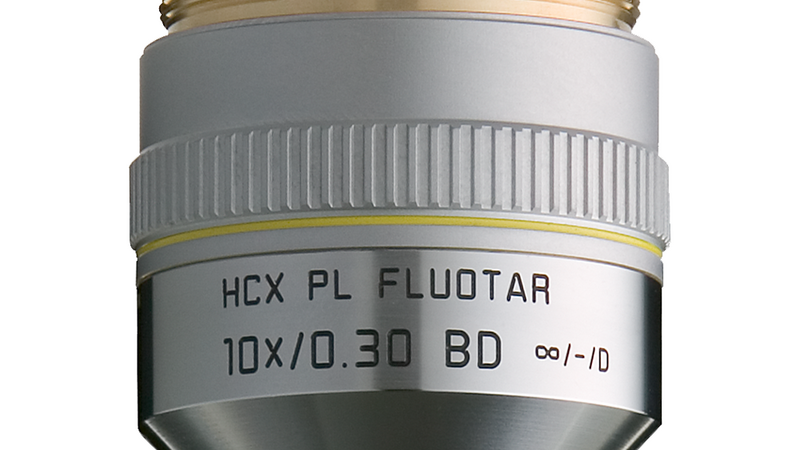

Microscope Objective HC PL FLUOTAR 10x/0,30 BD

<p>Objective HC PL FLUOTAR 10x/0,30 BD has a magnification of 10X and a numerical aperture of 0.3mm. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 11.0mm and a FN of 25.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL FLUOTAR 10x/0,30 BD
HC PL FLUOTAR 10x/0,30 BD
HC PL FLUOTAR 10x/0,30 BD
HC PL FLUOTAR 10x/0,30 BD
HC PL FLUOTAR 10x/0,30 BD
HC PL FLUOTAR 10x/0,30 BD

Technical Specs

Article Number 11566503
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 11.0
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.3
Objective Thread M32
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL
Transmission UV (340nm)
