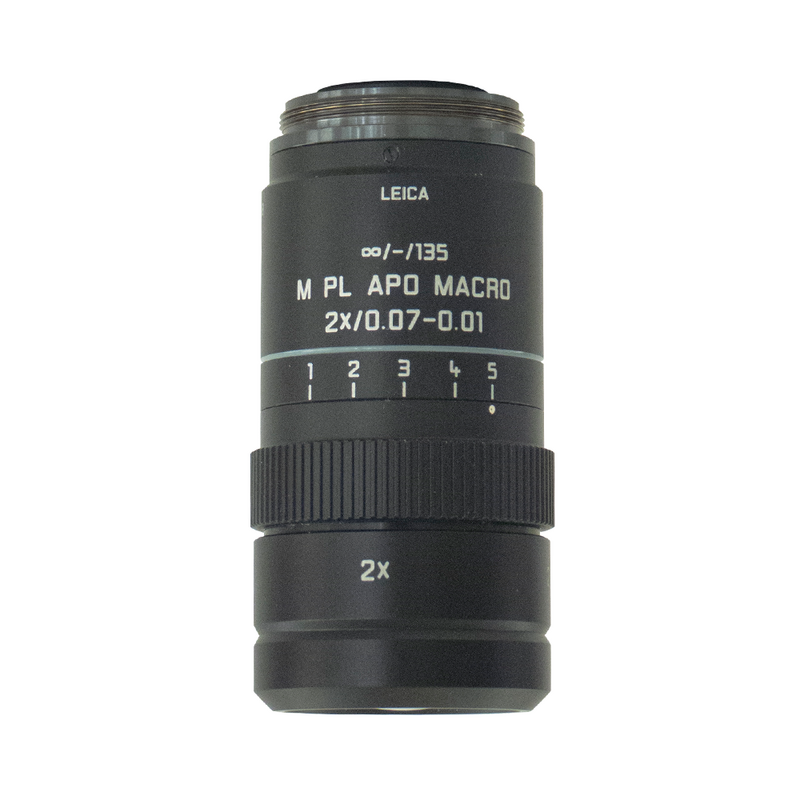

Microscope Objective M PL APO MACRO 2x/0.07-0.01
<p>Objective M PL APO MACRO 2x/0.07-0.01 has a magnification of 2X and a numerical aperture of 0.07mm. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 60mm and a FN of 22.</p>
Technical Specs
Article Number | 11581048 |
---|---|
Correction Ring (CORR) | - |
Coverglass | With & without |
Exit Pupil Position/DIC prism | - |
Field Number (FN) | 22 |
Free Working Distance (WD in mm) | 60 |
Immersion | Dry |
Iris Diaphragm | 0.01 |
Magnification | 2⨉ |
Contrasting Methodes | TL-BF, FLUO |
Numerical Aperture | 0.07 |
Objective Thread | M32 |
Objective Type | PLAN APO |
Spring Loaded | No |
Suitable for AFC (Adaptive Focus Control) | - |
Techniques | FSC |

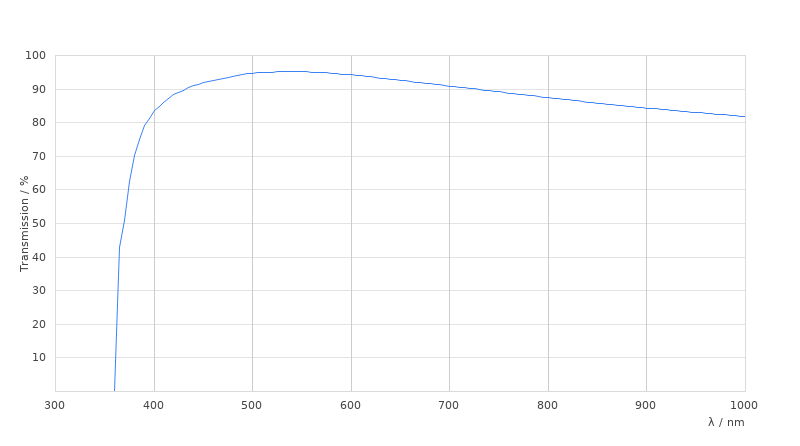

Transmission | UV (340nm) |
