Article Number 13613240
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 26.2
Immersion Dry
Iris Diaphragm Without
Magnification 4⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.1
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission -

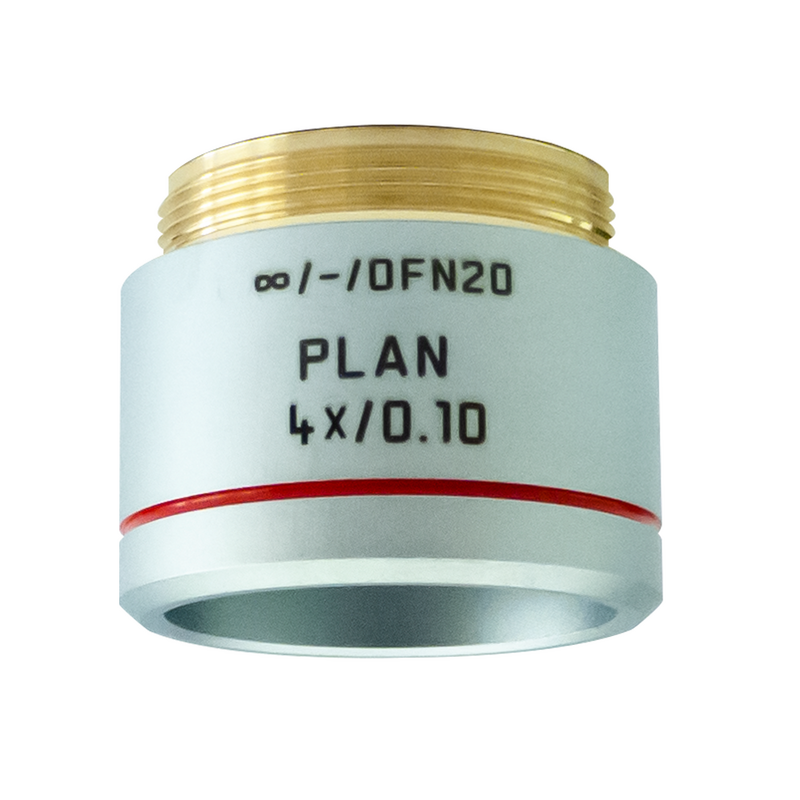

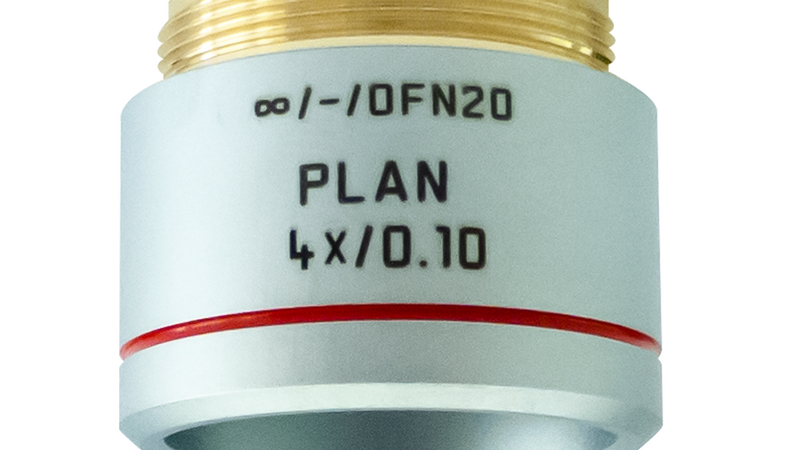

Figure

PLAN 4x/0,10

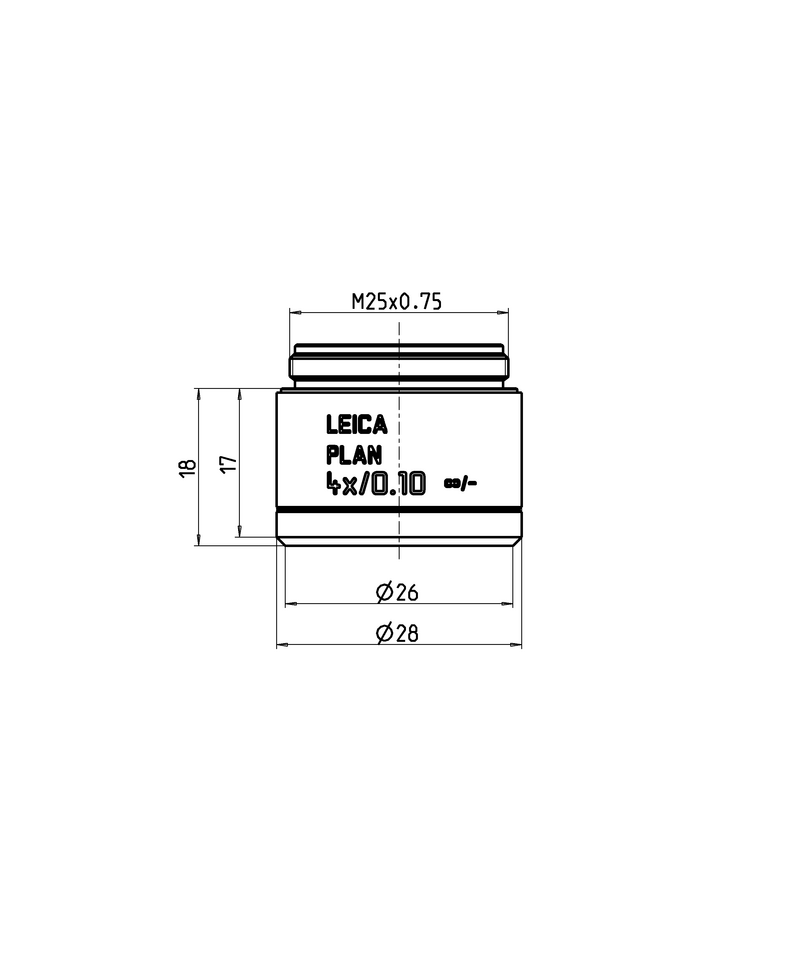

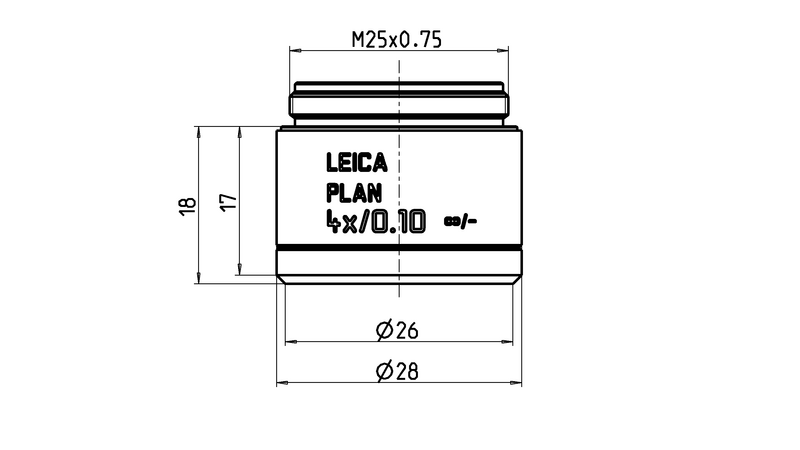

Dimension Sheet

PLAN 4x/0,10
