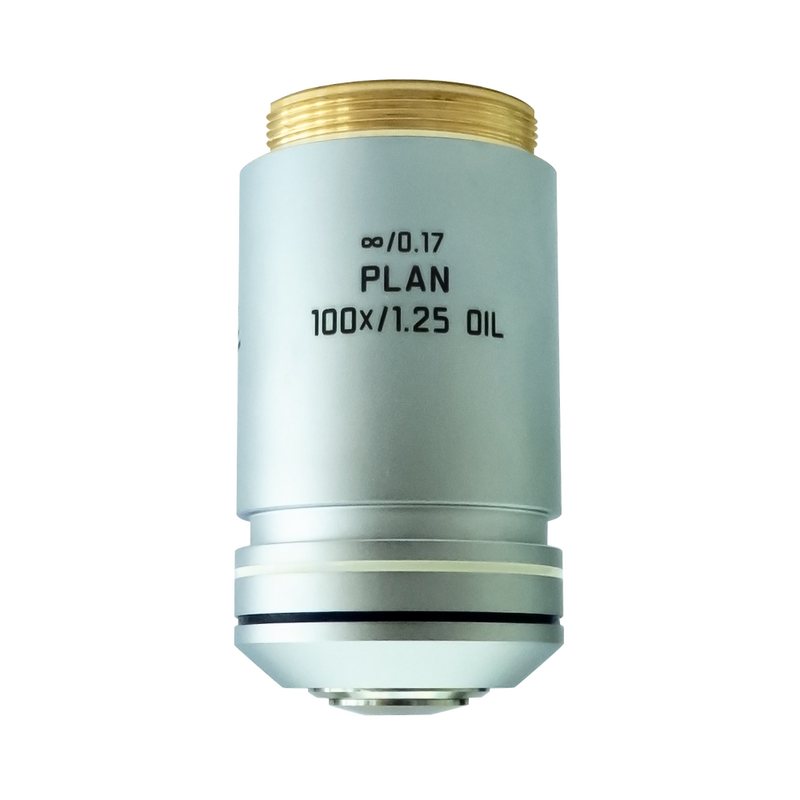

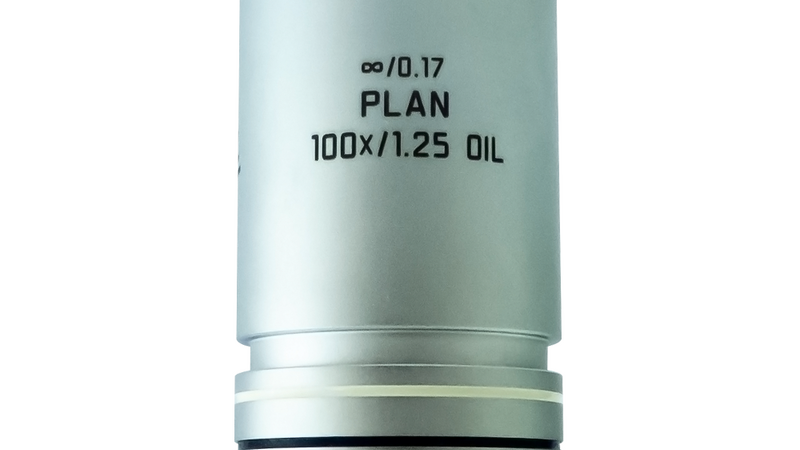

Microscope Objective PLAN 100x/1,25 OIL
Product No. 13613243
Objective PLAN 100x/1,25 OIL has a magnification of 100X and a numerical aperture of 1.25mm. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.10mm and a FN of 18.
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 13613243 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 18 |
| Free Working Distance (WD in mm) | 0.10 |
| Immersion | Oil |
| Iris Diaphragm | Without |
| Magnification | 100⨉ |
| Contrasting Methodes | TL-BF, FLUO |
| Numerical Aperture | 1.25 |
| Objective Thread | M25 |
| Objective Type | HI PLAN |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | |
| Transmission | - |
