Microscope Objective Optik Kit GSD 160x

<p>Objective Optik Kit GSD 160x has a magnification of 160X and a numerical aperture of 1.43mm. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.07mm and a FN of 25.</p>

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Optik Kit GSD 160x
Optik Kit GSD 160x
Optik Kit GSD 160x
Optik Kit GSD 160x

Technical Specs

Article Number 11888434
Correction Ring (CORR) CORR
Coverglass With
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.07
Immersion Oil
Iris Diaphragm Without
Magnification 160⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.43
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques GSD

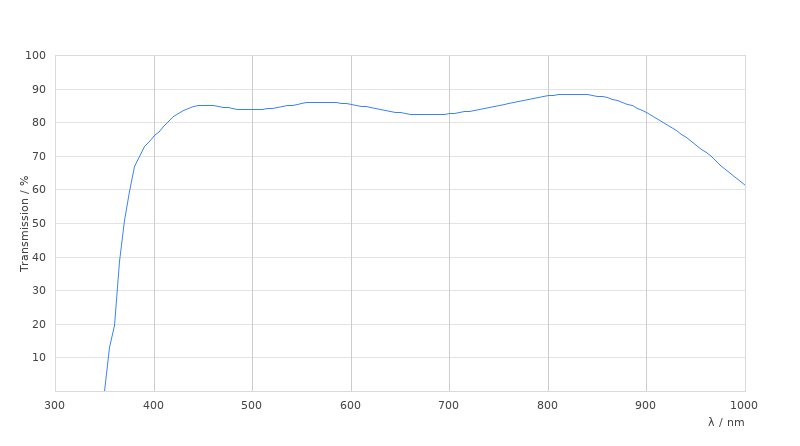

Transmission UV (365nm)
