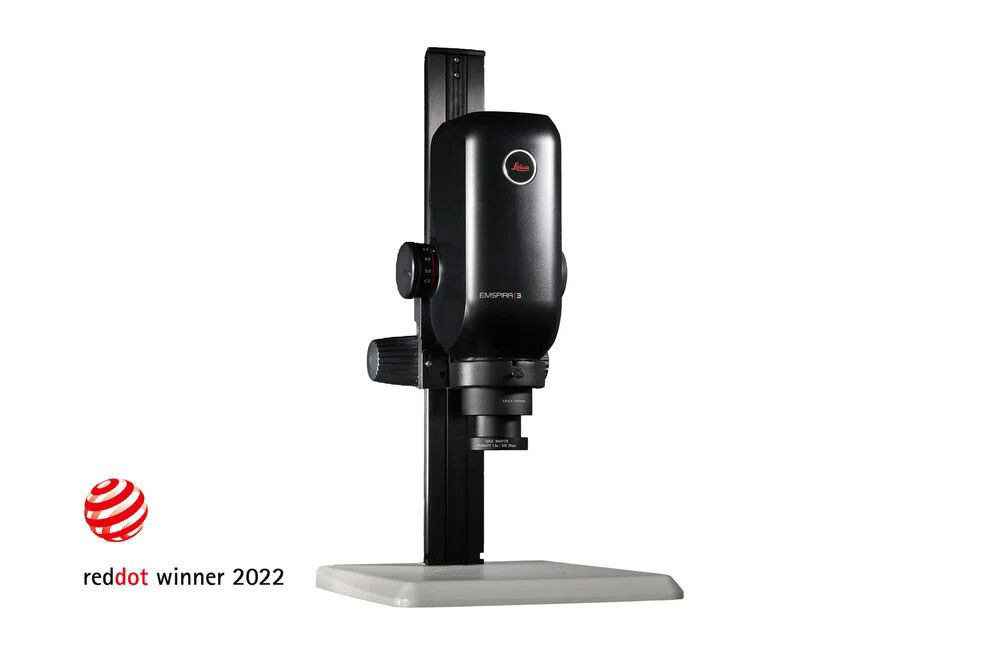

Emspira 3 Digital Microscope for Inspection
The Emspira 3 digital microscope is a cutting-edge tool tailored for precision inspection tasks. With advanced digital capabilities and high-quality imaging, this microscope transforms the inspection process, providing detailed and clear visualizations. Its user-friendly design and versatility make it an ideal choice for professionals seeking efficiency and accuracy in inspection applications. Elevate your inspection workflow with the Emspira 3, a digital microscope designed to meet the demands of meticulous inspection tasks with exceptional clarity and ease.
Components
Emspira 3 Digital Microscope for Inspection includes: |
Quantity |
|
|---|---|---|
 |
Emspira 310450851 |
1 |
|
1D Barcodescanner10450961 |
1 |
|
Focus drive 500 mm M-Series Routine10450172 |
1 |
|
Intermediate adapter for TL and IL Base10450434 |
1 |
|
Microscope carrier10450173 |
1 |
|
Inc. light base, large w. AntiShock feet10450049 |
1 |
|
Leica LED3000 RL, 58 mm10450271 |
1 |
|
Polarisation set for LED3000 RL10450337 |
1 |
|
Dust cover antistatic, small10447039 |
1 |
|
Microscope Objective 1.0x Planapo Z-series10447176 |
1 |
|
Adapter-Telecentric, 0.8x & 1.0x Planapo10450651 |
1 |
|
Standalone kit for Emspira 310450860 |
1 |
|
HP E27k G5 27 UHD"11533663 |
1 |
|
U.K. power cord13613902 |
1 |
|
WiFi Dongle 2.4/5GHz (EU)12730557 |
1 |
|
Service Installation9I_SM_CLASS_B |
1 |
Specifications:
- 4k 60fps live image via HDMI
- Antimicrobial PC/ABS housing with AgTreat™
- 8:1 zoom ratio with 26x- 206x magnification range (1x Planapo objective, optional 28"-monitor) & parfocal optics – from overview to detail
- Possible magnification range 8.2x to 1027x (depending on objective with 28" monitor)
- Coded zoom with click stop option for reproducible workflows
- JPG/TIFF/BMP images with up to 12 MP
- Full HD MJPG Video recording with 30 fps
- USB 3.1 type C connection
- control via Enersight Mobile (iOS/Android) or via Enersight OSD
- Including: USB C to A cable
- HP E27k G5 27" UHD
Features:
- Stand alone operation
- Control via mouse, keyboard, foot/hand switch and/or touchscreen
- Integrated measurement, annotation and sharing functionality
- Create overlays and reference images for comparison
- Capture directly to USB stick or network folder
- Send images via E-Mail
- Customizable UI for simplified workflows
Emspira 3 Digital Microscope
The advantage of optimized inspection and adaptability to your needs combined in a single system is waiting for you. Save time when meeting demanding throughput targets and inspecting diverse samples with Emspira 3. For efficient decision making, benefit from secure storage and easy sharing of documentation – no matter if you inspect in stand-alone mode or with a PC. The robust design of Emspira 3 allows you to focus confidently and reliably on your inspection work both in production and laboratory environments.
