DMIL Fluorescence for Fluorescence Cell Culture with Documentation
The DM IL LED, equipped with a K3C camera, is tailored for phase contrast and fluorescence imaging of cell cultures and individual cells. The system and the intuitive LASX software document seamlessly routine tasks in cell culture labs like confluence estimation and transfection efficiency checks. Elevate your cell culture research with the DM IL LED, featuring a color camera for seamless image capture and providing superior fluorescence capabilities for enhanced visualization and insights into dynamic cell culture phenomena.
Components
DMIL Fluorescence for Fluorescence Cell Culture with Documentation includes: |
Quantity |
|
|---|---|---|
Leica K3C11547114 |
1 | |
 |
C-Mount HC 0.55x11541544 |
1 |
|
Adapter sleeve for DM IL and DM100011504127 |
1 |
|
Filter system GFP ET, s11504174 |
1 |
 |
Microscope Objective HI PLAN 4x/0.10 PH011506408 |
1 |
 |
Microscope Objective HI PLAN I 20x/0.30 PH111506272 |
1 |
 |
Microscope Objective HC PL FL L 40x/0.60 CORR PH211506203 |
1 |
|
Leica DM IL LED Fluo11521265 |
1 |
|
Condenser S40 / 0.4511521251 |
1 |
|
Microscope Objective HI PLAN CY 10x/0.25 PH111506402 |
1 |
|
Trinocular tube HC ILT11521249 |
1 |
|
Eyepiece HC PLAN 10x/20 BR.11507801 |
1 |
|
Eyepiece HC PLAN 10x/20 BR.M11507802 |
1 |
|
Dust cover for DM IL, ILM11512596 |
1 |
|
4-fold Lightring Slider for S4011526113 |
1 |
|
CoolLED pE300lite, SB direct11533491 |
1 |
|
U.K. power cord13613902 |
2 |
|
Service Installation9I_CM_CLASS_C |
1 |
Specifications
- DM IL LED Fluo Incident Light Fluorescence
Transmitted Light

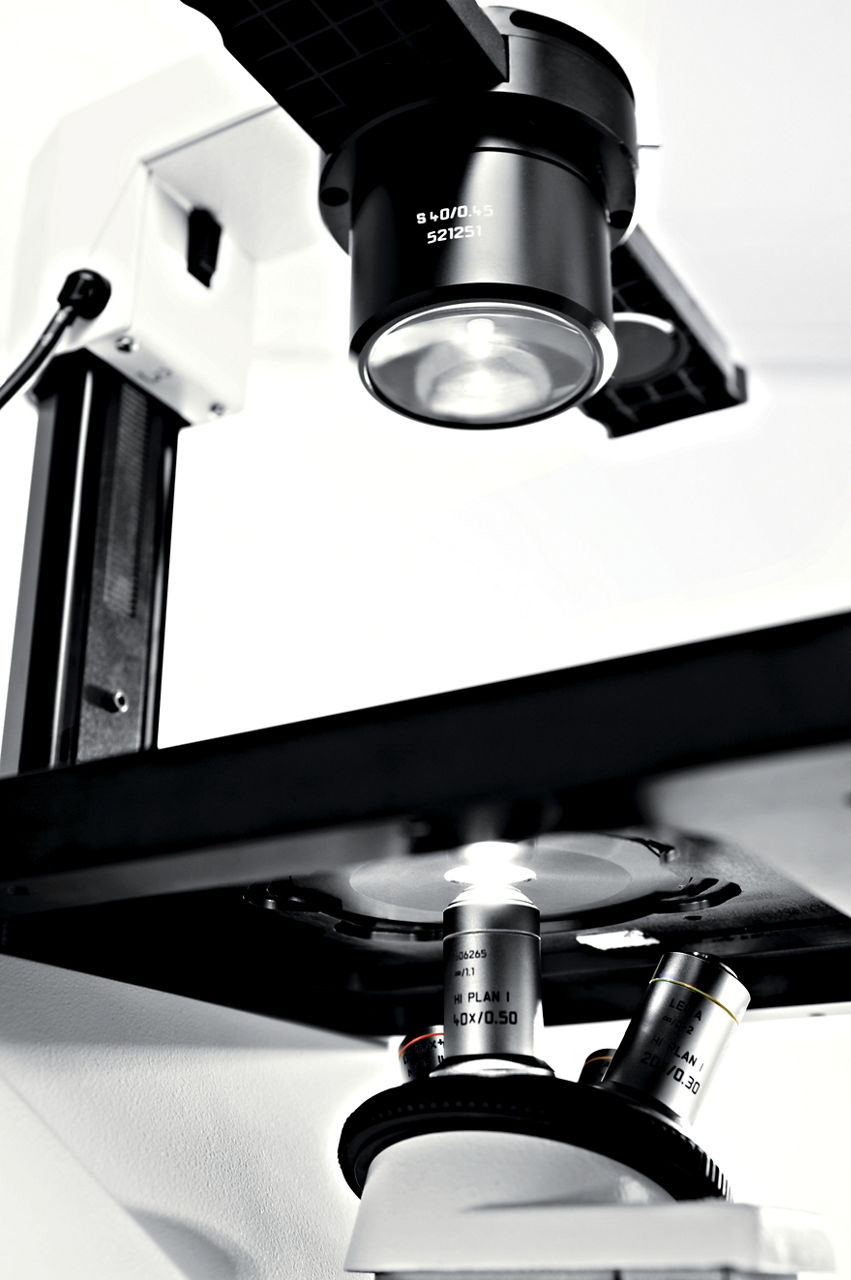

- Condenser S40 / 0.45
- Slider for lightrings S40, complete
Objective
- HI PLAN 10x/0.25 PH1
Documentation Port
- Trinocular tube HC ILT
- Eyepiece HC PLAN 10x/20 BR.
- Eyepiece HC PLAN 10x/20 BR.M

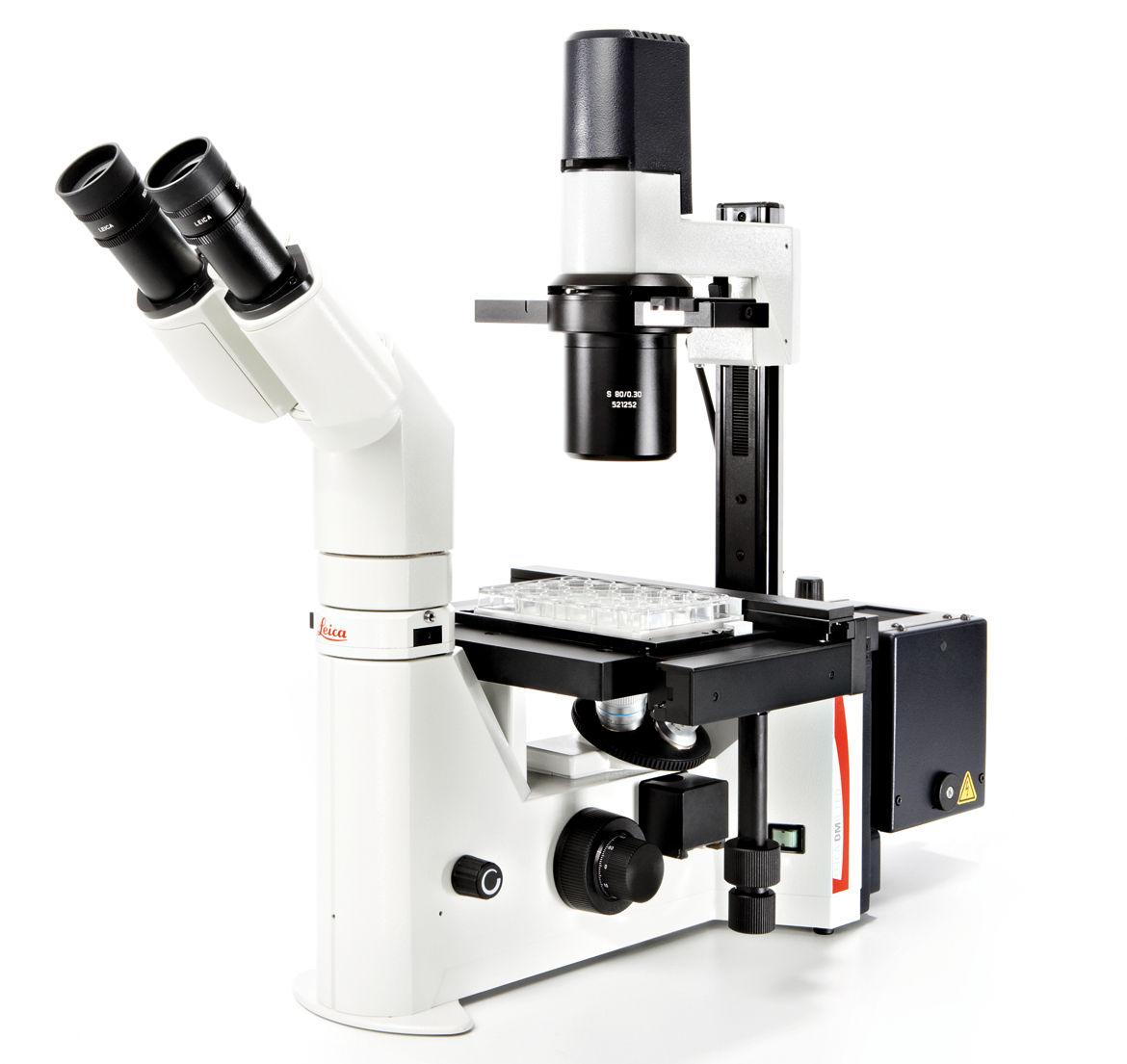

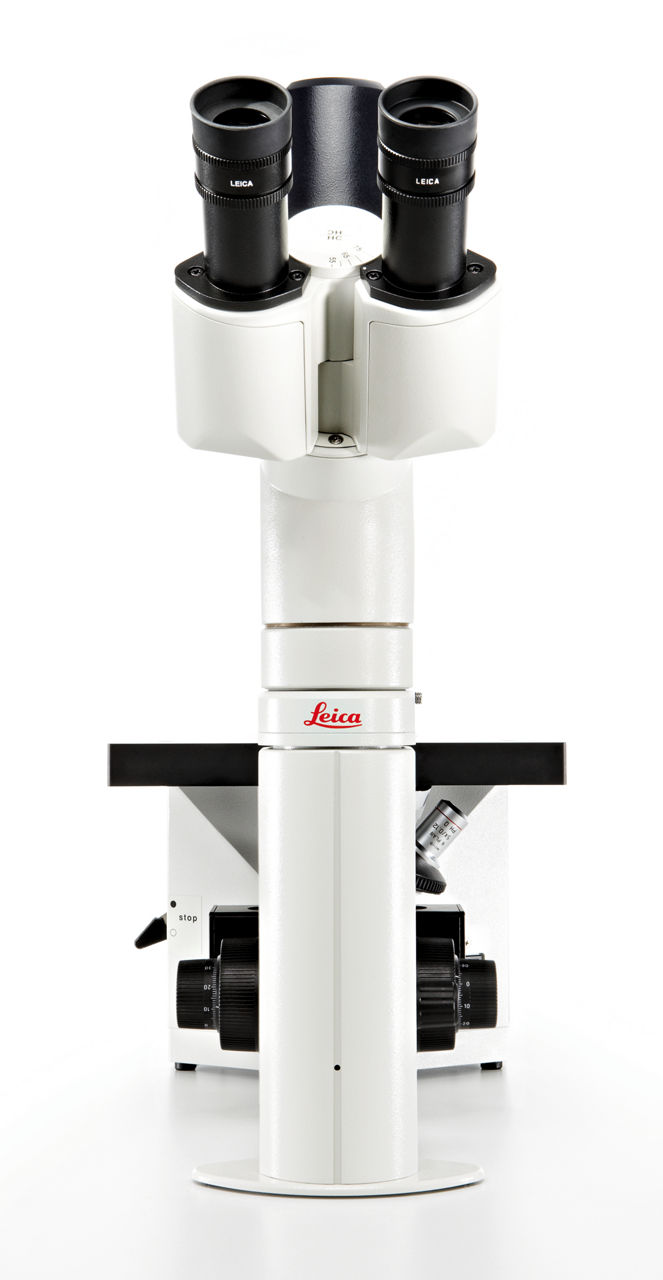

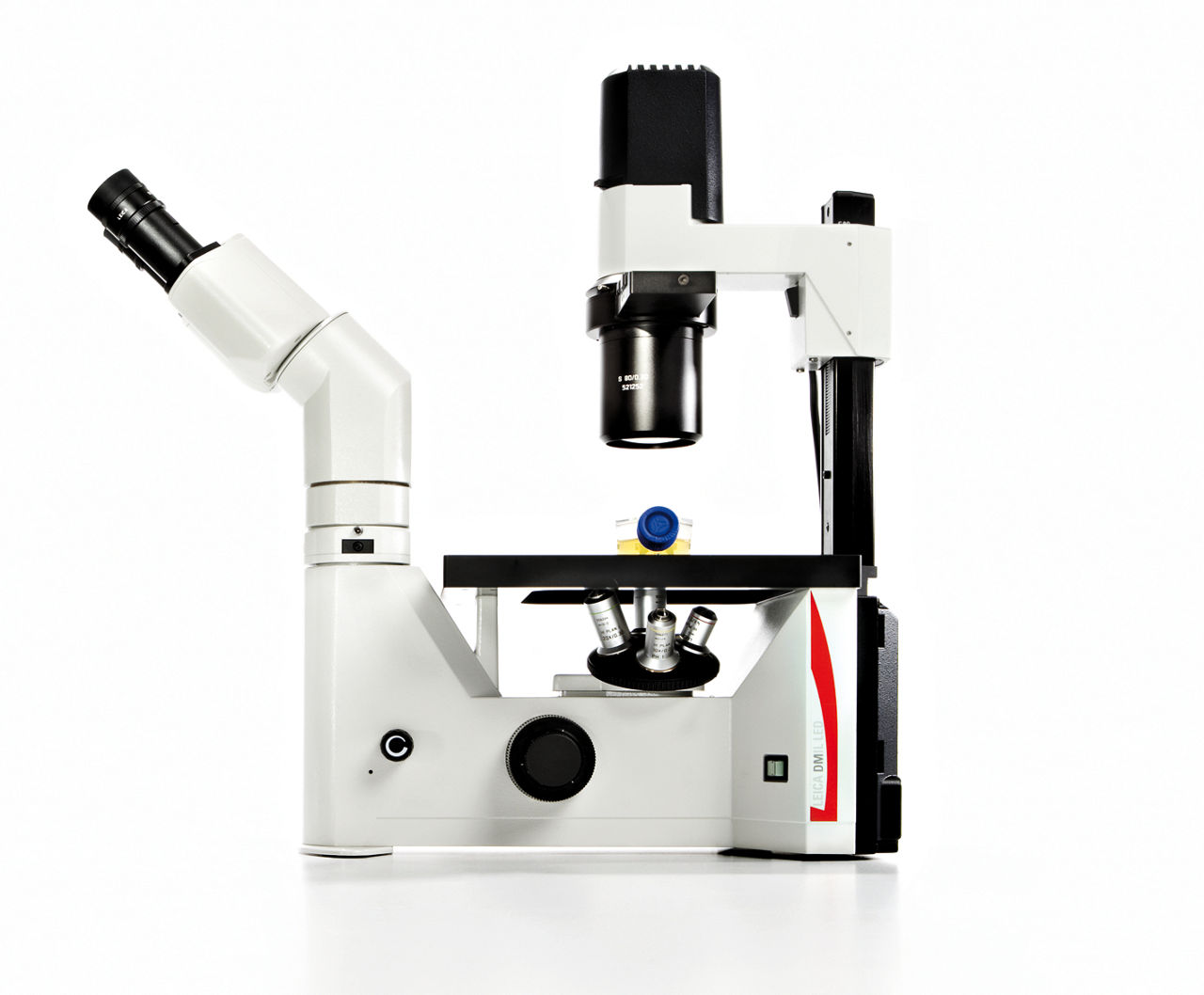

DM IL LED Inverted Laboratory Microscope
Ideal for cell culture, micromanipulation, documentation of immunostained specimens, and routine live cell examinations. Monitor your specimen the way you need: Phase contrast, modulation contrast and fluorescence are just one fingertip away.
Robust stability, plenty of space to work with tools, long working distances to accommodate large culture flasks and a stable illumination without heat make work at the microscope easy and convenient.
For special diagnostics requirements, the microscope is certified for in-vitro-diagnostics (IVD) including in-vitro-fertilization (IVF).
