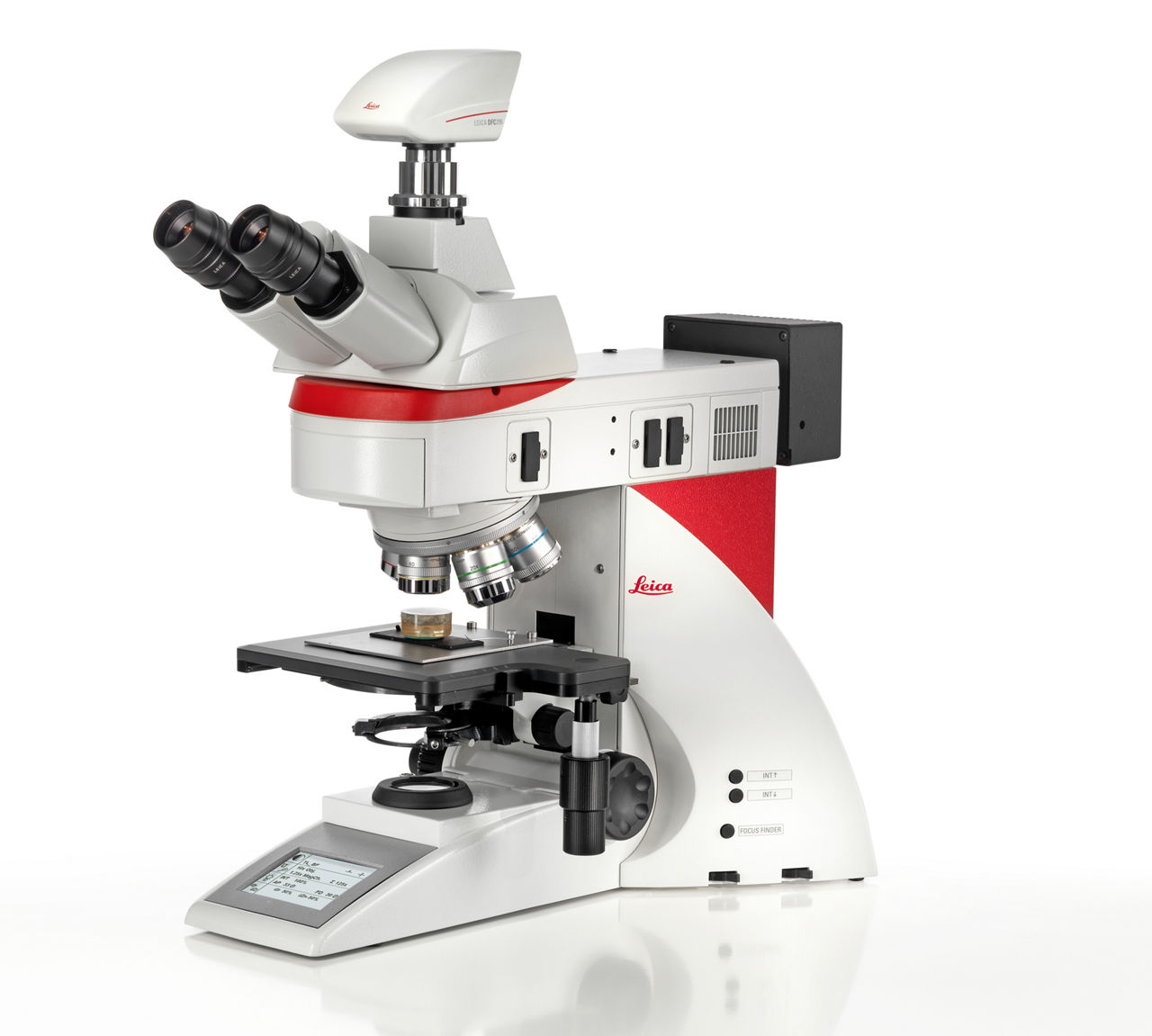

DM6 M Metallographic Microscope

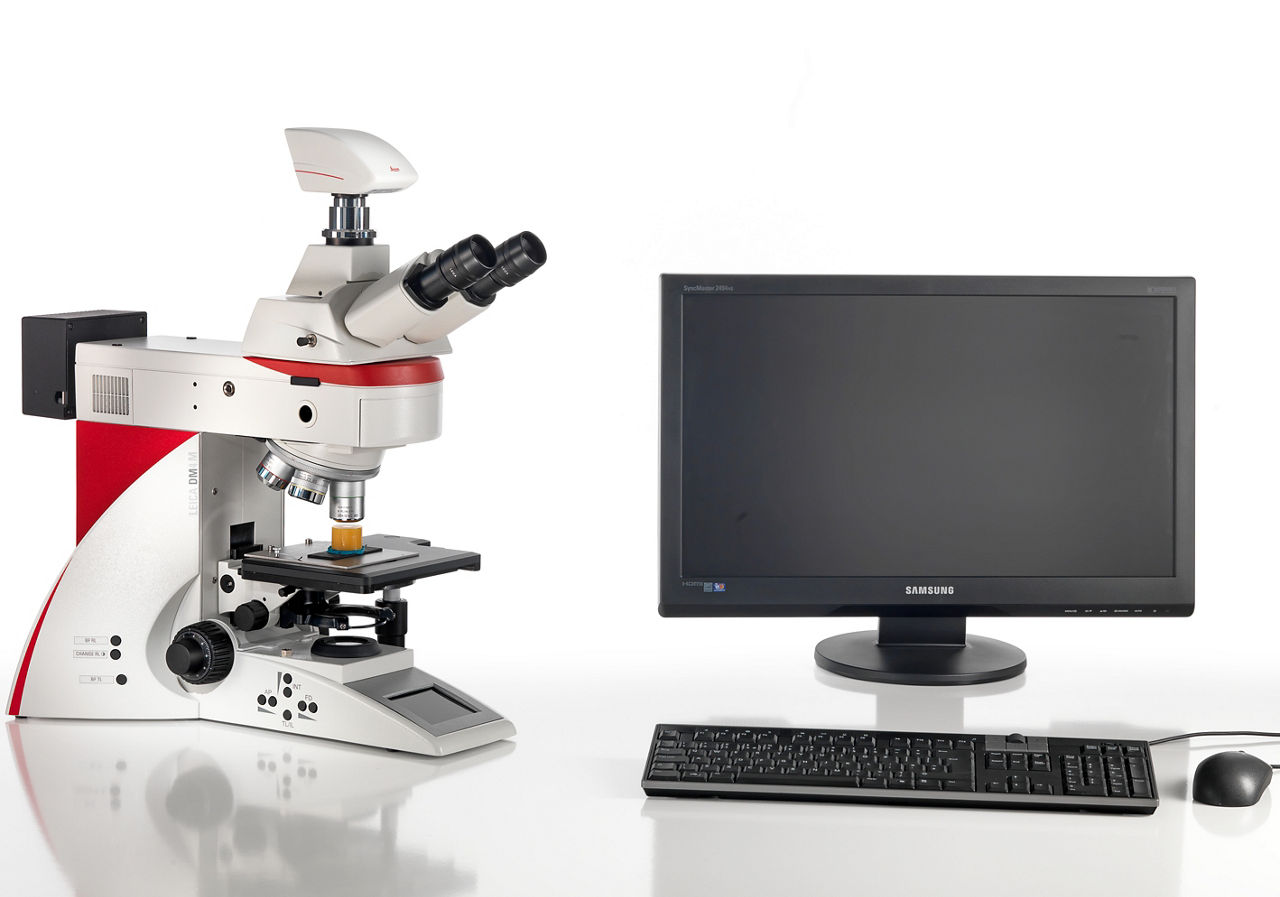

Meet the DM6 M – a pinnacle in optical precision. This advanced light microscope combines ergonomic design with high-resolution imaging, providing versatile applications in various fields. Built with Leica's renowned craftsmanship, the DM6 M offers durability and stability. Explore the microscopic world with ease and precision, as cutting-edge technology meets user-centric design in this indispensable scientific tool.
Components
DM6 M Metallographic Microscope includes: |
Quantity |
|
|---|---|---|
 |
Dust cover for DM4/611505168 |
1 |
|
Reflector BF, fixed11888716 |
1 |
|
Smart Move l²C11525232 |
1 |
|
Magnification changer IND 1/1.5/2x, cod.11888789 |
1 |
|
Reflector DF DM8000/DM1200011888740 |
1 |
|
CTR compact XY11525227 |
1 |
|
LED lamp housing DM6, cable long11504242 |
1 |
|
Tube HC L2TU 4/5/7, binoc. phototube11501598 |
1 |
|
Eyepiece HC PLAN s 10x/25 Br. M11507808 |
2 |
|
Universal MSH 2x2 for Metallography11533111 |
1 |
|
Stage Insert for MSH(1x) on DM4-6 M11533110 |
1 |
|
Metal insert 160x116 f.Scan.-St.100x8011532502 |
1 |
|
Cable scanningstage, XY-adv. Board11525218 |
1 |
 |
Microscope Objective HC PL FLUOTAR 5x/0,15 BD11566046 |
1 |
 |
Microscope Objective HC PL FLUOTAR 10x/0,30 BD11566503 |
1 |
 |
Microscope Objective HC PL FLUOTAR 20x/0,45 BD11566509 |
1 |
 |
Microscope Objective HC PL FLUOTAR 50x/0,80 BD11566201 |
1 |
|
Microscope Objective HC PL FLUOTAR 100x/0,90 BD11566203 |
1 |
|
HP E27k G5 27 UHD"11533663 |
1 |
|
Silver Workstation11640714 |
1 |
|
DM6 M basic stand, LED RL, mot. Z11889191 |
1 |
|
Ground plate w/o. filter magazine11888098 |
1 |
|
Cover objective revolving nosepiece11888105 |
1 |
|
DM6 M Top,6x,M32,mot.,4x (RL,BD), mot.11889213 |
1 |
|
Scanning stage SCAN 100x100+small conden11501280 |
1 |
|
Polarizer R/P, L 29x11.511555005 |
1 |
|
Analyzer 180°, rotatable11555079 |
1 |
Leica K3C11547114 |
1 | |
|
C-Mount HC 0.55x11541544 |
1 |
|
LAS X Industry Core11640620 |
1 |
|
Dongle for LAS X optional modules11640879 |
1 |
|
LAS X Quantimet Basic SW Package11640605 |
1 |
|
Keyboard UK; USB Hub11600221 |
1 |
|
Service Installation9I_CM_CLASS_F |
1 |
Specifications:
- DM6M fully motorized inspection microscope with touch screen control e.g. of all contrasting modes Brightfield (BF), Highdynamic Darkfield (HDF), Differential Interference Contrast (DIC), Polarization (POL) or Fluorescence (FL).
- Including Light Manager for a time saving and easy operation.
- For a very fast overview on the sample the 1.25x objective can be adapted.
- The integrated Contrast Manager adjusts the required settings for each objective and contrast mode fully automatically and so allows easy operation for each user.
- 27“ 4k HDMI Monitor
- W2 Workstation (for imaging with xyz motorized Microscopes)
- Motorized Z drive
- With magnification changer
- Phototube HC L2TU 4/5/6
- Motorized objective turret
- With DF contrast
- Automated (motorized + scanning)
- Scanning stage 100x100 (2mm)
- Metal insert 160x116
Leica DM4 M & DM6 M Upright Materials Microscopes
Do you need to image, measure, and analyze similar features across many samples and materials science and analysis? The Leica DM4 M and Leica DM6 M are the Industrial Microscopes for you, whether microscopy novice or professional.
You can easily recall previous microscope settings and instantly reproduce imaging parameters with the unique Store and Recall software functions. For every sample type.
