Multiplexing through Spectral Separation of 11 Colors

Harnessing the extended spectral power of confocal microscopy and multicolor unmixing tools

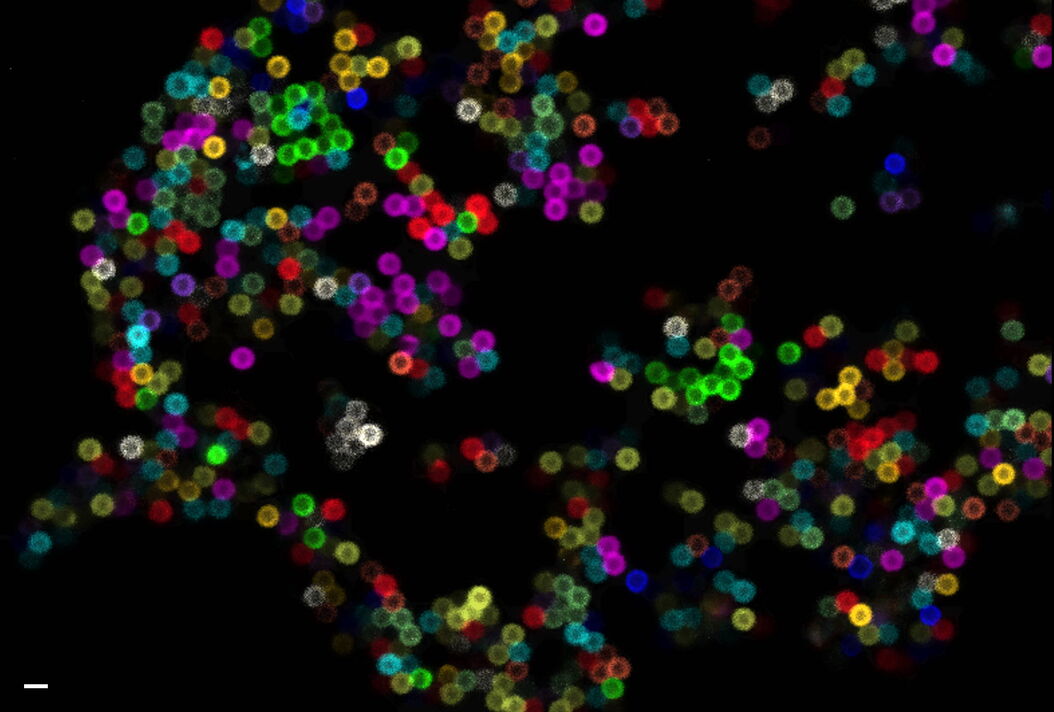

Spectral separation of 11 fluorophores coupled to polystyrene beads on a STELLARIS confocal system. Spectral_separation_of_11_fluorophores_coupled_to_polystyrene_beads.jpg

Fluorescence microscopy is a fundamental tool for life science research that has evolved and matured together with the development of multicolor labeling strategies in cells tissues and model organisms. The ability to tag multiple species with molecular specificity has created the need for the appropriate tools to identify multiple fluorescent labels in a sample. A rigorous separation of multiple labels is crucial to get meaningful readouts on composition, abundance, structure, and function. This so-called multiplexing has become prominent to reveal key aspects of tissue organization, cancer progression, tumor-immune interactions, and infectious disease mechanisms [1-4].

Why is multiplexing necessary?

Simple multicolor experiments utilize up to three different fluorophores with distinctive emissions in the blue, green, and red regions of the visible spectra. However, the increasing complexity of biological samples and processes has raised the technical and application-driven demand for methods that allow for simultaneous imaging in the mid-plex (>10 fluorophores) range [5-7].

Challenges

One way to achieve multiplexing is to perform iterative staining and imaging rounds on the sample using the above mentioned blue, green, and red fluorophores. However, this procedure is very time-consuming and can compromise sample integrity and quality due to the harsh treatments that are required during each round of staining. In addition, image processing to combine the data is cumbersome and particularly difficult in 3D tissue samples. Therefore, strategies to achieve the required multiplexing level in a single round of staining have become desirable for more complex multiplexing applications. While increasing the number of different fluorophores in a sample is a task that researchers can tackle, purely from a sample preparation point of view, dealing with the increased overlap of the excitation or emission spectra of multiple fluorophores poses a challenge even for experienced researchers. Cross excitation of fluorophores and crosstalk or bleed-through of the emission spectra make it particularly difficult to distinguish between the different signals. Each additional fluorophore on a sample therefore increases the challenge to properly separate each label.

Methods

The STELLARIS confocal platform was designed to serve these applications. The ultra-flexible spectral capabilities enabled by the next generation WLL super-continuum excitation, AOBS, optimized beam path , and up to 5 Power HyD detectors working simultaneously, ensure maximized photon collection coming from every relevant marker.  Spectral unmixing tools integrated in the ImageCompass user interface make the separation of complex fluorophore combinations possible.

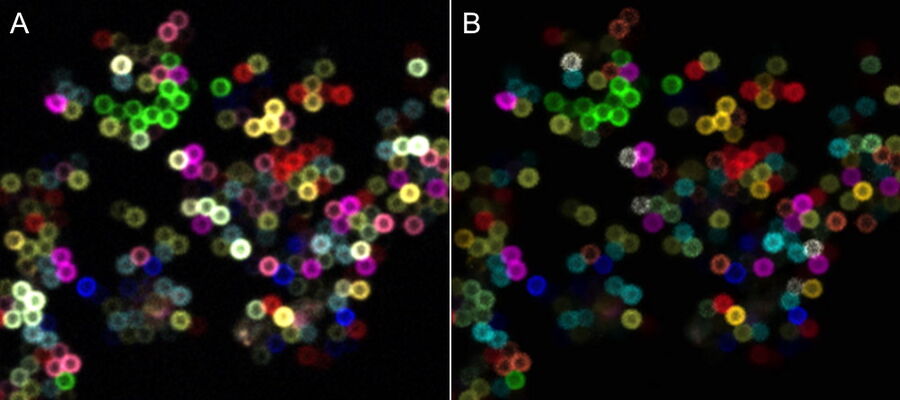

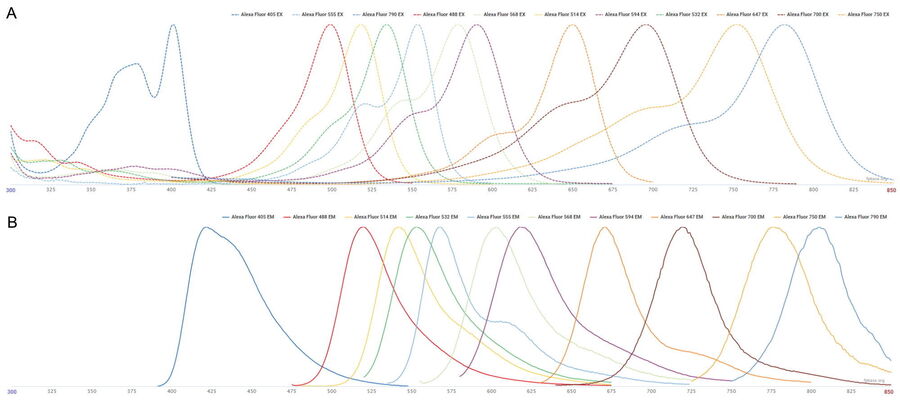

As an example, we outline one approach to image 11 different fluorophores in a single round of staining and imaging. We defined a set of spectrally different fluorophores and separated them by applying the linear unmixing, channel dye separation tool in STELLARIS. To illustrate how this works, we selected a panel of 11 Alexa Fluor (AF) dyes ranging from AF 405 nm to AF 790 nm (Figure 1), conjugated to streptavidin. We then coupled each fluorophore to biotin coated polystyrene beads, purified the beads, and mounted a mixture of them in Prolong Diamond on glass coverslips. The 11-color sample was imaged using a STELLARIS microscope equipped with 5 Power HyD detectors (Figure 2).

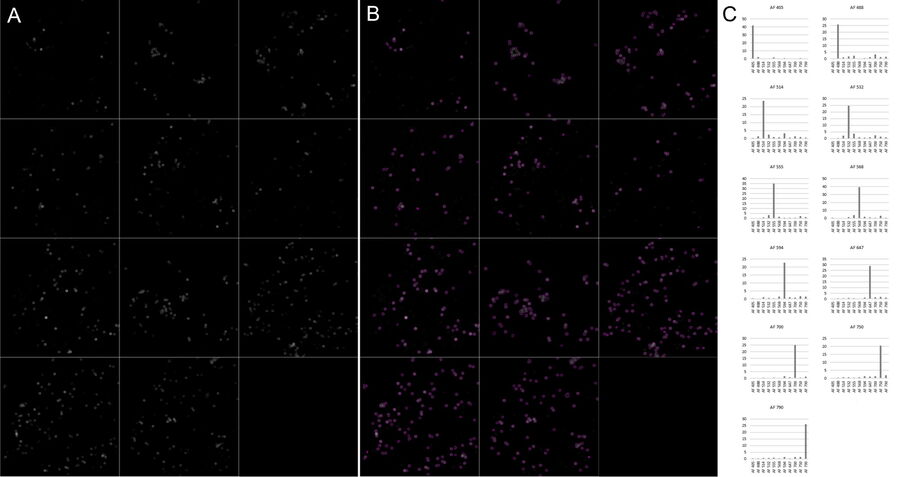

To assess the efficiency of the dye separation, we quantified the crosstalk of each fluorophore on the single beads within the different channels (Fig. 3). In the ideal case, each bead would appear in only one channel, as we labeled them with only one fluorophore. For quantification, we used the Maximum Entropy algorithm9 embedded in the auto thresholding function of Fiji [10]​​​​​​​, segmented the objects (beads, Figure 3A) for each channel (shown as magenta in Figure 3B), and measured the normalized mean intensity in all channels. The normalized mean intensity values are displayed in the histograms (Figure 3C). Our analysis confirms that each fluorophore is assigned to one channel, and the 11 differently labeled beads can clearly be separated into their respective channels.

Video: 11-color beads sample imaged with STELLARIS and the dye separation integrated tools. The biotin-coated beads (nominal diameter 0.8 micron) were labeled with streptavidin coupled to Alexa Fluor dyes. See Figure 2.

Results

The overall result was a successful spectral separation of 11 different fluorophores that were coupled to synthetic beads, exemplifying how the STELLARIS confocal platform provides a unique and powerful opportunity for multiplexing applications.

References

  1. IBEX: A versatile multiplex optical imaging approach for deep phenotyping and spatial analysis of cells in complex tissues. Radtke, A. J. et al., PNAS, 2020. doi: 10.1073/pnas.2018488117.
  2. Multiplexed immunohistochemistry, imaging, and quantitation: A review, with an assessment of Tyramide signal amplification, multispectral imaging and multiplex analysis. Stack, E. C. et al., Methods, 2014. doi: 10.1016/j.ymeth.2014.08.016.
  3. Overview of multiplex immunohistochemistry/immunofluorescence techniques in the era of cancer immunotherapy. Tan, W. C., et al., Cancer Comm (Lond), 2020. doi: 10.1002/cac2.12023.
  4. Spatial omics and multiplexed imaging to explore cancer biology. Lewis, S. M.,et al.,  Nat. Methods, 2021. doi: 10.1038/s41592-021-01203-6.
  5. Spectral Imaging and Linear Unmixing in Light Microscopy. Zimmermann, T., Adv. Biochem. Eng. Biotechnol., 2005. doi: 10.1007/b102216.
  6. Hyperspectral phasor analysis enables multiplexed 5D in vivo imaging. Cutrale, F., et al., Nat. Methods, 2017. doi: 10.1038/nmeth.4134.
  7. PICASSO allows ultra-multiplexed fluorescence imaging of spatially overlapping proteins without reference spectra measurements. Seo, J., et al., Nat. Comm., 2022. doi: 10.1038/s41467-022-30168-z.
  8. FPbase: a community-editable fluorescent protein database. Lambert, T. J., et al., Nat. Methods, 2019. doi: 10.1038/s41592-019-0352-8.
  9. A new method for gray-level picture thresholding using the entropy of the histogram. Kapur, J. N., et al., Computer Vision, Graphics, and Image Processing, 1985. doi:10.1016/0734-189x(85)90125-2.
  10. Fiji: an open-source platform for biological-image analysis. Schindelin, J., et al., Nat. Methods, 2012. doi:10.1038/nmeth.2019.
