DMIL Fluorescence for Fluorescence Cell Culture
The DM IL LED is tailored for phase contrast and fluorescence monitoring of cell cultures and individual cells. With its advanced LED illumination system and precision optics, it supports routine tasks in cell culture labs like confluence estimation and transfection efficiency checks. Elevate your cell culture research with the DM IL LED, providing superior fluorescence capabilities for enhanced visualization and insights into the dynamic of cell cultures.
Components
DMIL Fluorescence for Fluorescence Cell Culture includes: |
Quantity |
|
|---|---|---|
 |
Leica DM IL LED Fluo11521265 |
1 |
|
Condenser S80 / 0.3011521252 |
1 |
|
Eyepiece HC PLAN 10x/20 BR.11507801 |
1 |
|
Filter system GFP ET, s11504174 |
1 |
 |
Microscope Objective HI PLAN I 20x/0.30 PH111506272 |
1 |
|
Microscope Objective HI PLAN CY 10x/0.25 PH111506402 |
1 |
|
Binocular tube HC ILB11521250 |
1 |
|
Eyepiece HC PLAN 10x/20 BR.M11507802 |
1 |
|
Dust cover for DM IL, ILM11512596 |
1 |
|
Adapter sleeve for DM IL and DM100011504127 |
1 |
 |
Microscope Objective HI PLAN 4x/0.10 PH011506408 |
1 |
|
4-fold Lightring Slider for S8011526112 |
1 |
|
CoolLED pE300lite, SB direct11533491 |
1 |
|
U.K. power cord13613902 |
2 |
|
Service Installation9I_CM_CLASS_C |
1 |
Specifications:
Inverted Microscope for incident fluorescence with transmitted light LED illumination for Bio-Medicine Applications.
- Fixed stage on 3 point support
- Coaxial double knob for coarse and fine focus on both sides
- 4-fold revolving nosepiece with 25x075 objective thread
- Build in fluorescence illumination axis with manual shutter
- Fluorescence slider with 3 positions for filter blocks
- Fluorescence port for exchangeable lamp houses (e.g. 50W Hg# 100W Hg)
- Infinity optics with tube lens 1x
- Interface for exchangeable observation tube and phototubes
- Condenser holder stepless adjustable, including collector, aperture diaphragm and filter holder
- Illuminated ON/OFF switch
- IMC- Interface
- Power supply for TL LED illumination, including mains cable

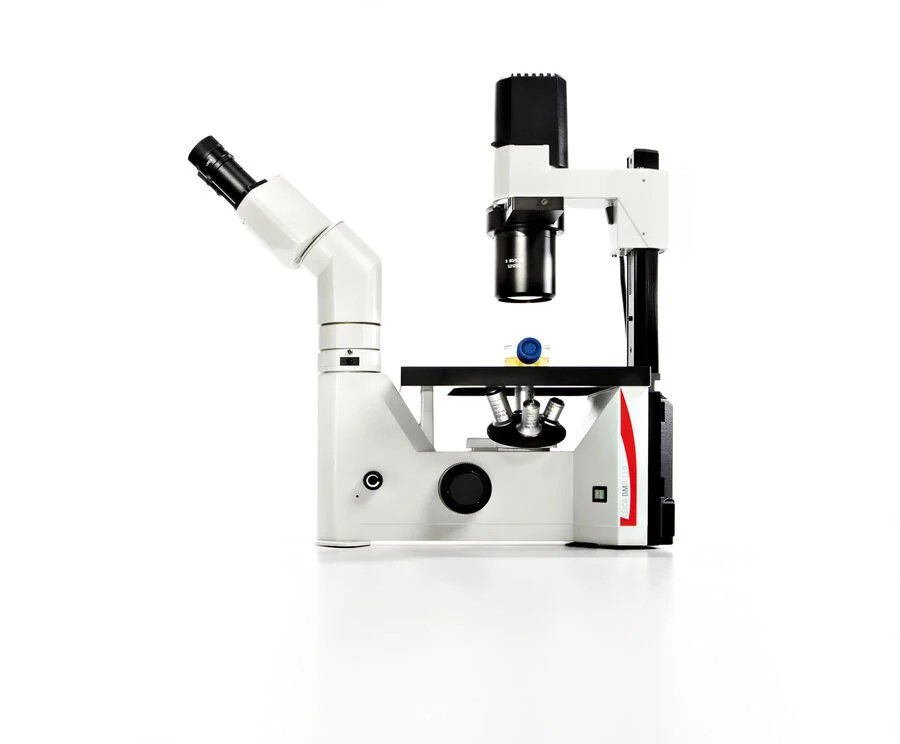

DM IL LED Inverted Laboratory Microscope
Ideal for cell culture, micromanipulation, documentation of immunostained specimens, and routine live cell examinations. Monitor your specimen the way you need: Phase contrast, modulation contrast and fluorescence are just one fingertip away.
Robust stability, plenty of space to work with tools, long working distances to accommodate large culture flasks and a stable illumination without heat make work at the microscope easy and convenient.
For special diagnostics requirements, the microscope is certified for in-vitro-diagnostics (IVD) including in-vitro-fertilization (IVF).
