MZ10F for Fluorescence Sorting
The MZ10-F stereo microscope is a cutting-edge instrument designed for precision and clarity in microscopic observation. With its advanced optics and ergonomic design, this microscope is particularly well-suited for cell sorting applications. Delivering exceptional image quality and versatility, the MZ10-F enhances the efficiency and accuracy of cell sorting processes, making it an indispensable tool for researchers and professionals in the field of life sciences.
Components
MZ10F for Fluorescence Sorting includes: |
Quantity |
|
|---|---|---|
 |
Leica MZ10 F optics carrier10450103 |
1 |
|
Eyepiece 10x/23B, adj., eyeglasses10447137 |
2 |
|
Focus drive coarse/fine 420mm M-series10450504 |
1 |
|
Microscope carrier for MZ-Series10450104 |
1 |
|
Dust cover (40 x 35 x 75 cm), antistatic10450287 |
1 |
|
TL3000 Ergo10450690 |
1 |
|
ST Adapter column on TL Bases10450242 |
1 |
|
Microscope Objective HC PL APO 1.0x M-series10450028 |
1 |
|
Filter set ET GFP - MZ10F10450588 |
1 |
|
Leica LED5000 SLI10450548 |
1 |
|
Clamp-combi light guide - highend M-ser10450205 |
1 |
|
Coupling for fluid light guide, EL600010447399 |
1 |
|
pE 300 white MB11504264 |
1 |
|
Inclined binocular tube 45° M-Series10450252 |
1 |
|
Fluid light guide Ø3x2000mm / series 38011504269 |
1 |
|
U.K. power cord13613902 |
3 |
|
Service Installation9I_SM_CLASS_D |
1 |
- Magnification range: 8x-80x (1.0x objective, 10x eyepieces)
- Click stop zoom settings
- Triple Beam TM: Separate illumination beam path for fluorescence
- Four position fluorescence filter turret
- Objective thread M65
- 10:1 zoom range with high numerical aperture of 0.125 for excellent representation of small structures
- TripleBeam™, Leica’s patented separate beam path for extremely intense fluorescence illumination
- FLUOIII™, Leica’s patented, 4-position, rapid change filter system
- Wide range of standard filters and availability of custom filters for almost any fluorescence technique
- Comprehensive user protection against UV radiation
- Innovative contrast possibilities with Leica’s high-performance transmitted light bases
Features

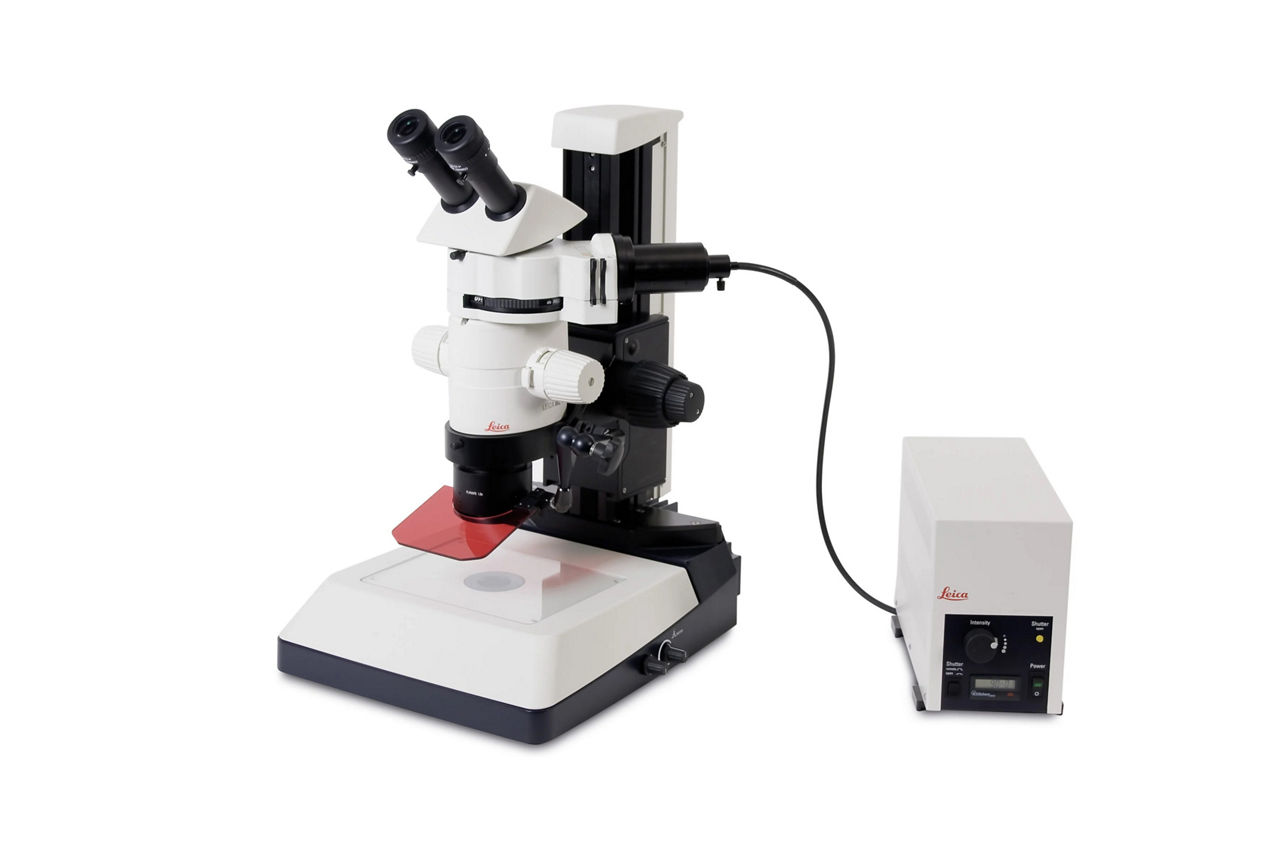

MZ10 F Modular Stereo Microscope
The Leica MZ10 F modular stereo microscope with 8x-80x magnification and 375 Lp/mm high resolution provides triple beam technology, which designates a separate beam path specifically for fluorescent illumination for high contrast and detailed fluorescent imaging.
With the FLUOIII™ rapid filter changer, which allows fast interchange between triple beam standard or custom filter sets, the Leica MZ10 F is the ideal tool for fluorescence applications such as gene expression studies or developmental biology applications.
