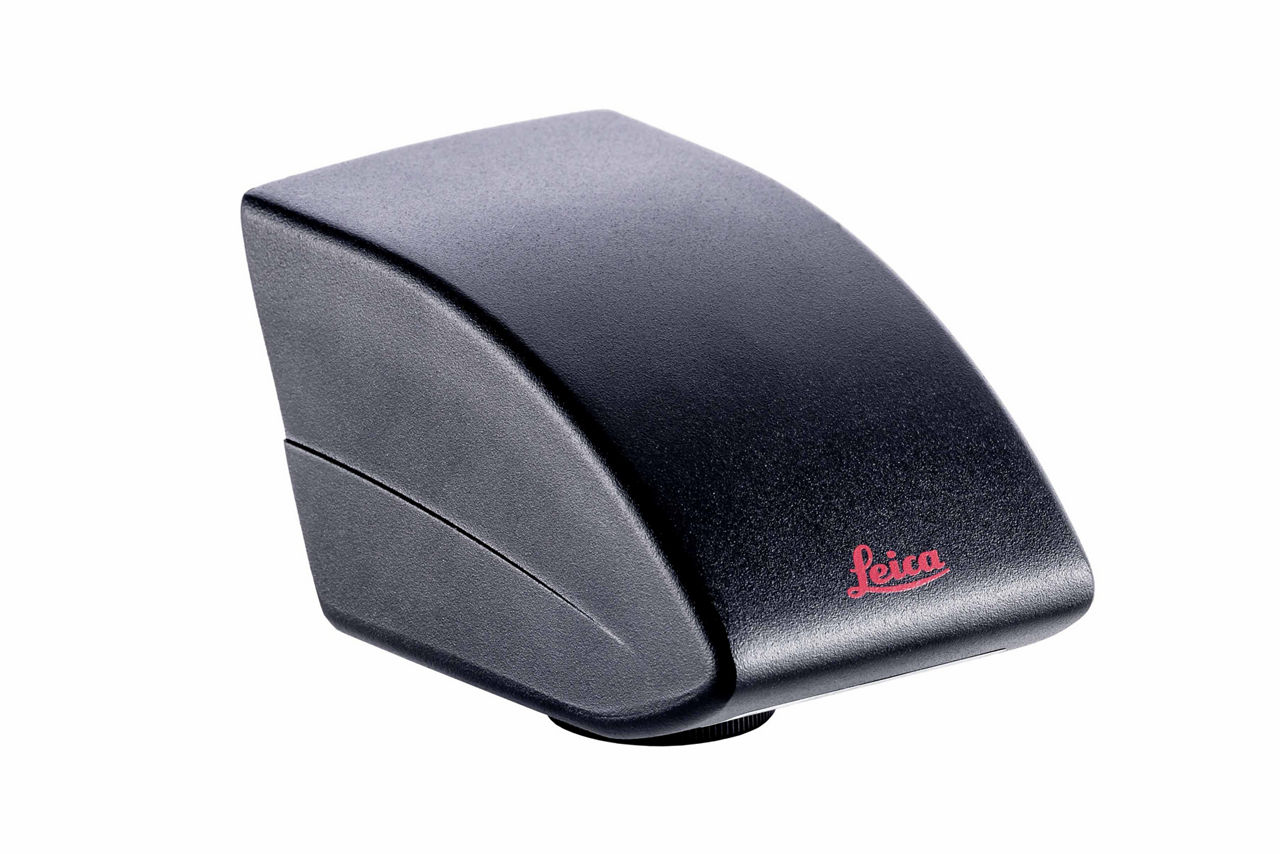

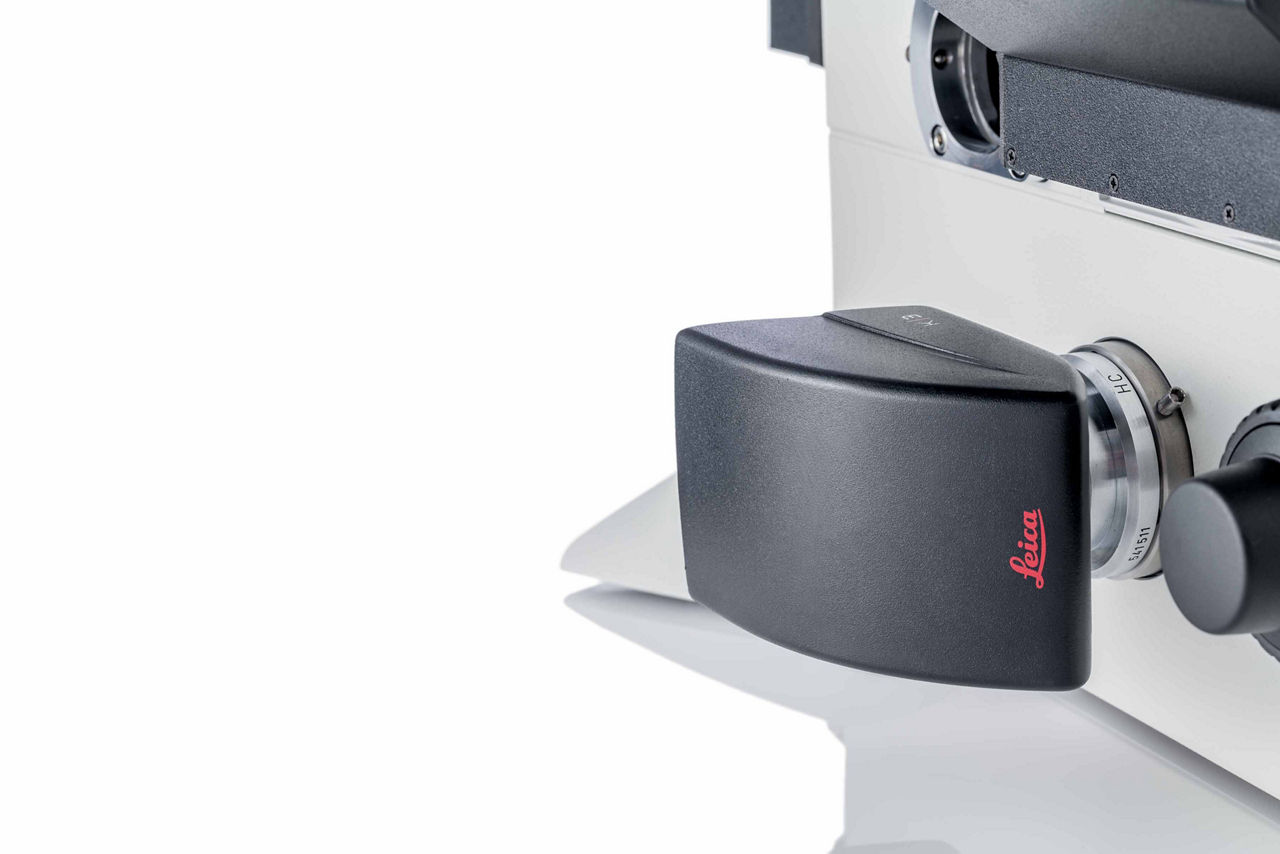

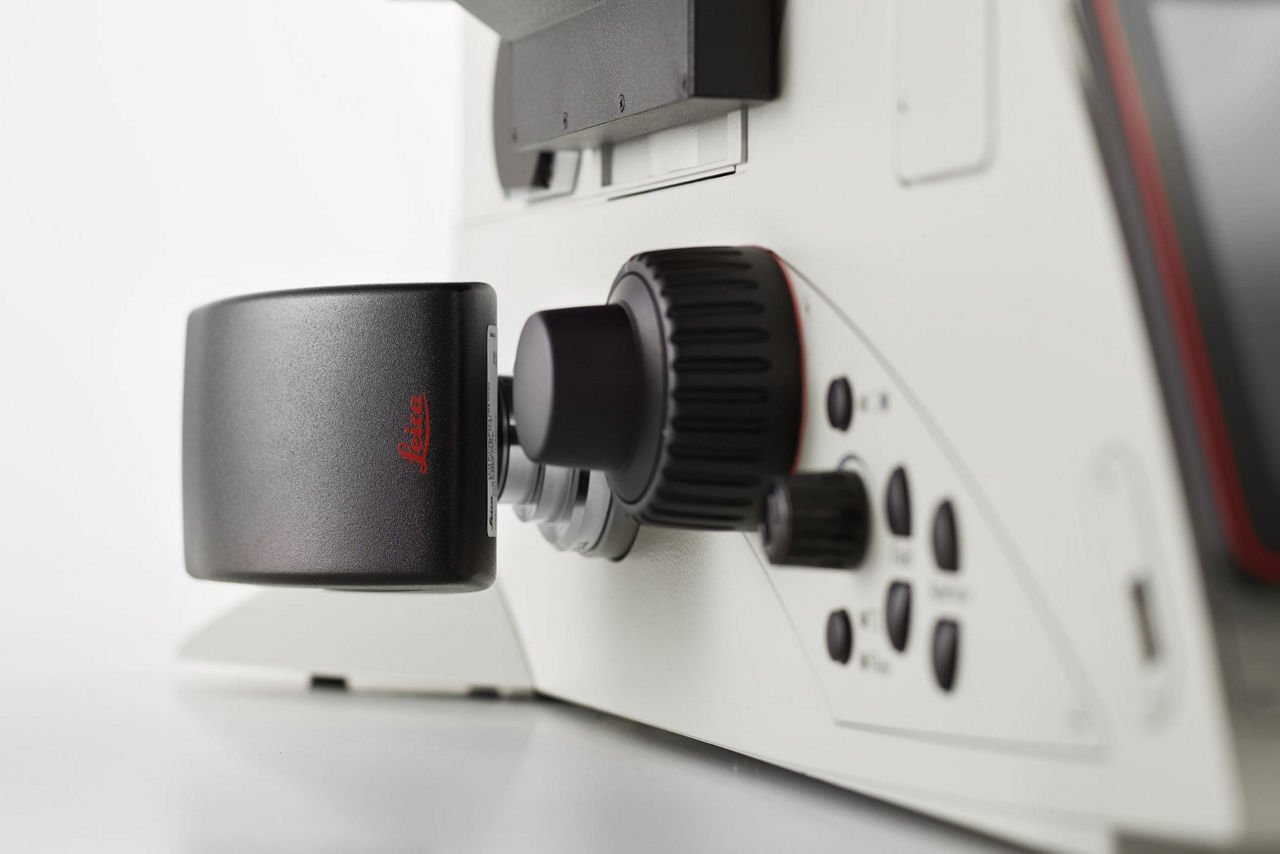

Leica K3M
A 6.3 MP monochrome camera that delivers a well-balanced feature set with high frame rates, good dynamic range for life science applications. It's ideal for imaging fixed fluorescently labelled sampled like tissue and cells. K3M supports hardware triggering for high-speed scanning imaging experiments.
- Monochrome CMOS sensor
- Pixel size 2.4 µm x 2.4 µm
- Bit depth 12 bits
- Exposure time 1 ms - 1 s
- Dynamic range >72 dB
- Fast live image 3072 x 2048 pixel with up to 21 frames per sec (hardware-triggered and depending on the bit depth, exposure time and PC performance)
- Gain 1x - 251x
- Supported operating systems Win10
Recommended c-mount adapters:
Stereo Microscope: 0.50x No 10450528
Compound Microscope: 0.55x No: 11541544
Interface: USB3
The K3M camera kit includes camera head, USB3 cable with screw-lock connectors, DVD with instruction for use, and a quick start guide.
K3C & K3M The Microscope Camera K3 series
The K3 color and monochrome cameras are your solutions for fast and reliable analytical tasks typically done for life science, industrial, and clinical applications. These cameras empower you to image a vast range of challenging samples with color-brightfield and fluorescence microscopy. Examples include fluorescently labeled and stained tissues and cells, particles for cleanliness analysis, steel, and forensic evidence.
