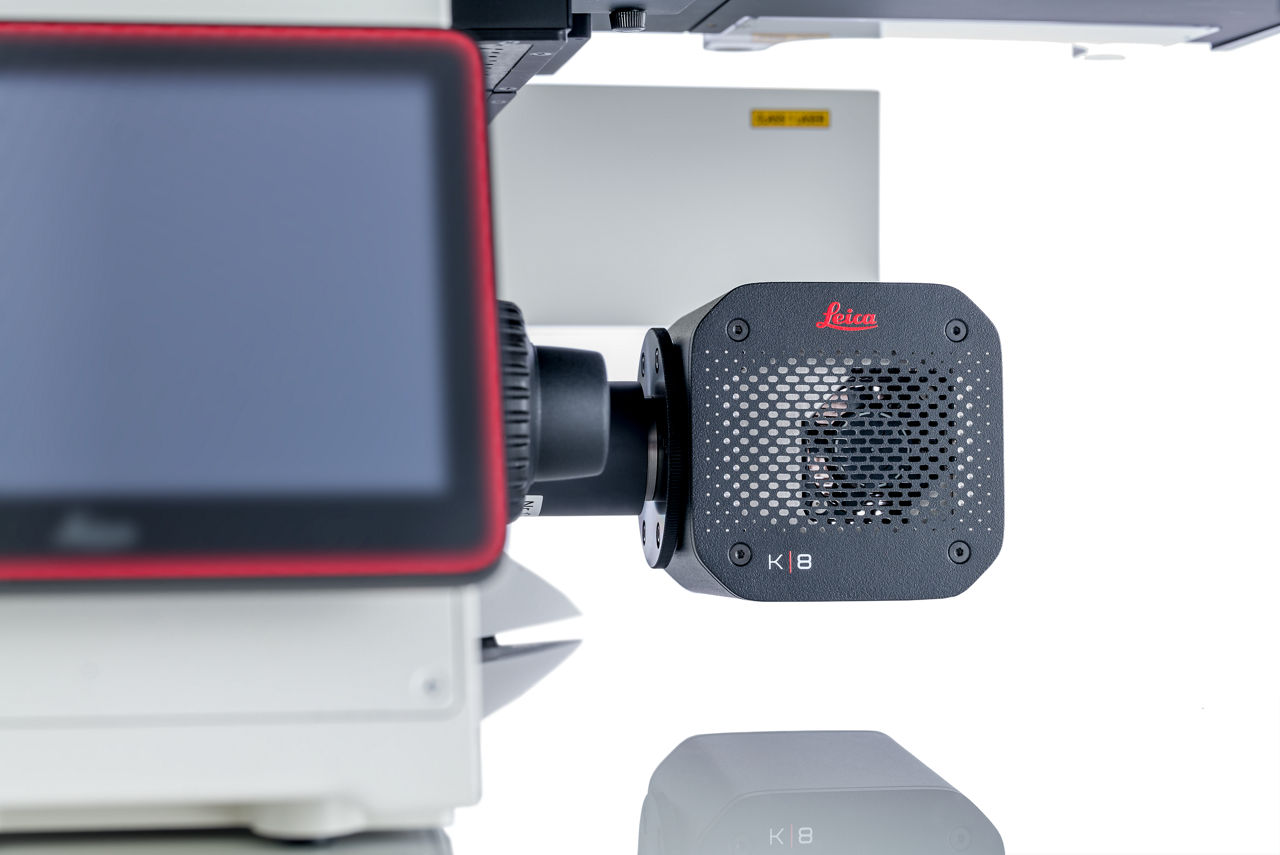

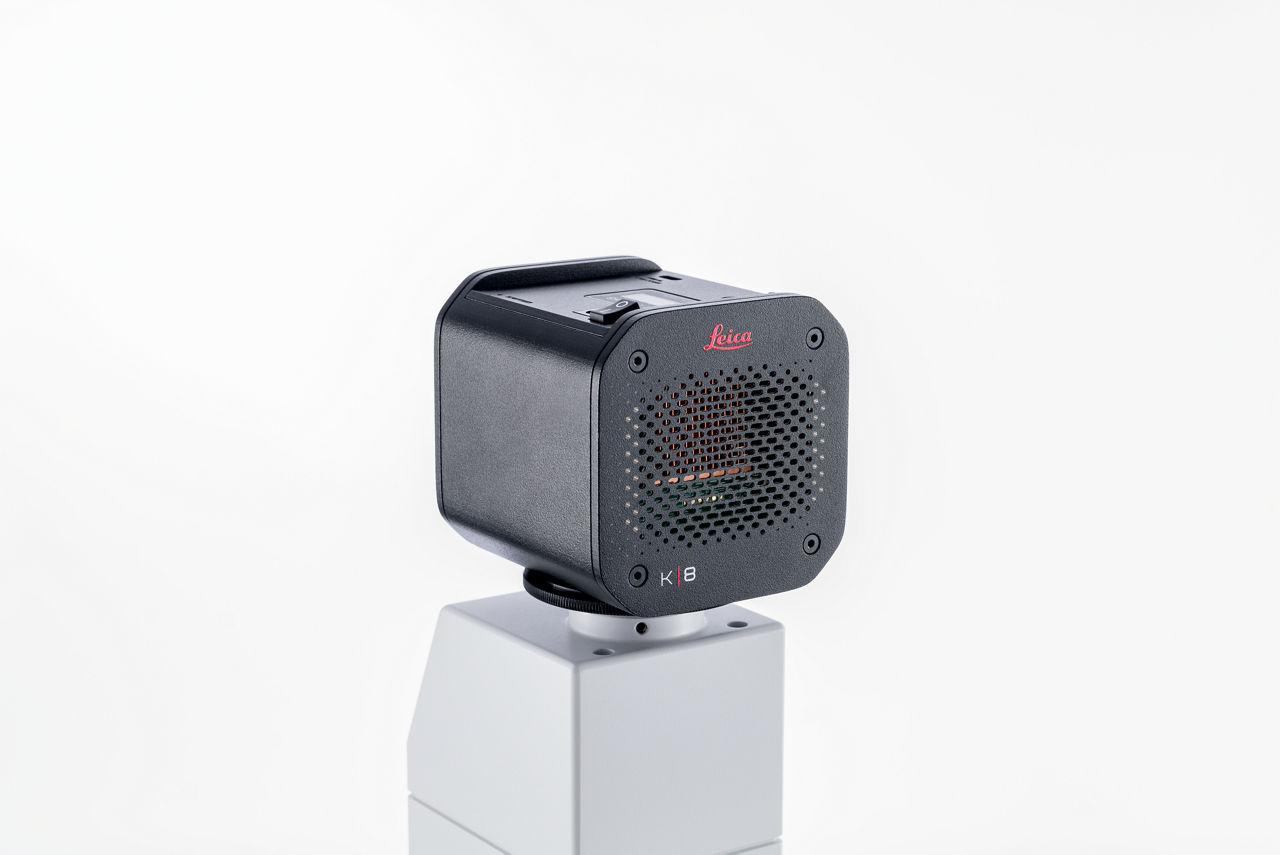

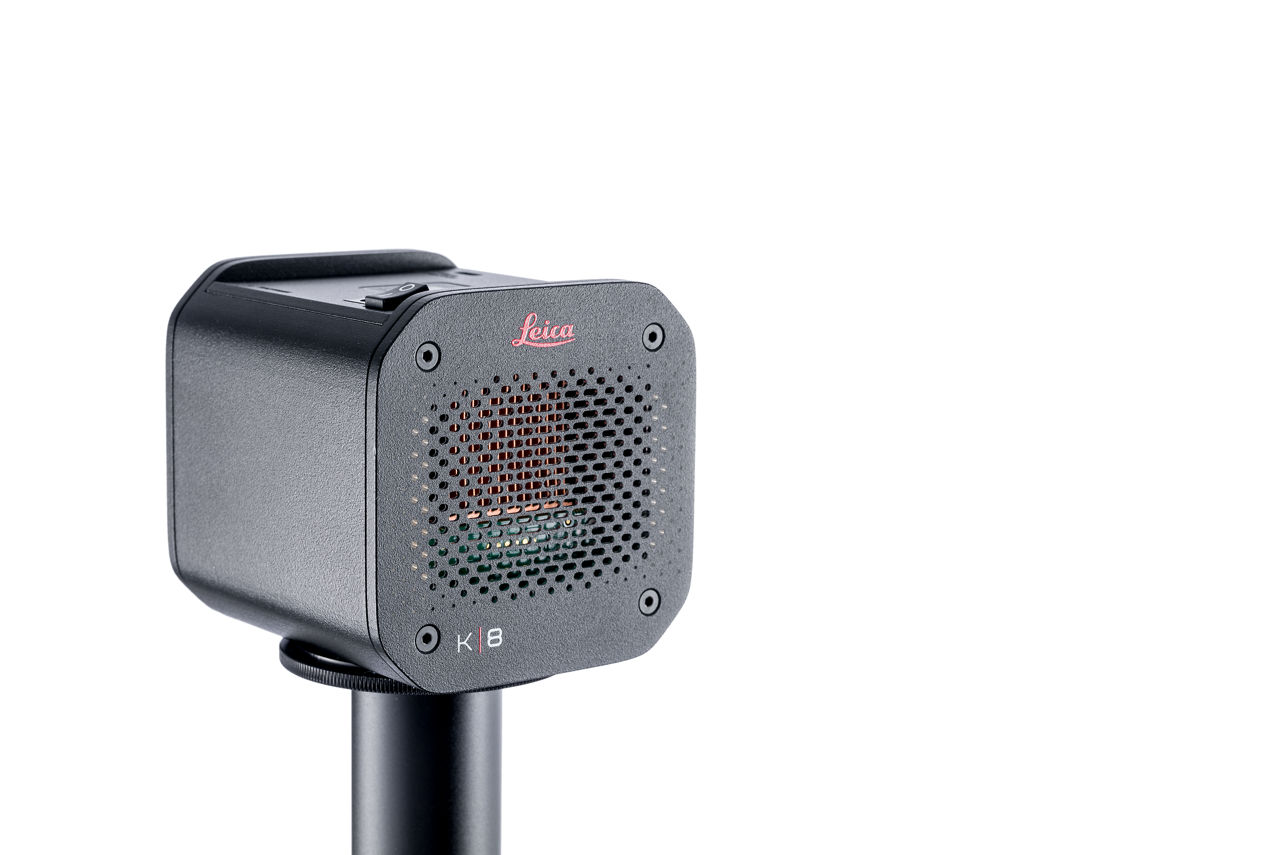

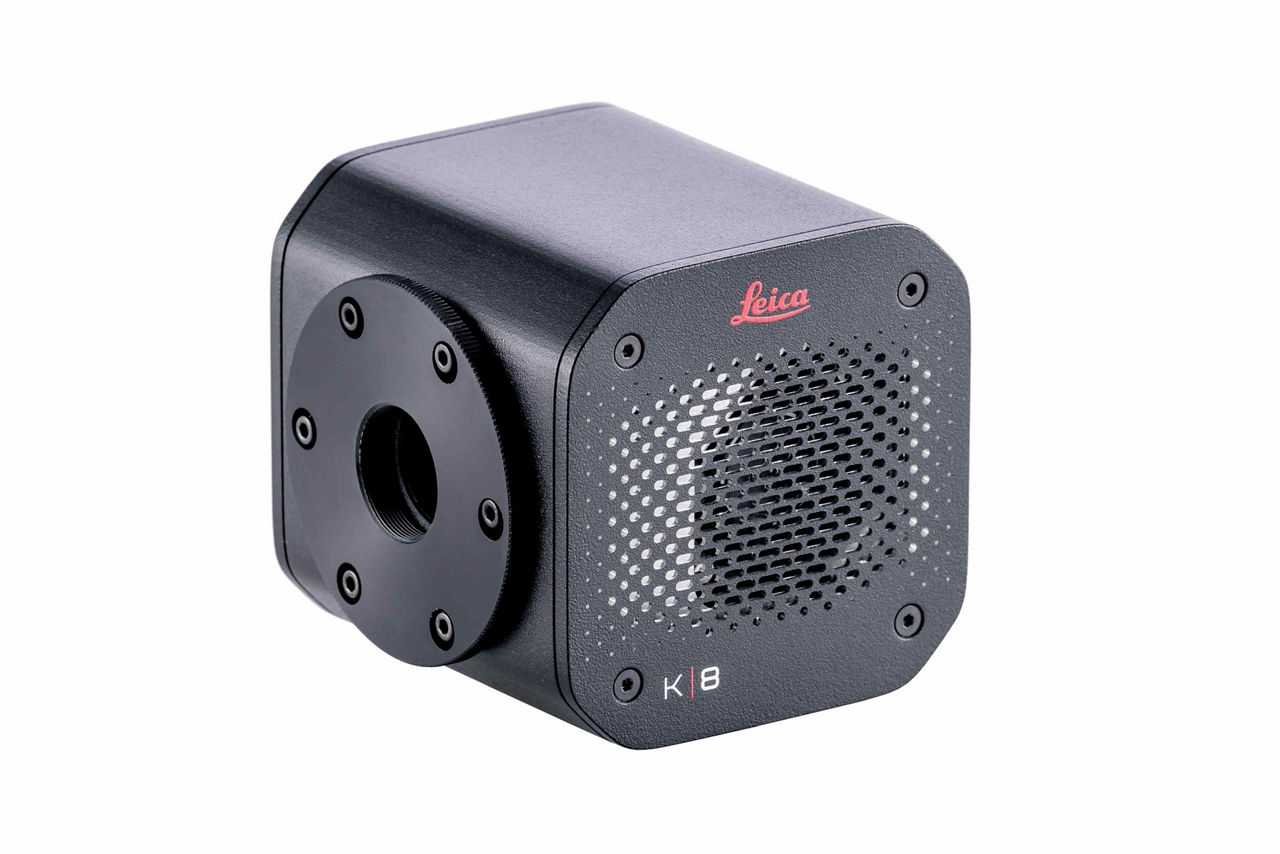

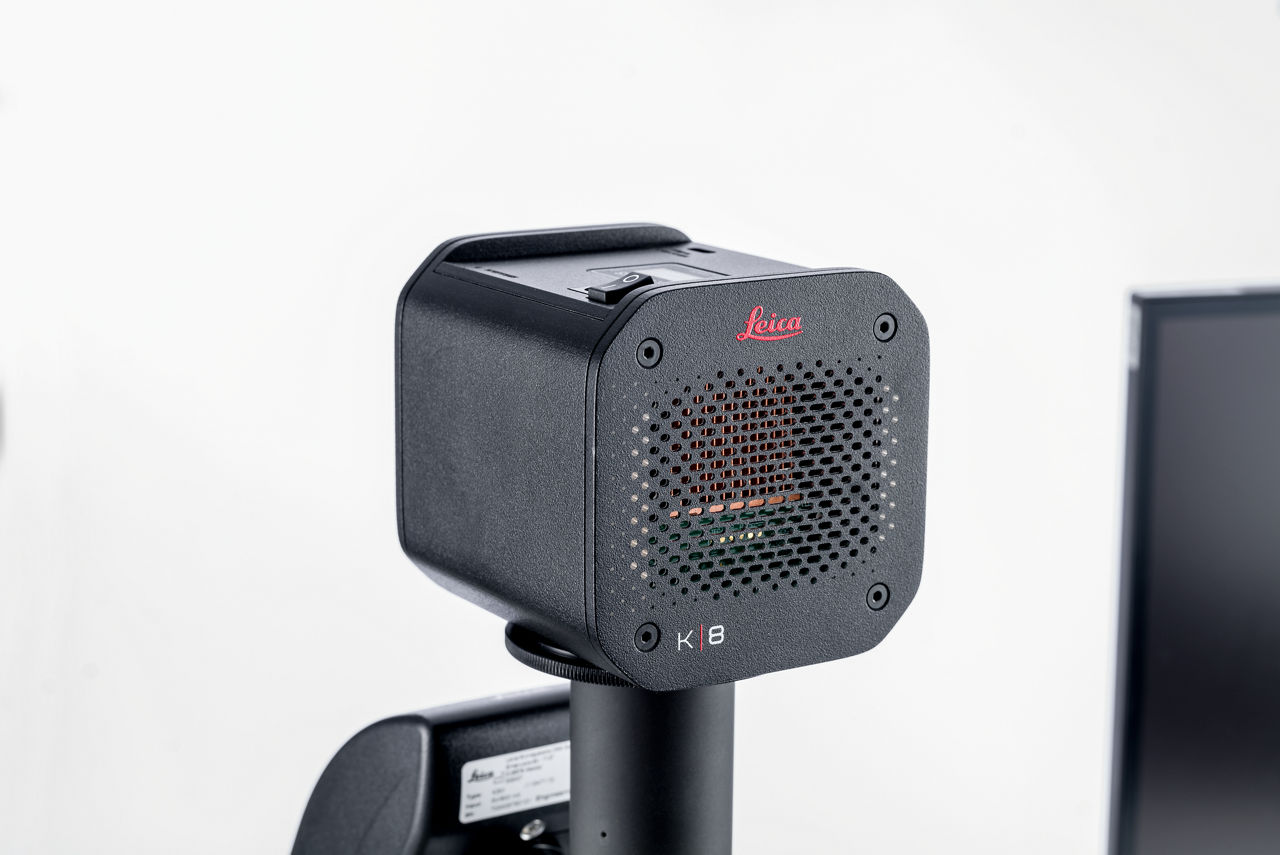

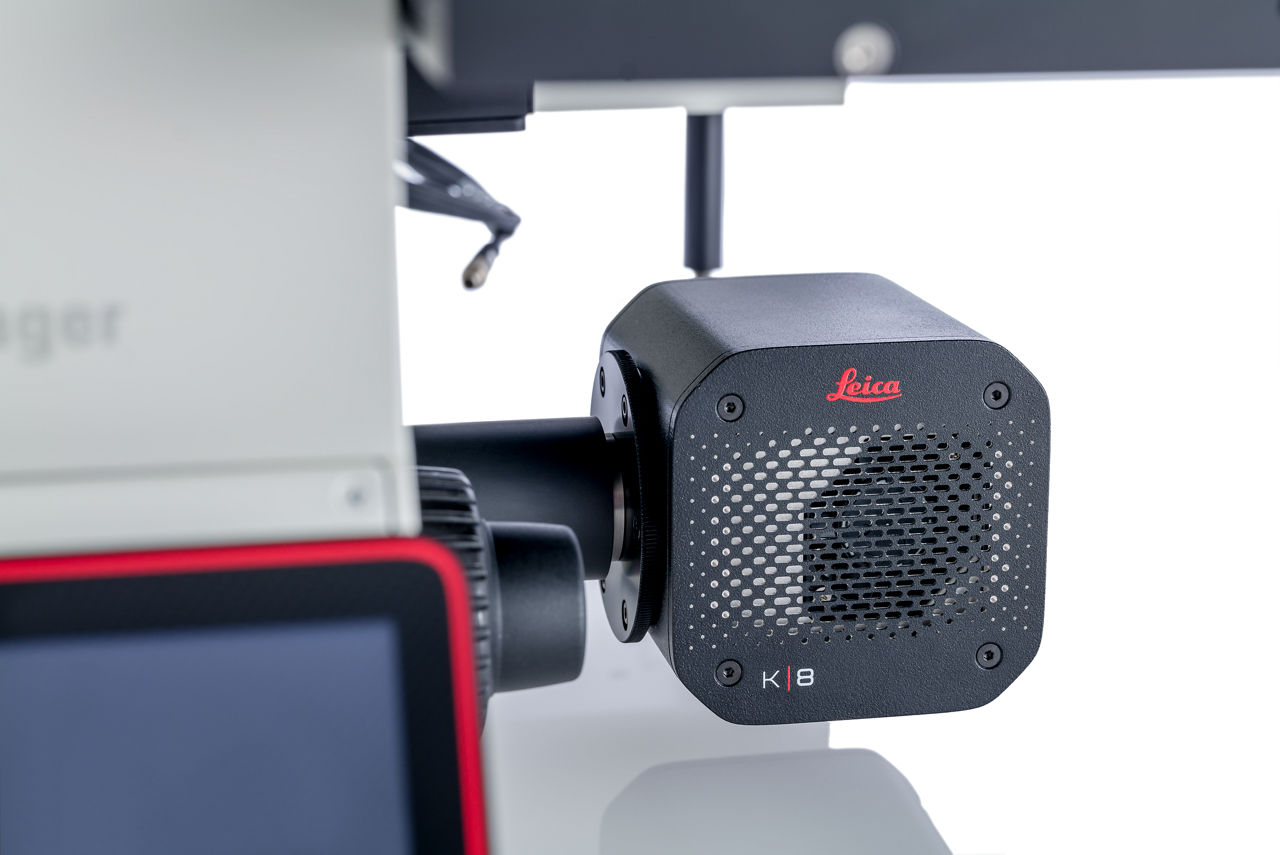

K8 Scientific CMOS Camera
The K8 is a cooled 4.2 MP sCMOS camera with a 95% peak quantum efficiency (QE) offering up to 95 frames per second acquisition speed at full resolution, with an extremely low read noise (1 e- median). Based on cutting-edge Gpixel scientific CMOS sensor technology with a pixel size of 6.5 µm (18.8 mm sensor diagonal) and an extended dynamic range of 25000:1, this monochrome fluorescence camera is perfectly suited for demanding fluorescence applications.
- Pixel: 2048 x 2048 (4.2 Megapixel)
- Pixel size: 6.5 µm
- QE: 95% max at 580nm
- Cooling: Air cooled (-5°C)
- Bit depth: 8//11/12/16 bit
- Fps: up to 95 fps
- Binning: 2 x 2
- Interface: USB3.2 Gen2
The K8 camera kit includes camera head, USB3.2 cable and PCIe board, power supply, Leica DVD with camera manual, and a quick start guide
K8 Scientific CMOS Camera
The K8 Scientific CMOS microscope camera offers a cutting-edge solution for the most challenging live-cell experiments. In an environment where sensitivity is everything, the K8 camera helps you capture more data* from your sample, thanks to a 95% quantum efficiency (QE) back-thinned CMOS sensor.
The K8 allows you to capture razor-sharp THUNDER images even in extreme low light imaging conditions, helping you to realize the full potential of your system. The K8 camera’s combination of extremely low read noise, minimal sensor artifacts and high QE allows you to extract quantifiable data from your sample while exposing it to the minimum of phototoxicity.
Gain the confidence to push the limits of your experiments with cutting edge sensor technology. Whether you need to capture stunning high-resolution images, carry out extreme low-light tracking of subcellular organelles or image high-speed cellular processes, the K8 can handle a wide range of challenging applications.
