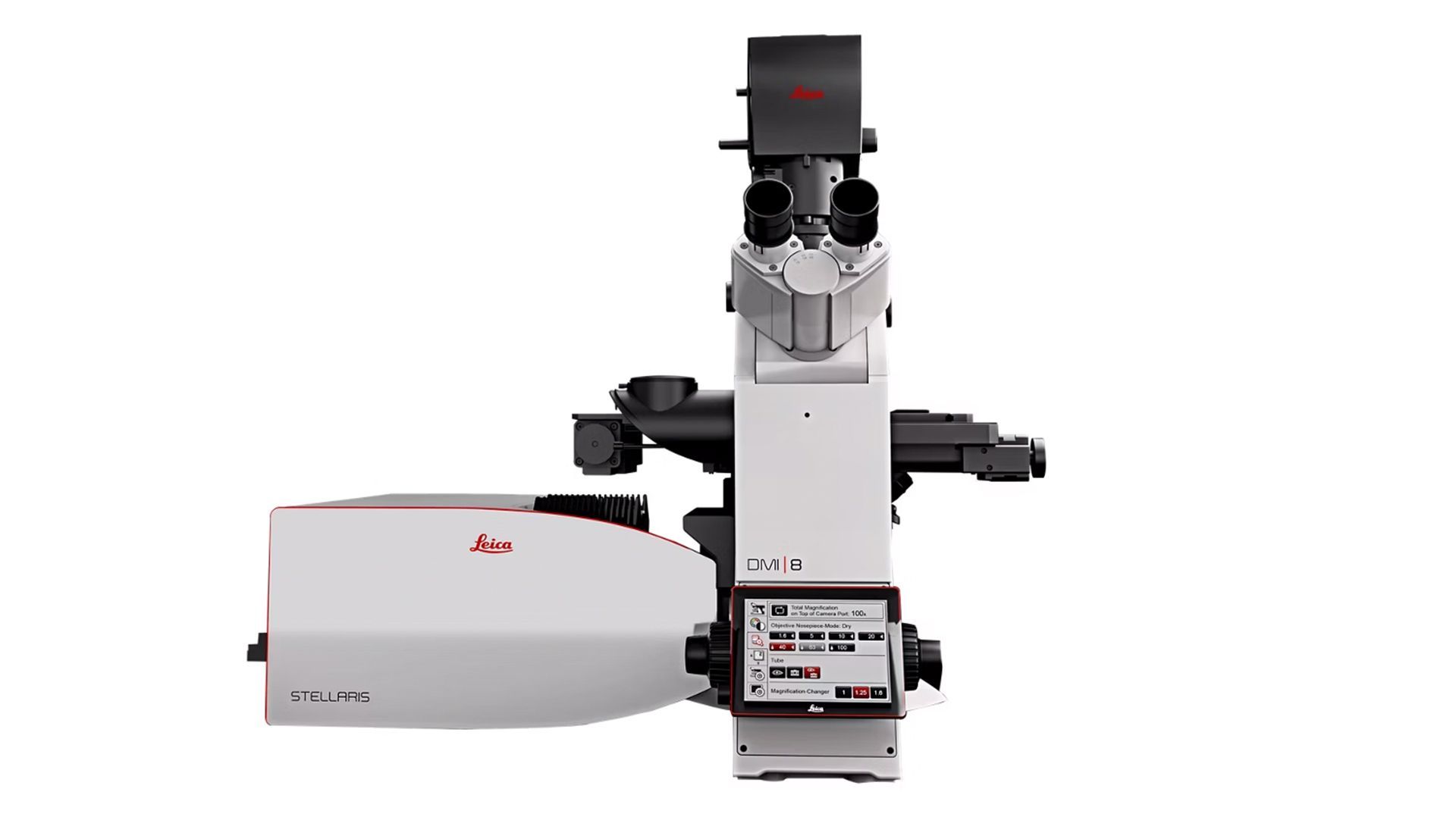

STELLARIS Personal Confocal Microscope
STELLARIS Personal Confocal Microscope
Freedom to Image. Power to Discover.
Take control of your imaging — on your budget and on your schedule. Unlock the power of high-quality imaging without high costs or steep learning curves.
STELLARIS is a true confocal point scanning system with AI Denoise, Spectral Detection, Photon Counting Detectors, and Confocal Super Resolution! You can also increase productivity by integrating additional modalities — such as Autonomous Microscopy, API, SmartCORR, Digital Light Sheet, and more — into the STELLARIS platform.
Leica Microsystems is proud to support your research with a fully equipped confocal microscope with 2 Power HyD S detectors and 1 Power HyD N detector, 3 VIS Laser Lines, 405 nm Laser, Motorized X-Y Stage, and Confocal LIGHTNING Super Resolution package. You can also upgrade with additional detectors (up to five in total) or add lasers and other options based on your current or future needs.
Request a Quote Today!
Built In Intelligence That Works for You:
STELLARIS now introduces built in intelligence to enable smarter, sharper, and more efficient confocal imaging performance.
Smart AI Denoise: On the fly, AI based denoising improves spatial and temporal signal and contrast during acquisition.
Smarter Photon Detection Efficiency: The latest addition to the Power HyD detector family, Power HyD N, supports demanding multiplexed experiments under physiological conditions by enabling fast, high sensitivity detection in the far red and NIR range while minimizing dark noise.
SmartCORR: Achieve sharper imaging in thick or dense samples with intelligent, adaptive correction of refractive index mismatches.
Smart Microscopy: Combine intelligent detection, customized workflow implementation, and optimized data acquisition to reduce user dependency and improve reproducibility.
Components
STELLARIS Personal Confocal Microscope includes: |
Quantity |
|
|---|---|---|
 |
STELLARIS LIA Core158409922 |
1 |
|
STELLARIS Power cable Zone 2158209011 |
1 |
|
Power HyD N SP Pos 4158301344 |
1 |
|
Control panel with LCDs158004752 |
1 |
|
LAS X Dye Finder158203206 |
1 |
|
LAS X Lightning Expert158203204 |
1 |
|
FOV Scanner STELLARIS158301130 |
1 |
|
SP Light Trap158201310 |
1 |
|
LIAchroics RGB158209433 |
1 |
|
Closed Loop Focus158204201 |
1 |
|
Base Plate DMi8158000640 |
1 |
|
Light source EL 6000158000672 |
1 |
|
Filter Cube GFP15525314 |
1 |
|
Scanning stage inv. universal158004141 |
1 |
|
Cable Scanning Stage, 3 m, 90°15500332 |
1 |
|
XY advanced board for scanning stage15525226 |
1 |
|
Univ.hold.frame K:0311.20015600234 |
1 |
|
Optical Table 750 x 900 actively damped158002407 |
1 |
|
High Brilliance Monitor flat158003151 |
1 |
|
Workstation Gold158203115 |
1 |
|
Computer table small158204710 |
1 |
|
Air Compressor IR opt. table act. 110V158002406 |
1 |
|
Microscope Objective HC PL APO 10x/0,40 CS211506424 |
1 |
|
Microscope Objective HC PL APO 63x1,40 OIL CS211506535 |
1 |
|
Type F Immersion liquid, ISO 803611513859 |
1 |
|
Service Installation9I_LL_STELLARIS_B |
1 |
|
Confocal Training Class B9T-CLSM-APP_CLASSB |
1 |
Specifications:
- Laser Set: 405nm, 488nm, 561nm, 638nm
- 2 Power HyD S and 1 Power HyD N detectors with full control of the spectral range of each detector
- High resolution FOV galvo scanner
- High light transmission scan optics
- Lightning Super Resolution to every detector (120 nm XY and 200 nm Z)
- With Bright Field detector
- Objective Lens set: 10X APO,63X APO Oil
- CUDA Workstation, with flat monitor
- PC Table
- LAS X Software
- Automatic Dye Separation

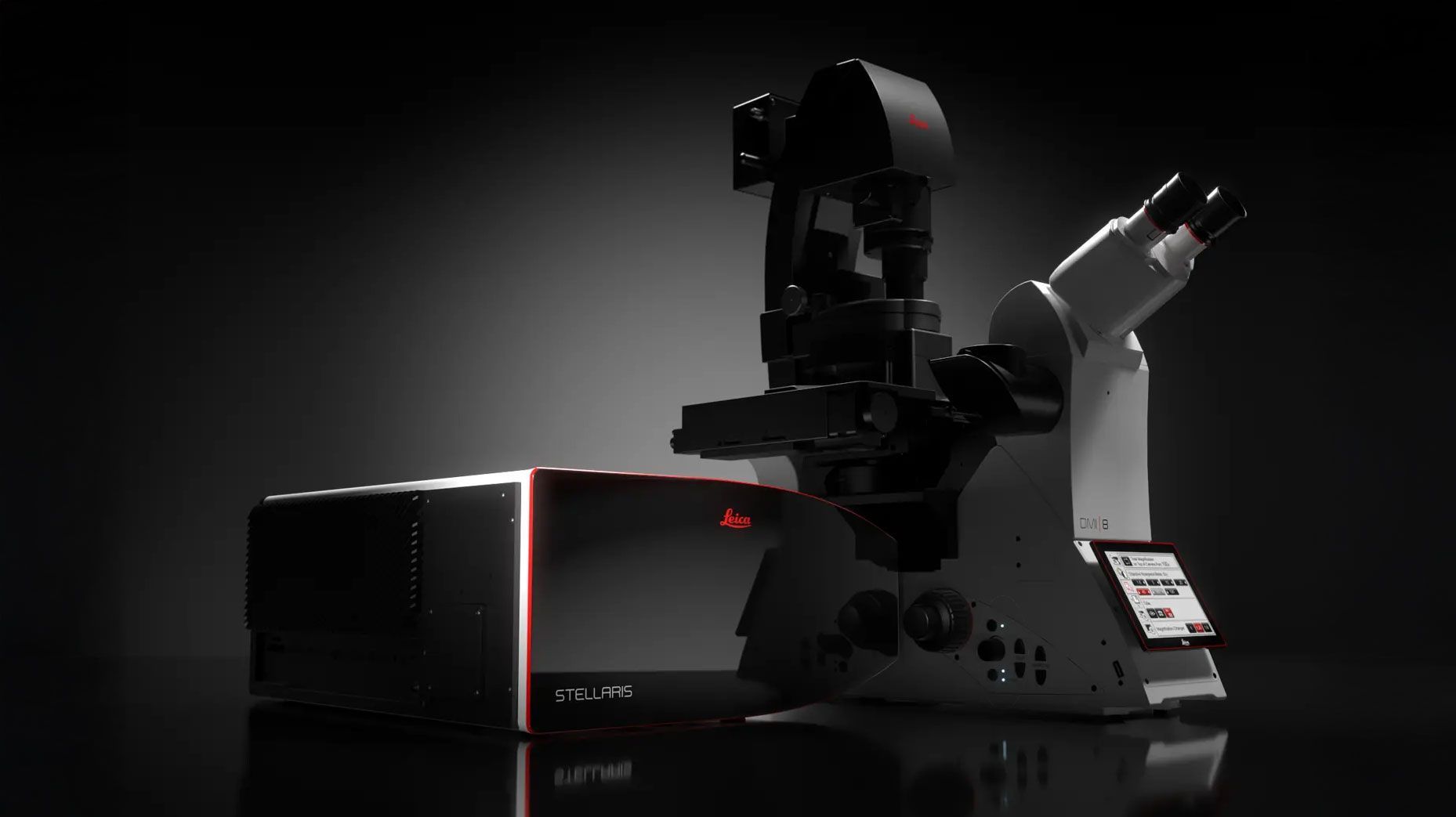

STELLARIS Confocal Microscope Platform
Next generation STELLARIS is a confocal microscope platform designed around your research needs.
STELLARIS confocal microscopes can be combined with all Leica modalities, including FLIM, STED, MP, DLS, and CRS. The next generation STELLARIS confocal platform is your fast track to rewarding research. Power. Potential. Productivity.
