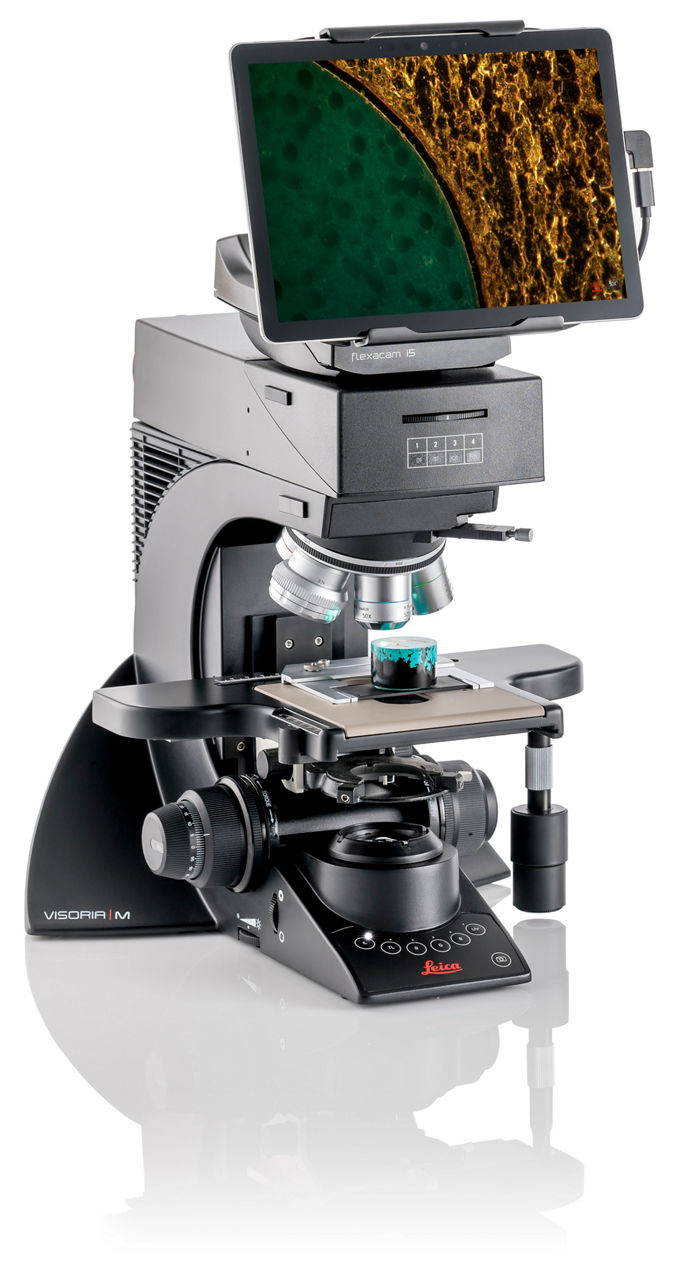

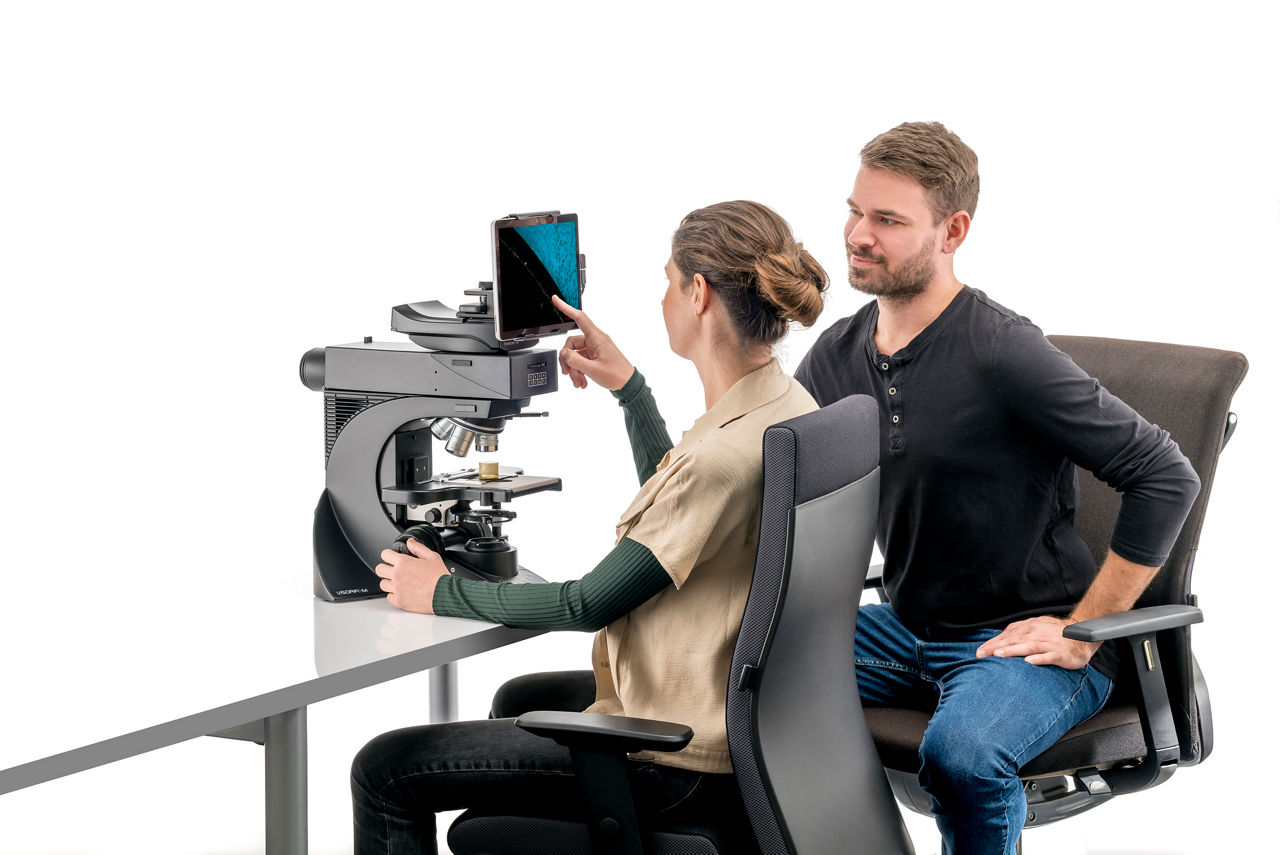

Visoria M Digital Materials Microscope for Inspection and Measurement of Fine Details and Surface Structures
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria M materials microscope is for applications performed in the metal, electronics, and polymer industries as well as for materials science labs. Streamline your workflows with encoded functions, optimized light settings, and other microscope features. You can also be more comfortable and minimize strain thanks to the microscope’s ergonomic design. This configuration includes the Visoria M digital materials microscope and is suited for the inspection and measurement of fine details of samples and surface structures of samples.
Components
Visoria M Digital Materials Microscope for Inspection and Measurement of Fine Details and Surface Structures includes: |
Quantity |
|
|---|---|---|
 |
Visoria M11561614 |
1 |
|
Ground plate11561609 |
1 |
|
Focus drive 3-step für M/P11561607 |
1 |
|
Focus knobs for Visoria11561608 |
1 |
|
IL axis, 4-fold11561600 |
1 |
|
Lamp housing LH113 LED11504199 |
1 |
|
Dust cover DML/2000/2500/3000 Fluo/Photo11501074 |
1 |
|
11888703-leica11888703 |
1 |
|
Slide holder IND11888711 |
1 |
|
Reflector BF, fixed11888716 |
1 |
|
Reflector DF DM8000/DM1200011888740 |
1 |
|

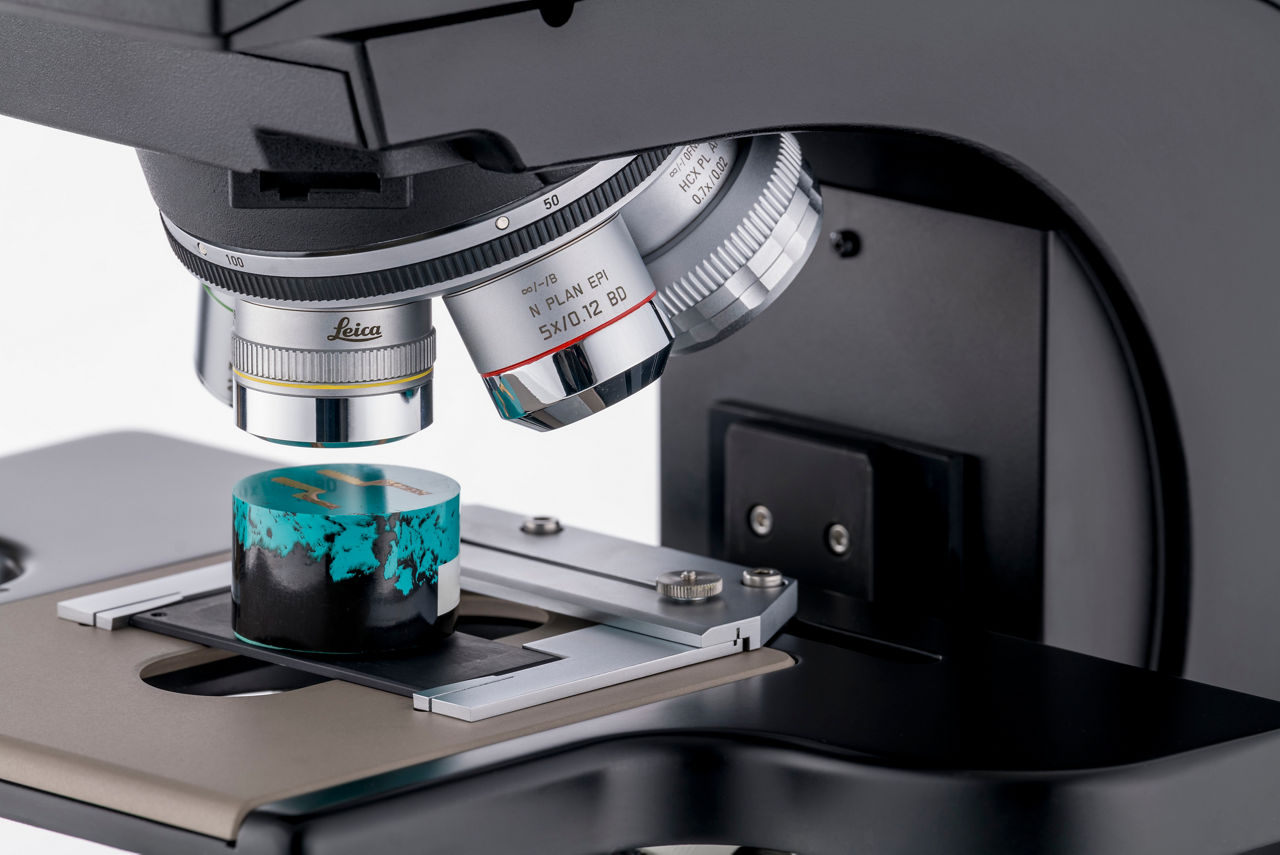

Microscope Objective N PLAN EPI 5x/0,12 BD11566077 |
1 |
|
Microscope Objective N PLAN EPI 10x/0,25 BD11566083 |
1 |
|
Microscope Objective N PLAN EPI 20x/0,40 BD11566067 |
1 |
|
Microscope Objective N PLAN EPI 50x/0,75 BD11566074 |
1 |
|
Microscope Objective N PLAN EPI 100x/0,85 BD11566075 |
1 |
|
Power supply for Flexacam i5 (Compound)12730603 |
1 |
|
Flexacam i5 (Compound)12730537 |
1 |
|
Surface Go Kit11561617 |
1 |

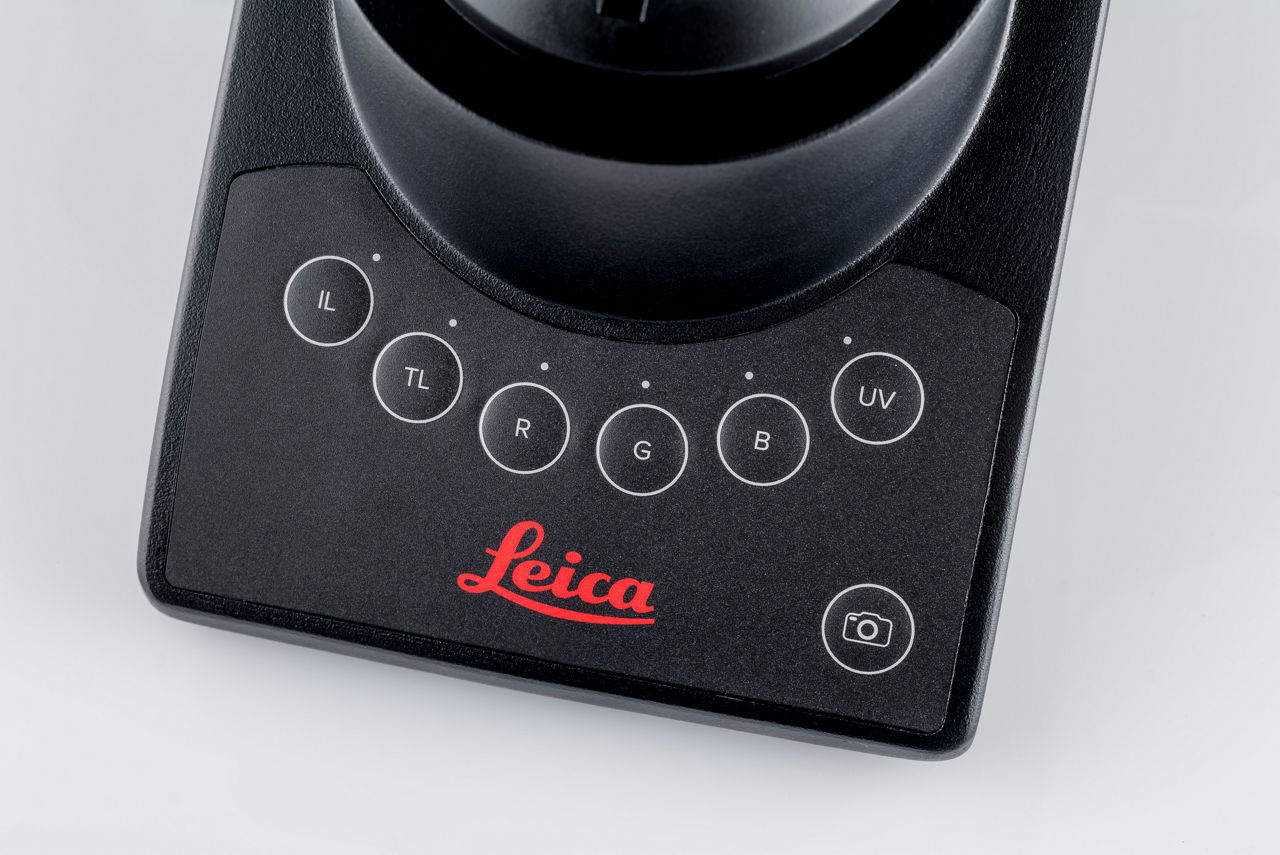

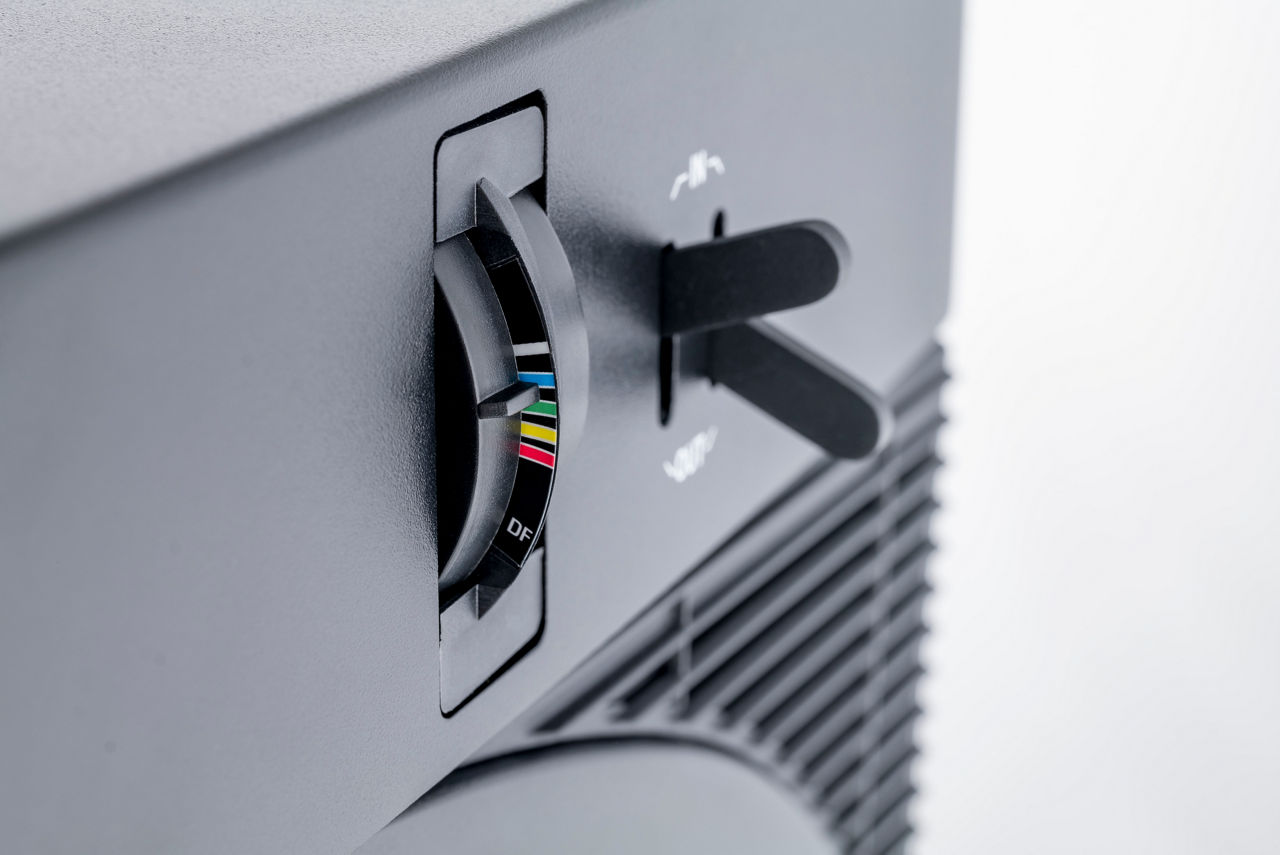

- Visoria M Digital Materials microscope with illumination management

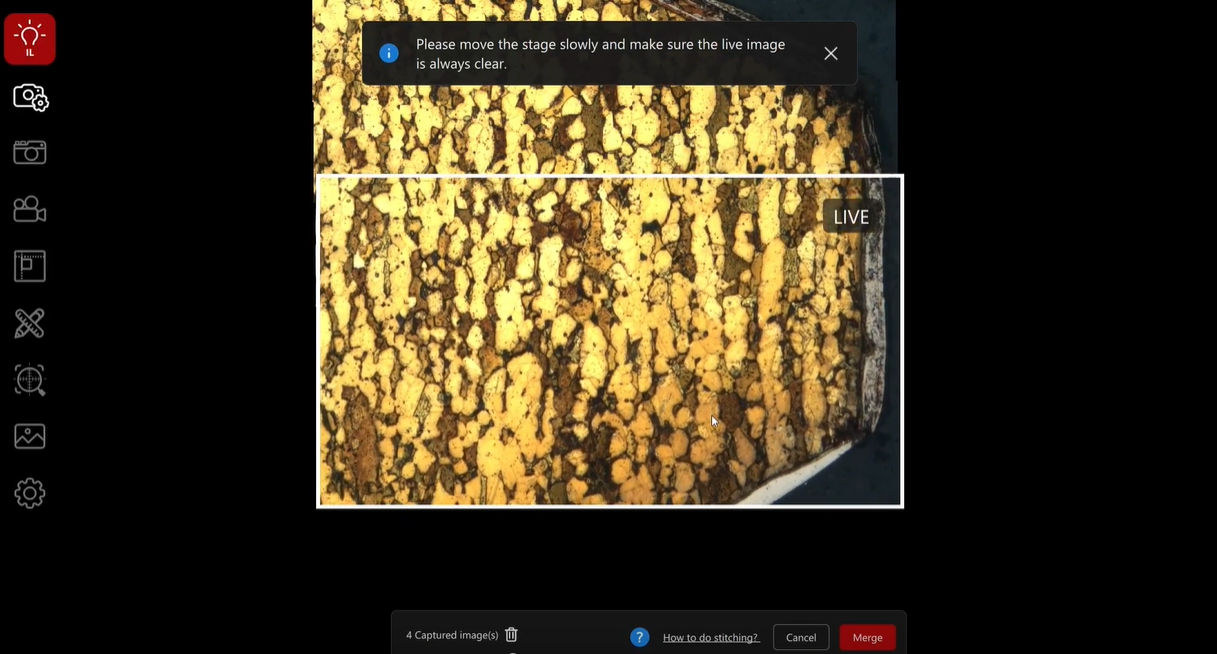

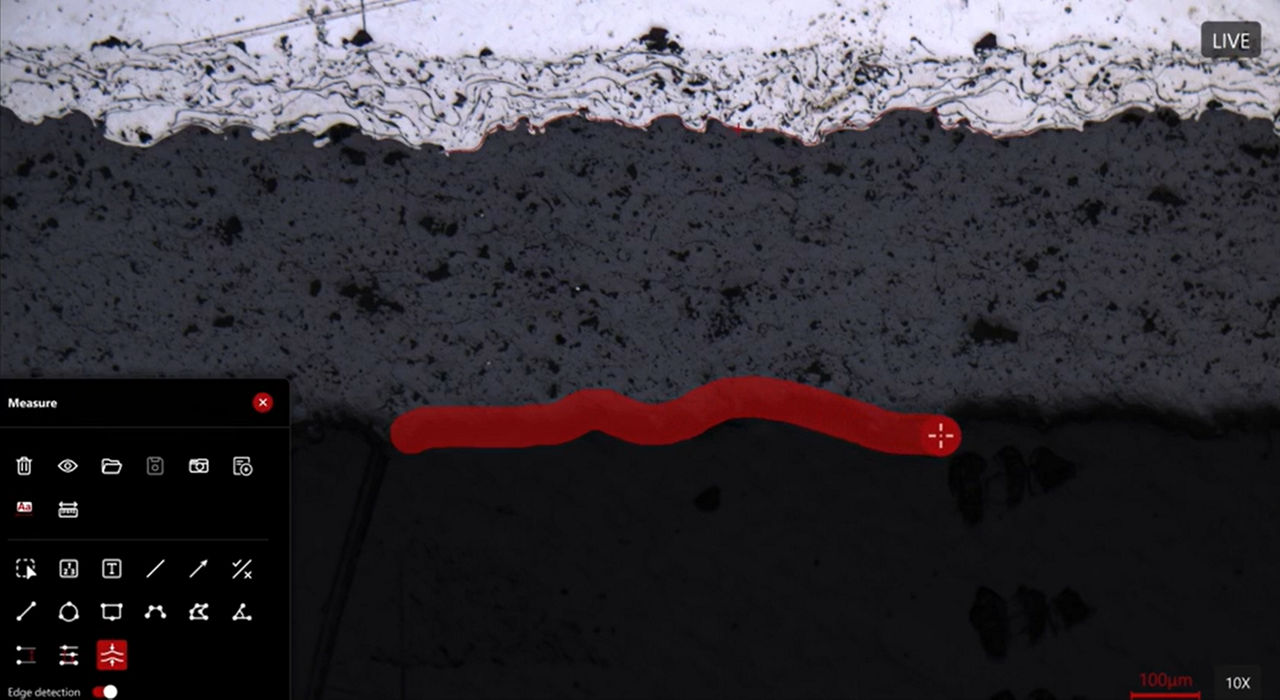

- 10” screen / tablet with Enersight microscope software (Desktop)
- Flexacam i5 microscope camera, incl. power supply
- High-power white LED
- Incident light axis, 4-position
- Contrast methods (incident light): Brightfield, darkfield, oblique illumination
- Encoded nosepiece, 5x
- Objectives (N PLAN EPI): 5x, 10x, 20x, 50x, 100x

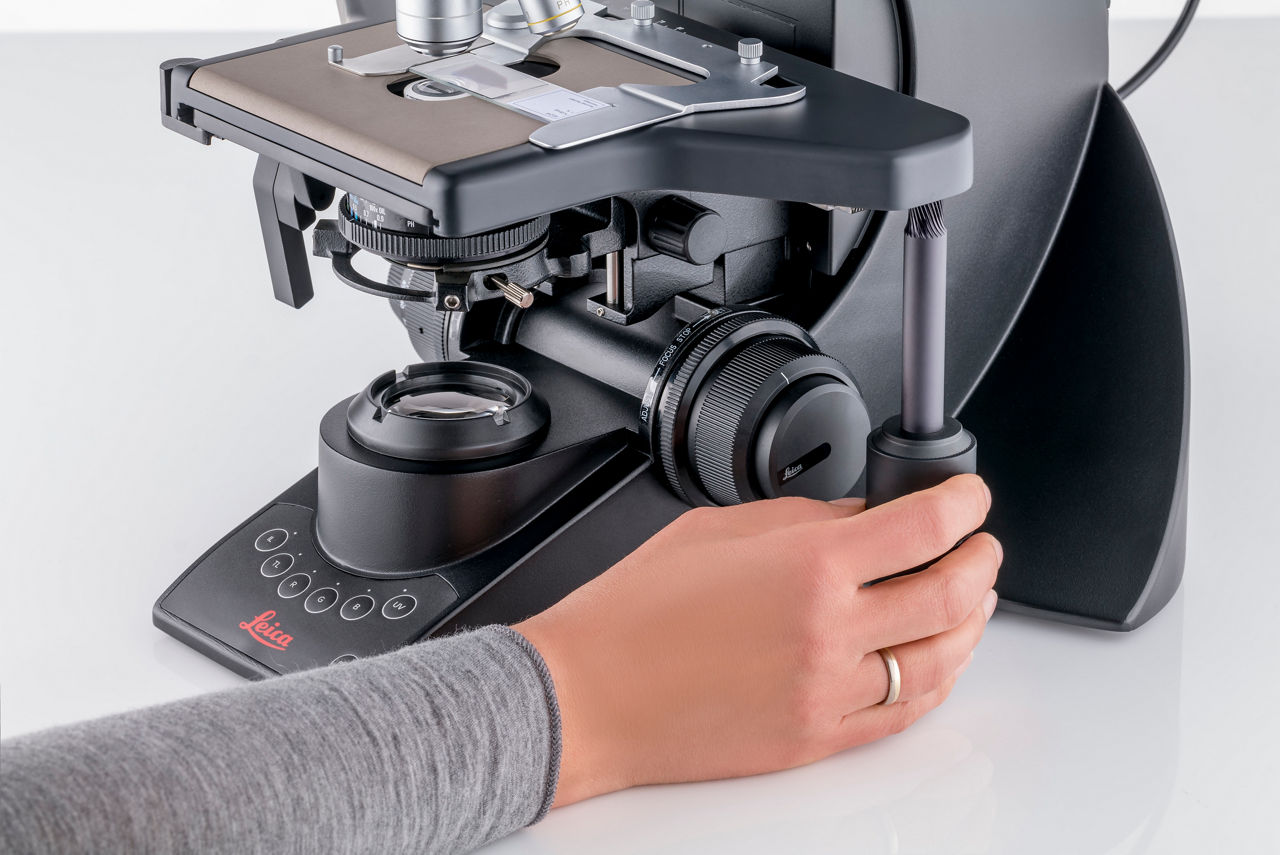

- Manual XY-stage (76 x 50 mm)

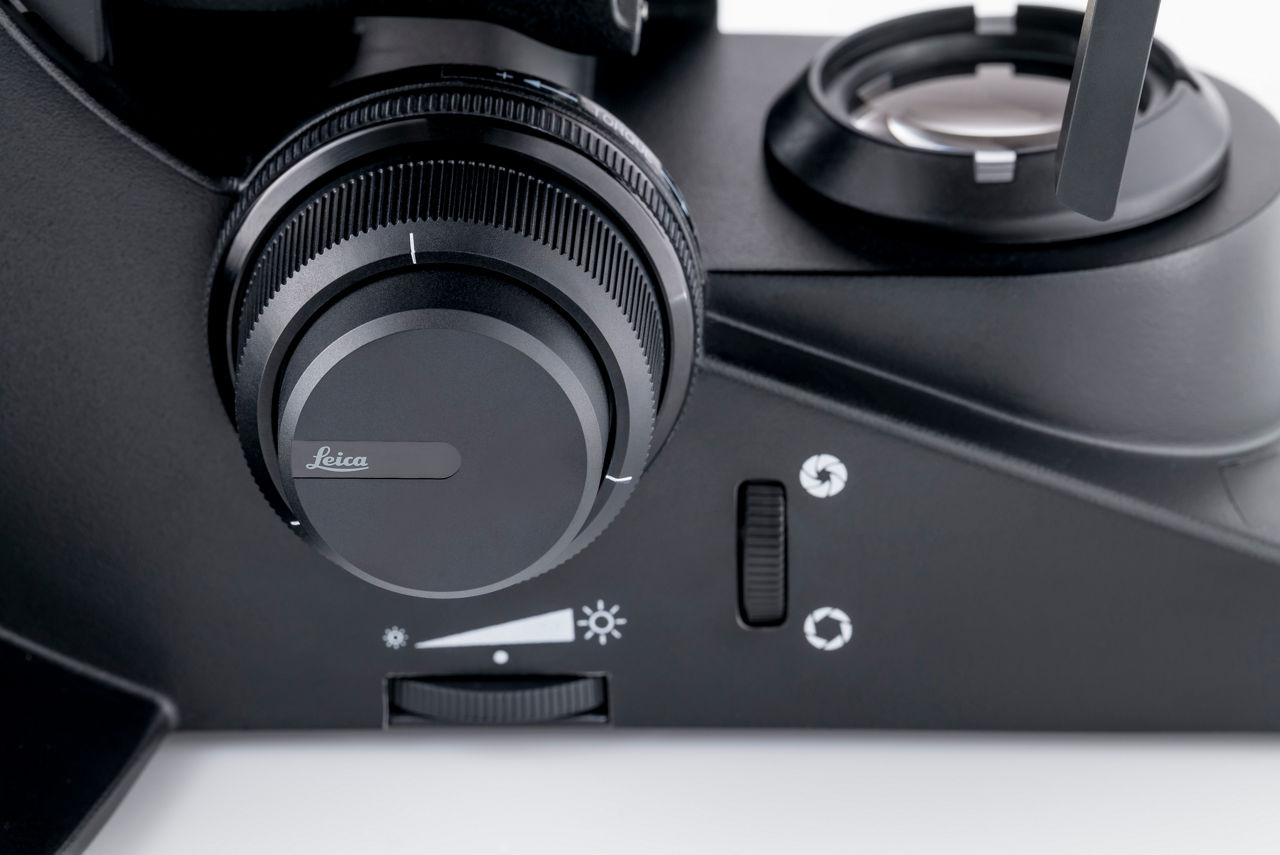

- 3-step focus drive with height-adjustable focus knobs
- Dust protection cover
- Quick start guide and user manual
Visoria M Materials Microscope
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria M materials microscope is for applications performed in the metal, electronics, and polymer industries as well as for materials science labs.
