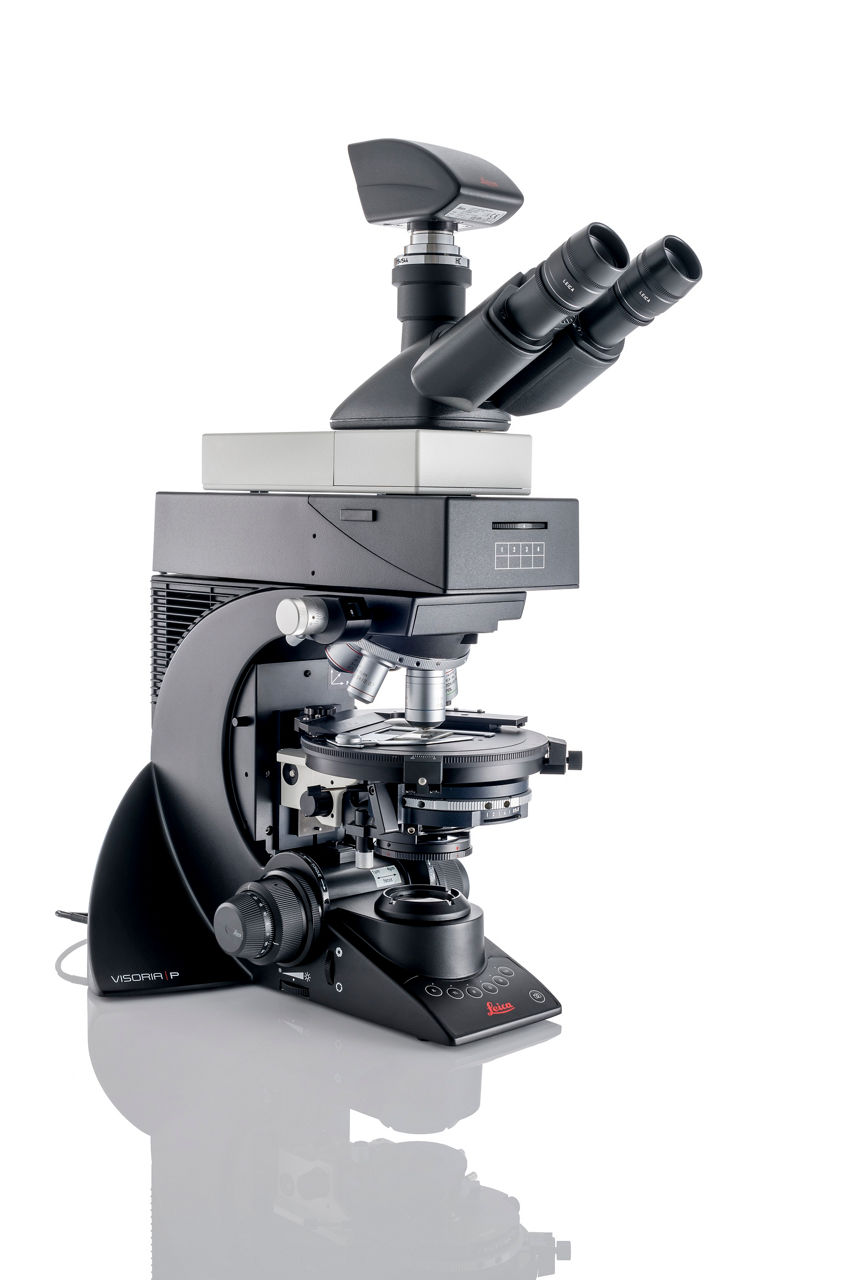

Visoria P Polarization Microscope for Geosciences Including Conoscopy with Flexacam c5
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria P polarization microscope uses polarized light to study the optical properties of materials and geological samples. Streamline your workflows with encoded functions, optimized light settings, and other microscope features. You can also be more comfortable and minimize strain thanks to the microscope’s ergonomic design.
Loading...
Components
Visoria P Polarization Microscope for Geosciences Including Conoscopy with Flexacam c5 includes: |
Quantity |
|
|---|---|---|
 |
11555083-leica11555083 |
1 |
|
C-Mount HC 0.55x11541544 |
1 |
|
Flexacam c512730535 |
1 |
|
Visoria P11561615 |
1 |
|
Focus drive 3-step11561605 |
1 |
|
Ground plate11561609 |
1 |
|
Lamp housing LH113 LED11504199 |
1 |
|
Focus knobs for Visoria11561608 |
1 |
|
Tube HC L1TP 4/5/7, binoc. phototube11551506 |
1 |
|
11557807-leica11557807 |
1 |
|
Eyepiece HC PLAN s 10x/22 Br. M11507820 |
1 |
|
Pol rotating stage 45° with clamp11551079 |
1 |
|
Object Guide without Point Counting13613661 |
1 |
|
Analyzer360°, 30x5 with grey filter11555080 |
1 |
|
Condenser achr.-apl. A 0.9 (P), CC11501183 |
1 |
|
Polarizer L ICT/P11555034 |
1 |
|
Whole-wave plate f. compensator slot11553388 |
1 |
|
Dust cover DML/2000/2500/3000 Fluo/Photo11501074 |
1 |
|
Microscope Objective N PLAN 63x/0,80 POL11556056 |
1 |
|
Microscope Objective N PLAN EPI 5x/0,12 POL11556075 |
1 |
|
Microscope Objective N PLAN EPI 10x/0,25 POL11556517 |
1 |
|
Microscope Objective N PLAN 20x/0,40 POL11556083 |
1 |
|
Microscope Objective N PLAN 40x/0,65 POL11556084 |
1 |
- Visoria P Polarization microscope with illumination management
- Binocular phototube
- Two eyepieces (10x), field of view 22 mm, thereof one with cross hair reticule
- Flexacam c5 microscope camera, incl. c-mount 0.55x
- High-power white LED
- Contrast methods (transmitted light): Quantitative polarization, Brightfield
- Encoded nosepiece, 5x
- Objectives (N PLAN POL): 5x, 10x, 20x, 40x, 63x
- 360° rotatable polarization stage with verniers, 45° clickstop position and brake Object guide without point counting
- 360° analyzer, Polarizer, Whole-wave plate f. compensator slot
- Bertrand lens cube
- 3-step focus drive with height-adjustable focus knobs
- Enersight microscope software
- Dust protection cover
- Quick start guide and user manual
Visoria P Polarization Microscope
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria P polarization microscope uses polarized light to study the optical properties of materials and geological samples.
