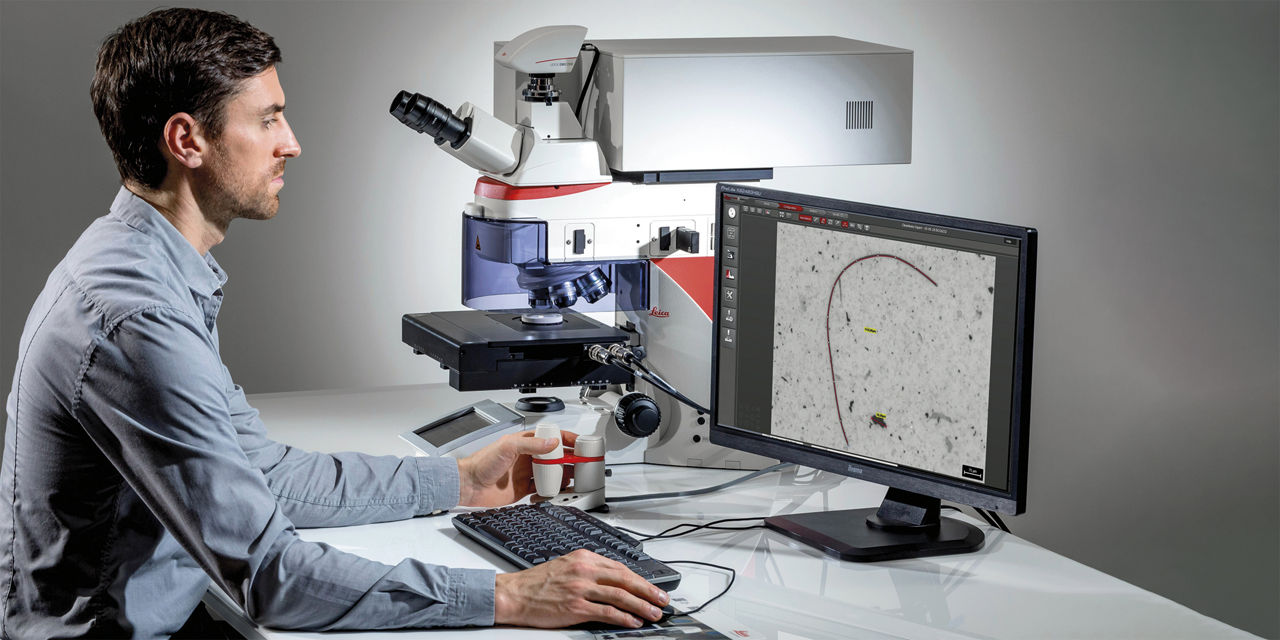

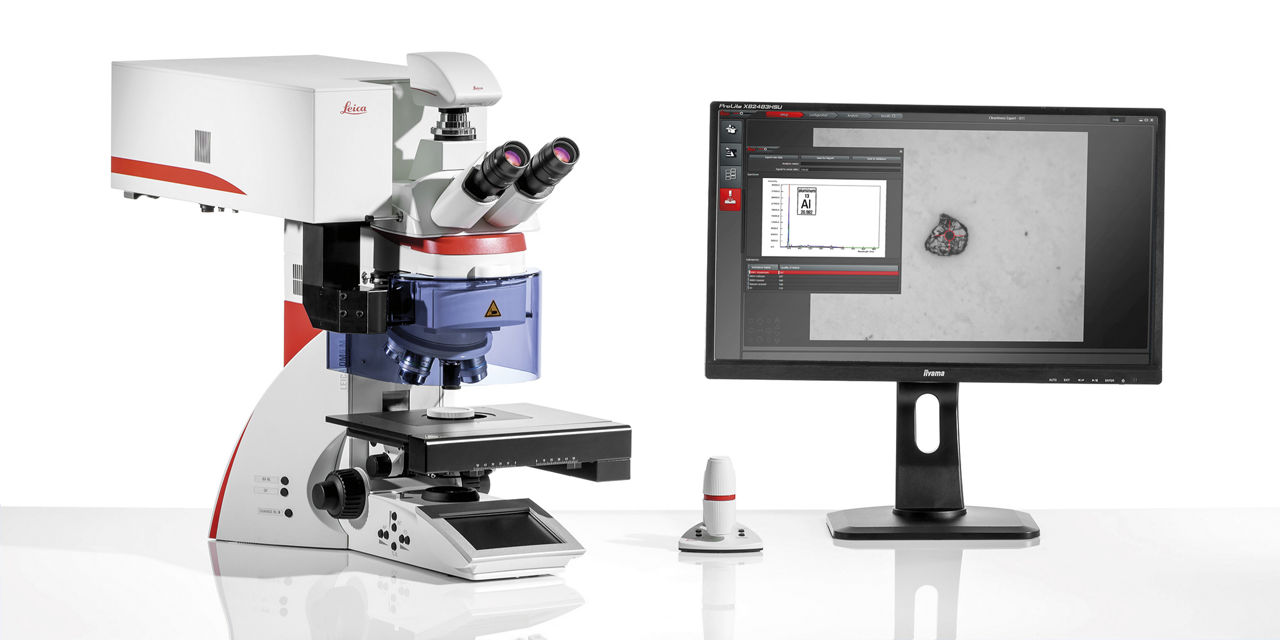

DM6 M LIBS Material Analysis Microscope
Use the DM6M fully motorized inspection microscope with all contrasting modes and benefit from the huge magnification range starting at 1.25x for fast sample overview. The light and contast manager adjusts the required settings for each objective and contrast mode fully automatically and so allows easy operation for each user. By the possibility of an instantaneous chemical analysis by laser induced breakdown spectroscopy (LIBS) the user gets all required information direct and on the spot within seconds without the need of further sample preparation or transportation to other devices.
Loading...
Components
DM6 M LIBS Material Analysis Microscope includes: |
Quantity |
|
|---|---|---|
 |
Reflector DF DM8000/DM1200011888740 |
1 |
|
Reflector BF, fixed11888716 |
1 |
|
CTR compact XY11525227 |
1 |
|
LED lamp housing DM6, cable long11504242 |
1 |
|
Eyepiece HC PLAN s 10x/25 Br. M11507808 |
2 |
 |
Microscope Objective HC PL FLUOTAR 5x/0,15 BD11566046 |
1 |
 |
Microscope Objective HC PL FLUOTAR 10x/0,30 BD11566503 |
1 |
 |
Microscope Objective HC PL FLUOTAR 20x/0,45 BD11566509 |
1 |
 |
Microscope Objective HC PL FLUOTAR 50x/0,80 BD11566201 |
1 |
|
Microscope Objective HC PL FLUOTAR 100x/0,90 BD11566203 |
1 |
|
LIBS standard sample11560204 |
1 |
|
SpectralTools licence11560205 |
1 |
|
LIBS module, complete11560200 |
1 |
|
LIBS reflector cube11561105 |
1 |
|
Microscope Objective 20x/0.40 LIBS NUV11518149 |
1 |
|
Eingriffschutz für motorischen Tisch11560201 |
1 |
|
HP E27k G5 27 UHD"11533663 |
1 |
|
Silver Workstation11640714 |
1 |
|
DM6 M basic stand, LED RL, mot. Z11889191 |
1 |
|
DM6 M Top,6x,M32,mot.,4x (RL,BD), mot.11889213 |
1 |
|
Cover objective revolving nosepiece11888105 |
1 |
|
Adapter XY-basic / XY-advanced11505237 |
1 |
|
Smart Move for DM/DMI Series11505180 |
1 |
|
Objective protection glass11518150 |
1 |
|
Basic docu tube BDT, mech., 19 CIP11505296 |
1 |
|
Tube adapter incl. 1 docu. port11505161 |
1 |
|
Mot. Stage EK14, 76x50 (LIBS)11560202 |
1 |
|
Slide holder IND11561053 |
1 |
|
Spacer ring 32/2511561097 |
1 |
Leica K3C11547114 |
1 | |
|
C-Mount HC 0.55x11541544 |
1 |
|
LAS X Industry Core11640620 |
1 |
|
Dongle for LAS X optional modules11640879 |
1 |
|
LAS X Quantimet Basic SW Package11640605 |
1 |
|
Keyboard UK; USB Hub11600221 |
1 |
|
Advanced application training one day9I_CM_APPLIC1 |
1 |
|
Service Installation9I_CM_CLASS_H |
1 |
>Specifications
- Including Light Manager for a time saving and easy operation.
- For a very fast overview on the sample the 1.25x objective can be adapted.
- The integrated Contrast Manager adjusts the required settings for each objective and contrast mode fully automatically and so allows easy operation for each user.
- 27“ 4k HDMI Monitor
- W2 Workstation (for imaging with xyz-motorized Microscopes)
- Motorized Z-drive
- With magnification changer
- Phototube HC L2TU 4/5/6
- Motorized objective turret
- With DF contrast
- Automated (motorized + scanning)
- Scanning stage 100x100 (2mm)
- Metal insert 160x116
- LIBS standard sample
