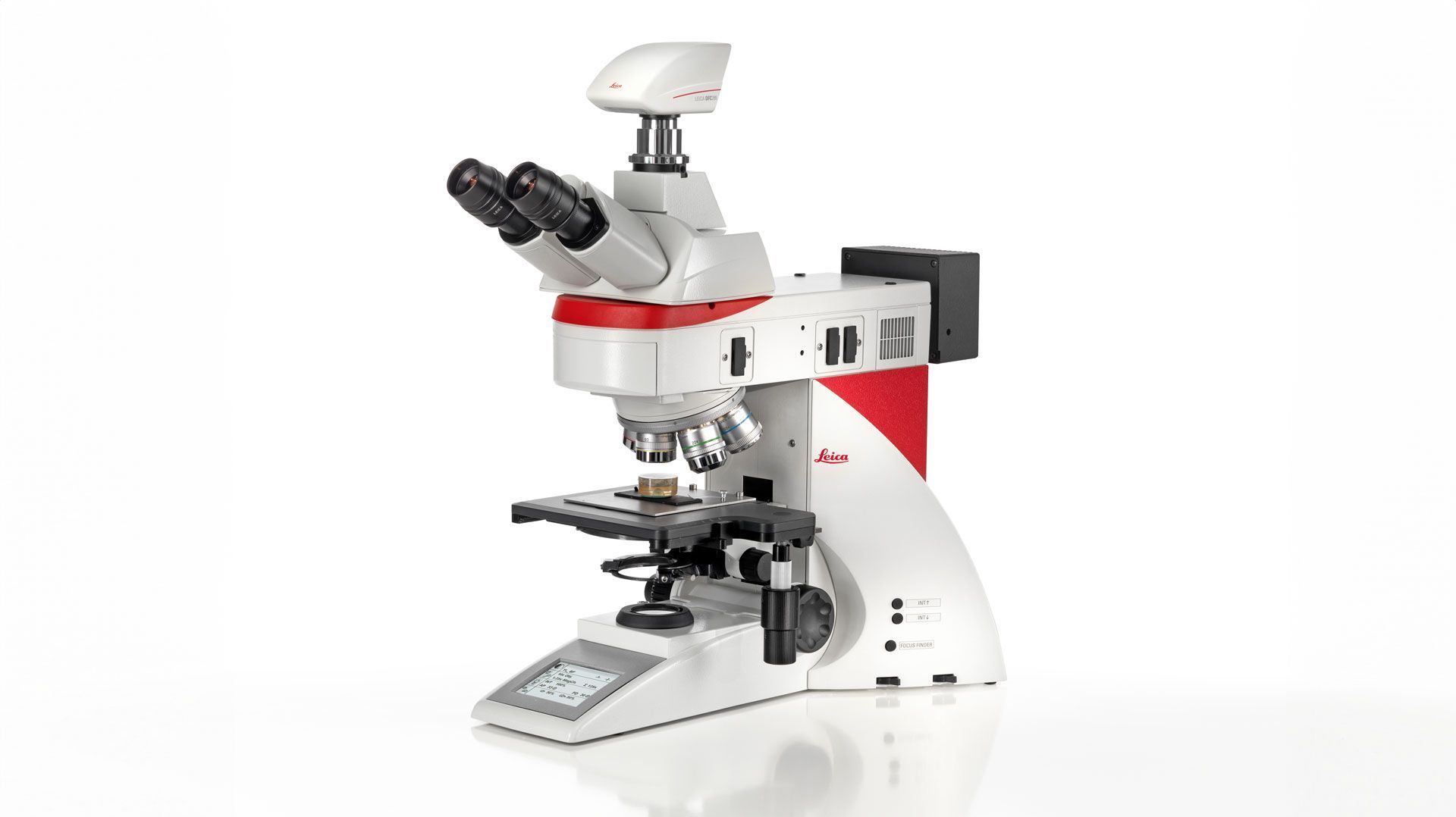

DM6 M Metallographic Microscope
Meet the DM6 M – a pinnacle in optical precision. This advanced light microscope combines ergonomic design with high-resolution imaging, providing versatile applications in various fields. Built with Leica's renowned craftsmanship, the DM6 M offers durability and stability. Explore the microscopic world with ease and precision, as cutting-edge technology meets user-centric design in this indispensable scientific tool.
Loading...
Get free shippingIn the US
Online ordersNow available
Key Benefits
- Microscope for fully automated materials analysis
- Inspection system for highest accuracy and reproducibility
- Motorized high precision 2-gear focus drive & motorized 6-fold or 7-fold objective nosepiece
Components
DM6 M Metallographic Microscope includes: |
Quantity |
|
|---|---|---|
 |
DM6 M basic stand, RL/TL, LED, mot. Z11889193 |
1 |
|
Dust cover for DM4/611505168 |
1 |
|
Bodenplatte mit Filtermagazin11888100 |
1 |
|
Reflector BF, fixed11888716 |
1 |
|
Smart Move l²C11525232 |
1 |
|
Magnification changer IND 1/1.5/2x, cod.11888789 |
1 |
|
Reflector DF DM8000/DM1200011888740 |
1 |
|
CTR compact XY11525227 |
1 |
|
LED lamp housing DM6, cable long11504242 |
1 |
|
Tube HC L2TU 4/5/7, binoc. phototube11501598 |
1 |
|
Eyepiece HC PLAN s 10x/25 Br. M11507808 |
2 |
|
Stage insert 160x116x7mm11532701 |
1 |
|
Universal MSH 2x2 for Metallography11533111 |
1 |
|
Stage Insert for MSH(1x) on DM4-6 M11533110 |
1 |
|
Glass plate 160x116x3mm; for industrial11600183 |
1 |
|
Scanning stage mot., DM4-6, 100x100,2mm11501260 |
1 |
|
Metal insert 160x116 f.Scan.-St.100x8011532502 |
1 |
|
Cable scanningstage, XY-adv. Board11525218 |
1 |
|
Condenser BF11505141 |
1 |
|
Condenser head achr. 0.50 S1511501037 |
1 |
 |
Microscope Objective HC PL FLUOTAR 5x/0,15 BD11566046 |
1 |
 |
Microscope Objective HC PL FLUOTAR 10x/0,30 BD11566503 |
1 |
 |
Microscope Objective HC PL FLUOTAR 20x/0,45 BD11566509 |
1 |
 |
Microscope Objective HC PL FLUOTAR 50x/0,80 BD11566201 |
1 |
|
Microscope Objective HC PL FLUOTAR 100x/0,90 BD11566203 |
1 |
|

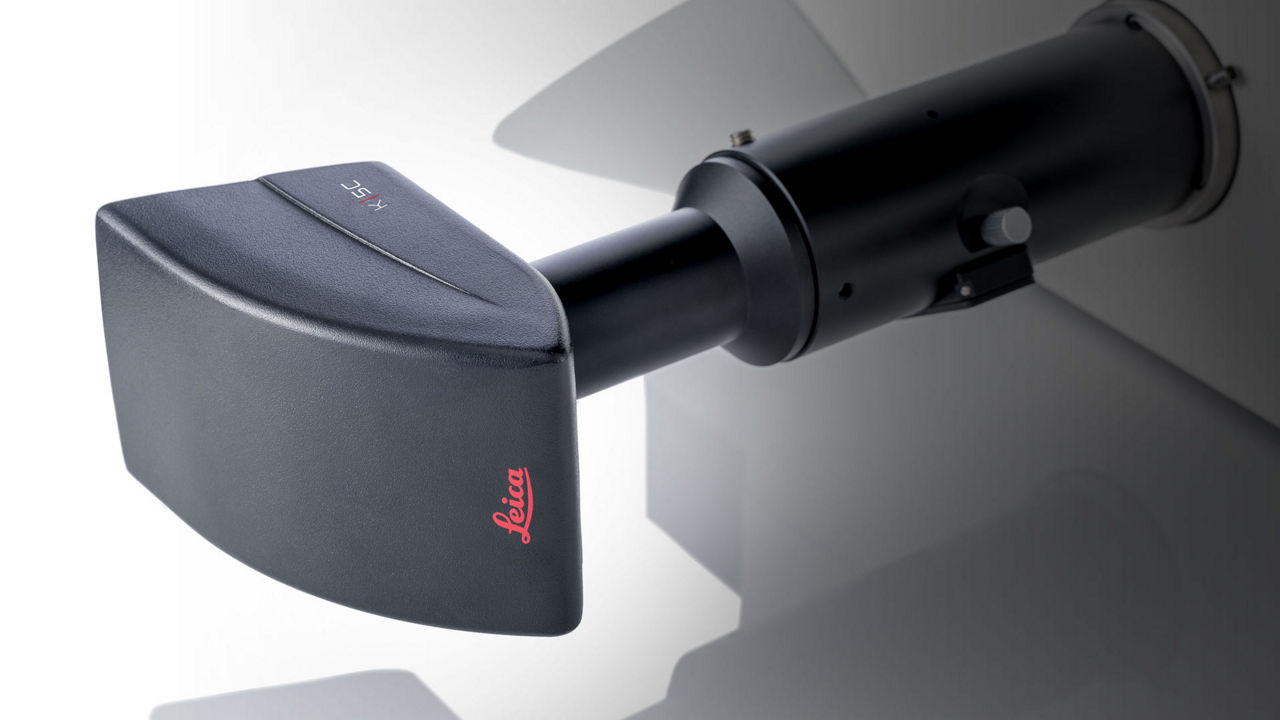

Leica K5C Camera11547118 |
1 |
|
C-Mount adapter 1x HC f. 1"11541510 |
1 |
|
HP E27k G5 27 UHD"11533663 |
1 |
|
Silver Workstation11640714 |
1 |
Specifications:
- DM6M fully motorized inspection microscope with touch screen control e.g. of all contrasting modes Brightfield (BF), Highdynamic Darkfield (HDF), Differential Interference Contrast (DIC), Polarization (POL) or Fluorescence (FL).
- Including Light Manager for a time saving and easy operation.
- For a very fast overview on the sample the 1.25x objective can be adapted.
- The integrated Contrast Manager adjusts the required settings for each objective and contrast mode fully automatically and so allows easy operation for each user.
- 27“ 4k HDMI Monitor
- W2 Workstation (for imaging with xyz motorized Microscopes)
- Motorized Z drive
- With magnification changer
- Phototube HC L2TU 4/5/6
- Motorized objective turret
- With DF contrast
- Automated (motorized + scanning)
- Scanning stage 100x100 (2mm)
- Metal insert 160x116
Leica DM4 M & DM6 M Upright Materials Microscopes
Do you need to image, measure, and analyze similar features across many samples and materials science and analysis? The Leica DM4 M and Leica DM6 M are the Industrial Microscopes for you, whether microscopy novice or professional.
You can easily recall previous microscope settings and instantly reproduce imaging parameters with the unique Store and Recall software functions. For every sample type.
